1KN Desktop Plastic and Can Bottle Tester Price for Compression

1KN  desktop plastic and can bottle tester price for compression

 Contact : Sunny   Whatsapp/Tel/Line: +86-15589960023  Skype: jessica-hssd

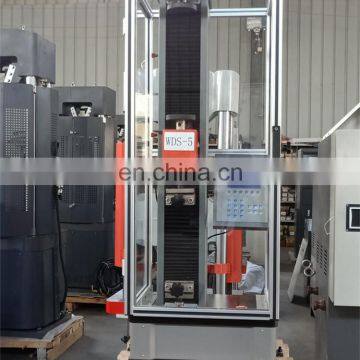

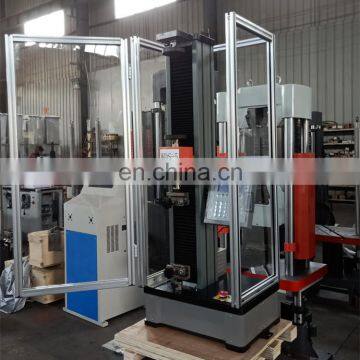

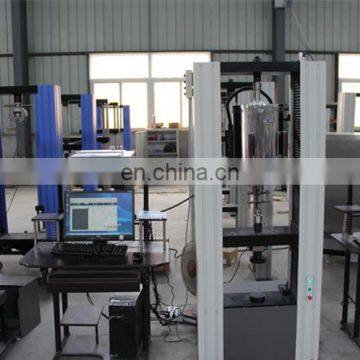

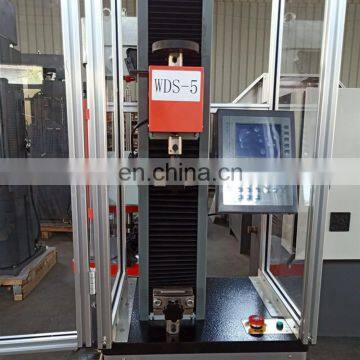

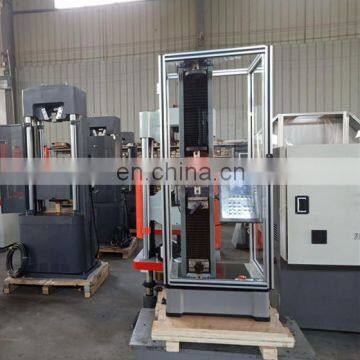

WDS Series Digital Display Material Tensile Testing Machine/Paper Tensile Tester are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .

2.Main Specifications:

3.  Feature:

       3.1 Automatic stop: After the sample broken, automatic stop.

       3. 2 Display: Real-time display testing force, displacement, testing speed, peak value, testing                status on one LCD.

       3.3 Automatic return: automatic return to initial position when testing finished.

       3.4. Limiting protection: Program control and Mechanical limiting protection.

       3.5 High accuracy photoelectric encoder to measure the displacement

       3.6 High accuracy load cell to measure the test load

       3.7 Ball screw no backlash to guarantee the low noise and high driving efficiency

       3.8 High accuracy servo motor to control test speed

       3.9 Adopt reliable, durable and high accuracy digital electronic device

       3.10 Can built-in multiple load sensor control channel

       3.11 Thousands of test fixture can be used according to different test request

       3.12 Micro printer optional, can realize testing data print

 4.Configurations:

4.1 High strength main unit----1 set

4.2 High precision arc synchronous deceleration system----1 suit

4.3 High precision ball ---2 pcs

4.4 Tensile fixture---1 pc

4.5 Measurement control system--1 suit

4.6 High accuracy photoelectric encoder----1 pc

4.7 Digital speed regulating Control system--1 set

4.8 Servo motor and Control system--1 set

4.9 High precision load sensor----1 pc

4.10 Lenovo computer---1 set

4.11 HS-max test software--1 suit
