Product Details
| Brand Name | HST | Place of Origin | Shandong, China | |
| Model Number | WDW-G | Power | Electronic |
Product Description

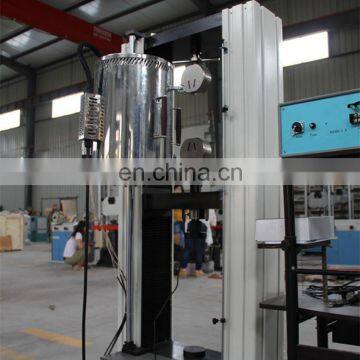

WDW-G Computerized Electronic High Temperature Tensile Creeping Testing Machine
ALI: cn1510988092 Mobile/Whatsapp: +86-15866781190 Skype:hstbetty009
WDW-30/ WDW-50 30KN / 50KN Computer Control Electronic Universal Testing Machine Machine
1. Application:
WDW series computerized electronic universal testing machines are designed and manufacture
according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Main Specifications:
Model | WDW-30 | WDW-30E | WDW-50 | WDW-50E |
Max. Load(kN) | 30 | 30 | 50 | 50 |
Load accuracy | Class 1 | Class 0.5 | Class 1 | Class 0.5 |
Load range | 2%~100%F·S | 0.2%~100%F·S | 2%~100%F·S | 0.2%~100%F·S |
Load resolution | 1/300000 | |||
Resolution of deformation | 0.04um | |||
Accuracy of displacement | Within±0.5%of indicating load | |||
Resolution of displacement | 0.01mm | |||
Test speed(mm/min) | 0.05-500 stepless arbitrary setting | |||
within ±1% / ±0.5% of set speed | ||||
E-Tensile space(mm) | 700 (can be customized) | |||
E-Compression space(mm) | 700 (can be customized) | |||
D-Test width(mm) | 500 (can be customized) | |||
F-Beam travel distance(mm) | 1050 | |||
H-Workbench thickness(mm) | 58 | |||
I-Base height(mm) | 435 | |||
Power supply | AC220V±10%,50Hz/60Hz (can be customized) | |||
