Product Details
| Brand Name | March | Place of Origin | China | |
| Model Number | 56DJ |
Product Description
March overhead crane 4 Poles copper Enclosed Conductor Bar
HFP56 Enclosed Conductor Bar Specification
| Type | Poles | Conductor crosssection (mm2) | MAX Current (A) | MAX Voltage(V) | Weight (kg) |
| MCCB56-4-8/35 | 4 | 8 | 35 | 600 | 2.09 |
| MCCB56-4-10/50 | 10 | 50 | 2.16 | ||
| MCCB56-4-12/65 | 12 | 65 | 2.23 | ||
| MCCB56-4-15/80 | 15 | 80 | 2.30 | ||
| MCCB56-4-20/100 | 20 | 100 | 2.43 | ||
| MCCB56-4-25/120 | 25 | 120 | 2.56 | ||
| MCCB56-4-35/140 | 35 | 140 | 2.95 | ||
| MCCB56-4-50/170 | 50 | 170 | 3.25 | ||
| MCCB56-4-70/210 | 70 | 210 | 3.85 | ||
| MCCB56-4-80/240 | 80 | 240 | 4.16 |
Ptotection Class: IP53
Standard Legnth: 4m
Min.R=0.8M
Support Spacing:For straight runs 1.2m
| Type | Poles | Conductor crosssection (mm2) | MAX Current (A) | MAX Voltage(V) | Weight (kg) |
| MCCB56-3-10/50 | 3 | 10 | 50 | 600 | 1.95 |
| MCCB56-3-15/80 | 15 | 80 | 2.13 | ||
| MCCB56-3-20/100 | 20 | 100 | 2.24 | ||
| MCCB56-3-25/120 | 25 | 120 | 2.37 | ||
| MCCB56-3-35/140 | 35 | 140 | 2.63 | ||
| MCCB56-3-50/170 | 50 | 170 | 3.02 |
Ptotection Class: IP43
Standard Legnth: 4m
Min.R=0.8M
Support Spacing:For straight runs 1.2m
The HFP56 systemx is suitable especially for overhead and elongated tracks for cranes ,monorails ,electric hoists,electic tools stacking systems ,
as well as many other applications for supplying power to moving power loads.
HFP56 systems is a power rail ,protected from contact (IP24) for indoor and outdoor plants .
They are conductor lines in a rigid green PVC housing with different copper crass sections for rated current of 35A—170A
The current collectors ,running in ball bearing ,are guided by the housing
The main is transferred by spring-stored carbon brushes .

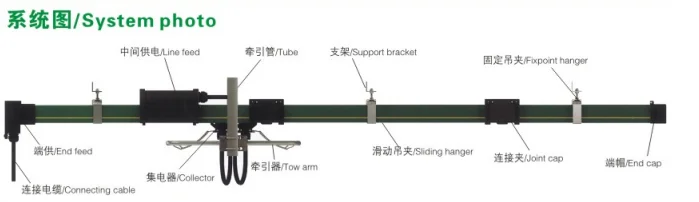

March overhead crane conductor rail current collector
March overhead crane 4 Poles copper Enclosed Conductor Bar spare parts

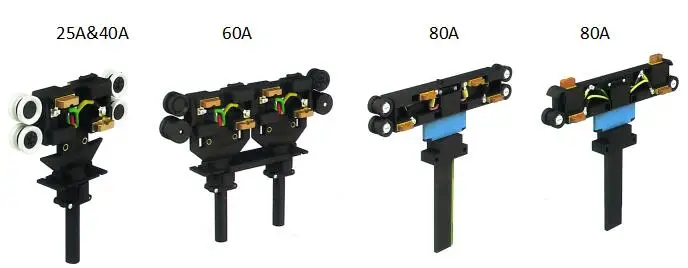

1. Current collector
| Type | Weight(KG) | Poles | Power Rating(V) | Order No |
| 56JD-4/25 | 0.49 | 4 | 25A | 561001 |
| 56JD-4/40 | 0.52 | 40A | 561002 | |
| 56JD-4/60 | 0.99 | 60A | 561003 | |
| 56JD-4/80 | 1.23 | 80A | 561004 | |
| 56JD-4/40 | 0.85 | 3 | 80A | 561005 |
Note: Collector 25A is for 35A-50A ,Collector 40A is for 65A-120A ,Collector 80A is for 140A-240A
Connecting Cable : 0.8m /1m
Max Speed:150m/min
With sealing strip speed:100m/min

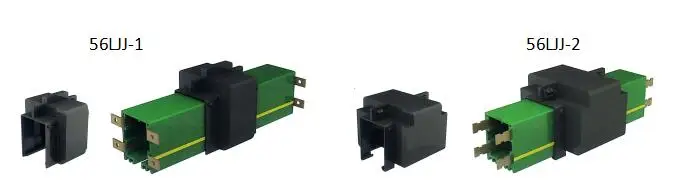

2. Jointing box
| Type | Weight(kg) | Material | Order-No |
| 56LJJ-1 | 0.091 | ABS | 562001 |
| 56LJJ-2 | 0.156 | ABS | 562002 |
Self Locking , and installed is very easy

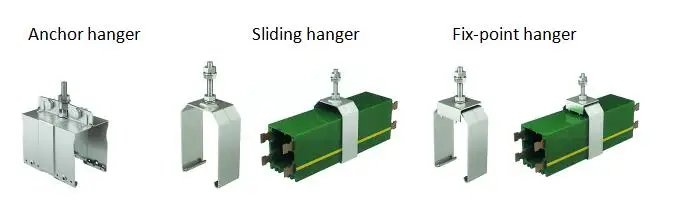

3.Hanger (Anchor hanger, Sliding hanger, Fixpoint hanger)
| Type | Weight (kg) | Material | Order-No |
| 56DWJ-1 | 0.251 | Galvanized steel | 562003 |
| 56DJ-1 | 0.186 | Galvanized steel | 562004 |
| 56DJ-2 | 0.212 | Galvanized steel | 562005 |

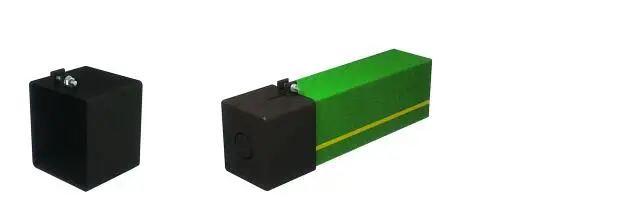

4.End cap
| Type | Weight(kg) | Material | Order-No |
| 56DW | 0.071 | ABS | 563007 |

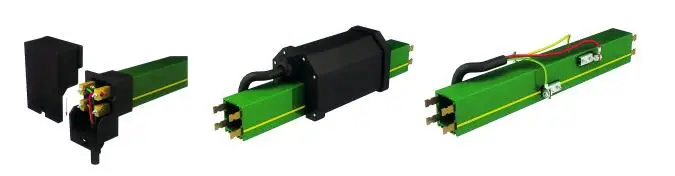

5.End feed and Middle feeding
| Type | Weight(kg) | Material | Order-No |
| 56DG | 0.225 | ABS | 563008 |
| 56ZG/500-X/M | 565001 |
Middle feeding with 0.5Meter powerail

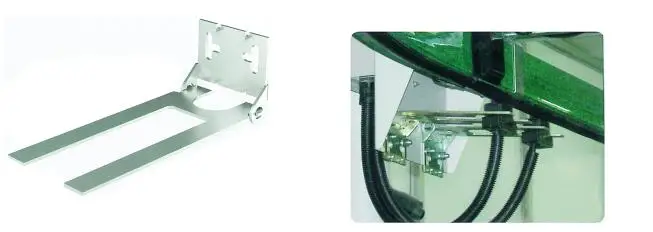

6.Tow Arm
| Type | Weight(kg) | Material | Order-No |
| 56QYQ-1 | 0.53 | Galvanized steel | 566004 |

March overhead crane 4 Poles copper Enclosed Conductor Bar

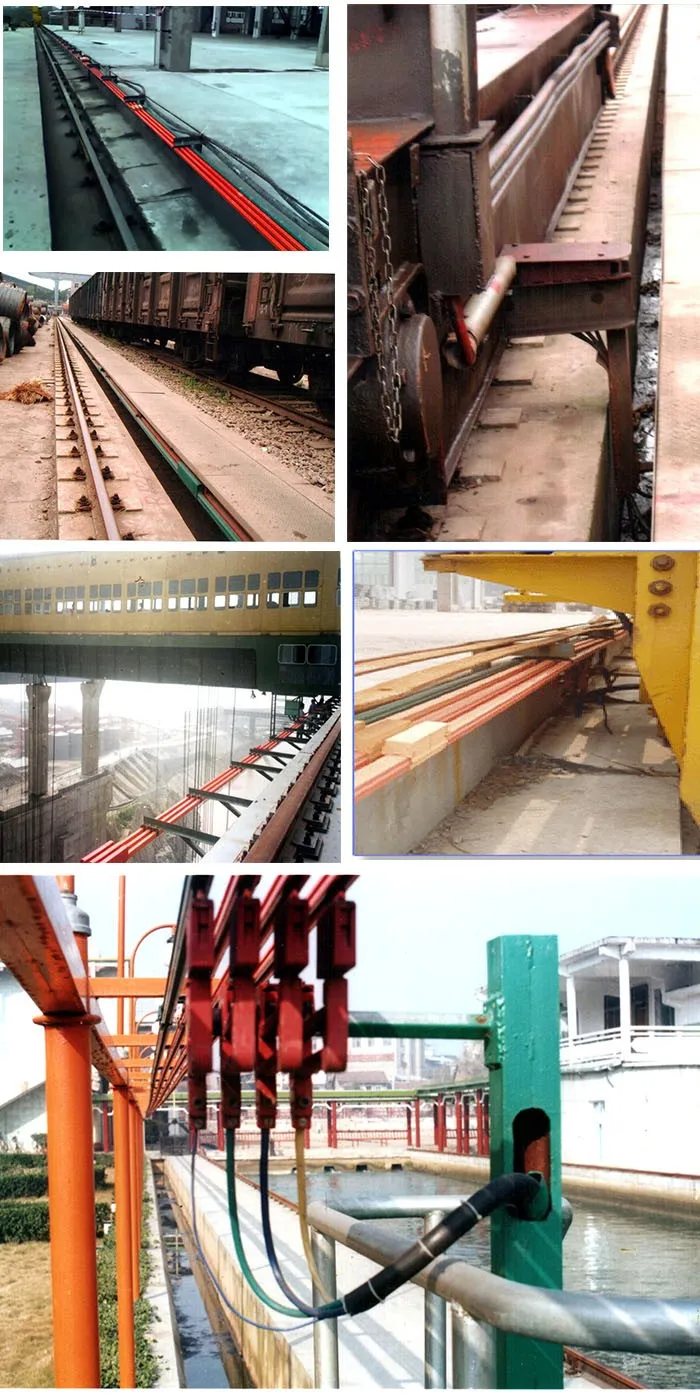

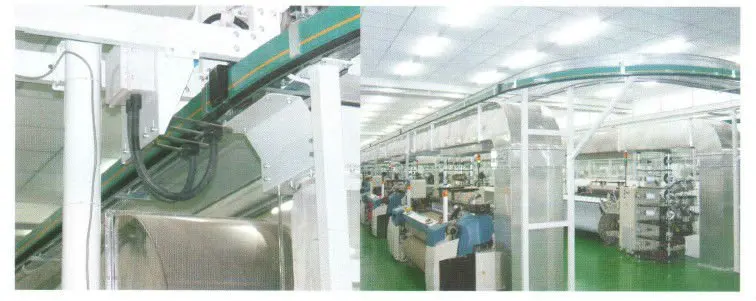

Application project ---Feedback from Customer


1. Are you a trading company or factory?
We're factory. We maufacture products ourself and we source from other collaborative factories too which guarantees a competitve price and product variety.
2. How do I know your quality.
High solution detailed photos and free sample will be able to verify our quality.
3. Can I get a sample first? And how does it charge?
Yes, free sample is available with freight collect or prepaid.
4. What's the benefit for long term importers or distributors?
For those regular customers, we offer incredible discount, sample free shipping, free sample for custom design, custom packaging and QC as per custom requirements.
5. Can you make products from our designs?
Yes, we do OEM and OBM.
6. How do I make payment?
We received paypal western union and directly bank transfer to our company account. If above are all unavailable, we will issue you a paypal invoice and you simply pay by credit card.
