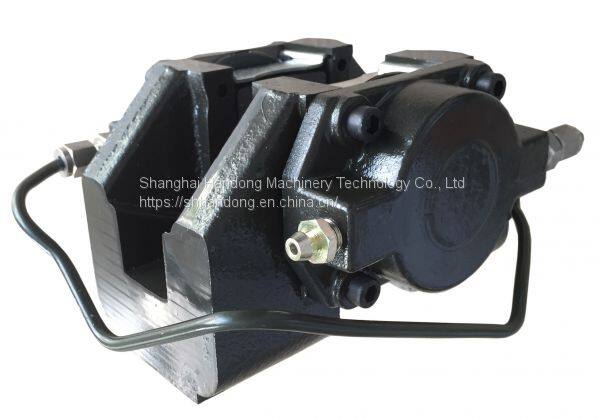

Handong Made DBM High Torque Oil Caliper Disc Brake

Handong made DBM High torque oil caliper disc brake

DBM hydraulic caliper disc brake is usually cooperated with BST air oil transformer. BST hydraulic booster can help enhance brake's braking force in twice or quadruple. This DBM hydraulic brake take DOT3 and DOT4 as power source. Because these oil with low viscosity, high sensitivity, so brake open and close will be faster.

Handong company is a professional manufacturer of brake, we pay attension to each details. Some components of this brake are imported with good quality, what we made is to satisfy each customer's requirement.

DBM oil hydraulic caliper disc brake is mainly power by brake oil, and can also power by air-actuated matched with hydraulic booster, and it have 2 type, right and left. Please indicated right or left before give our order. The ordinary brakes fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please informed us in advance.

Remark: BST hydraulic booster is mainly power by air pressure and boost air pressure for oil output.

DBM hydraulic caliper disc brake is a kind of caliper disc brake, it is driven by oil pressure. It has two types, right "R" and left "L". So when you order this product, please indicate which type you need in advance. DBM10R, DBM20R means the oil source is input through right side, DBM10L, DBM20L means the oil source is input through left side. DBM10 is suitable for clamping steel disk thickness 10mm, and DBM20 is suitable for clamping steel disk thickness 20mm.

From above technical data we can understand that size of DBM10 and DBM20 is very similar, mainly difference is their clamping steel disk thickness. DBM10 is suitable for 10mm, and DBM20 is suitable for 20mm.

On the other hand, DBM brake's braking force is varied as braking disc diameter. When braking disc diameter larger, its braking force is large, too. For example, when braking disc diameter is 260mm, DBM10 and DBM20 brakes' braking power is 800N.m. When braking disc diameter is 350mm, their braking force is 1100N.m.

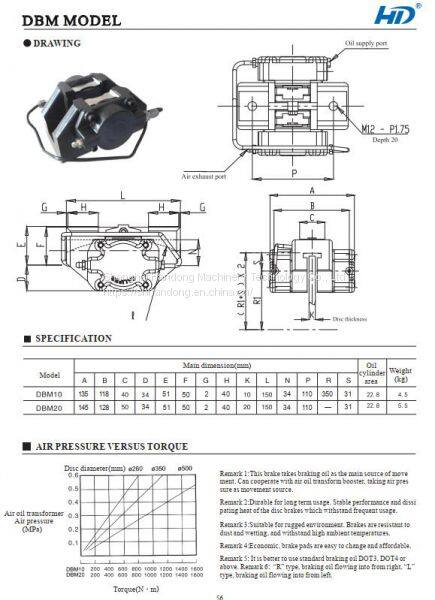

Following is the technical data of this hydraulic caliper disc brake:

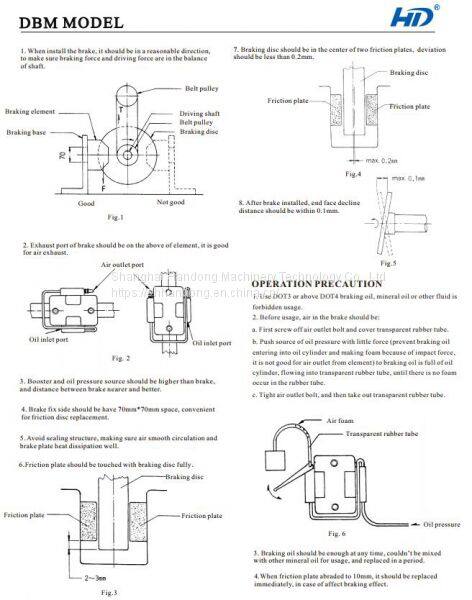

For this hydraulic caliper disc brake, it is easy installation. But there are some points should be pay attention to, especial its air exhausting firstly. Below is some instruction of it for your reference:

This kind of hydraulic caliper disc brake is widely matched with BST hydraulic booster, they are usually used, such as amusement park ride, building construction machine, centrifugal machine, canning machine, cranes, electrical equipment, flood gate water treatment, iron making machine, machine tool, wind/hydraulic force machine, paper processing machine, power machine, rubber machine, railway car, wire rod machine, automatic labor-saving machine, common trolley, chemical machine, conveyor, elevator, textile machine, environment machine, lift, elevator, automatic packaging machine, plastic machine, press machine, robot machine, vessel, vehicle, windmill and etc.

In this case, hydraulic caliper disc brake is used in tool machine for clamp steel disk plate. After inputting braking oil, brake closed to clamp steel disk brake. When exhausting braking oil into oil return device, brake released.
