XSU080258 Crossed Roller Bearing 220x295x25.4mm
US$ 10 - 300
/ Piece
2 Pieces(Min. Order)
- Shanghai
- T/T L/C PayPal Other
You May Like
-
XSU080318 Crossed Roller Bearing 280x355x25.4mm
-
XSU080398 Crossed Roller Bearing 360x435x25.4mm
-
RKS.121400202001 Crossed Roller Slewing Bearing
-
RKS.161.14.0544 Crossed Roller Bearing 474x640.8x56mm
-
RKS.160.14.0544 Crossed Roller Bearing 474x616x56mm
-
RKS.111280101002 Crossed Roller Bearing Internal Gear
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | XSU080258 | Number of Row | Single Row | |
| Seals Type | NBR | Precision Rating | raidal/axial runout 0.01mm | |
| Outside Diameter | 100, 700 | Bore Size | 40, 400 |
Product Description
Inner dia.: 220mm
Outer dia.: 295mm
Width: 25.4mm

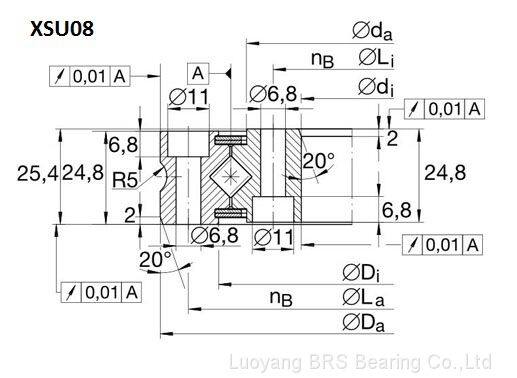

Structure: crossed cylindrical roller bearing with mounting holes, thin section slewing ring.
Material: GCr15 bearing steel/50Mn
Space retainer： Yes
Lubrication hole: Yes
Sealing: NBR seals both sides
Load direction: can take axial, radial loads and tilting moment at the same time.
Working temperature: -25℃~80℃
High stiffness and high loading capacity.
Take combined loads including adial, axial and moment loads.
Pre-load type, negative clearance, ensure bearings high rotation accuracy.
Grinding finished surface, reduce friction and extend bearings surface life.
Customized size, structure or material available.
| Model | d (mm) | D (mm) | H (mm) | Mass (kg) |
| XSU080168 | 130 | 205 | 25.4 | 3.3kg |
| XSU080188 | 150 | 225 | 25.4 | 3.7kg |
| XSU080218 | 180 | 255 | 25.4 | 4.3kg |
| XSU080258 | 220 | 295 | 25.4 | 5.1kg |
| XSU080318 | 280 | 355 | 25.4 | 6.3kg |
| XSU080398 | 360 | 435 | 25.4 | 7.8kg |
