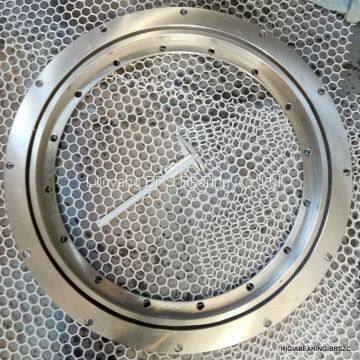

RKS.23 0841 Slewing Bearing 734x948x56mm Slewing Ring With Flange
- Shanghai Port
- T/T L/C
- 60 days
You May Like
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | RKS.23 0841 | Feature | Four Point Contact | |
| Seals Type | NBR | Outside Diameter | 948, | |
| Bore Size | 734, | Gear Options | Nongeared |
Product Description
RKS.23 0841 light series slewing bearing 434x648x56mm
equivalent model: VLU200844/RK6-33P1Z/23-0841-01/230.20.0800.013
Typ 21/950.0
Inner ring dia.: 734mm
Outer ring dia.: 848mm
Mounting height: 56mm
Weight: 43kg
Structure: light series four point contact ball slewing bearing without gear, profiled inner and outer ring, with mounting holes
Materials: 50Mn
Precision grade: P5
Sealing: sealed both sides
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment
Working temperature: -20℃~80℃
RKS.23 0841 light series slewing ring can be applied to the rotary parts of mechanical equipments, vehicles and construction machinery that require light weight and light load, such as the circular scraper clarifier central drive or ladle turret.
RKS.23 light series slewing ring models
| Model No. | D (mm) | d (mm) | H (mm) | Je (mm) | Ji (mm) | Ca (kN) | Cao (kN) | Mass (kg) |
| RKS.23 0411 | 518 | 304 | 56 | 490 | 332 | 169 | 284 | 23.5 |
| RKS.23 0541 | 648 | 434 | 56 | 620 | 462 | 188 | 380 | 31 |
| RKS.23 0641 | 748 | 534 | 56 | 720 | 562 | 200 | 440 | 36.5 |
| RKS.23 0741 | 848 | 634 | 56 | 820 | 662 | 211 | 524 | 43 |
| RKS.23 0841 | 948 | 734 | 56 | 920 | 762 | 222 | 580 | 48 |
| RKS.23 0941 | 1048 | 834 | 56 | 1020 | 862 | 231 | 664 | 54 |
| RKS.23 1091 | 1198 | 984 | 56 | 1170 | 1012 | 244 | 766 | 62 |
Customized size & structure available.
