Home > Products > Slewing bearings > MTO-122 slewing bearing

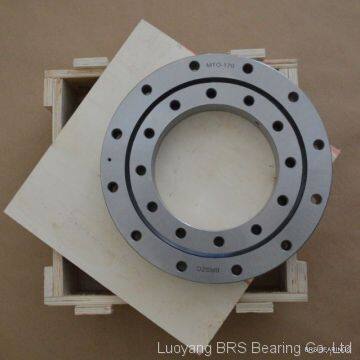

MTO-122 slewing bearing
USD $10 - $100
/ Piece
5 Pieces(Min.Order)
- 500 Piece / Pieces per Month
- shanghai
- T/T L/C PayPal
- 3 days
You May Like
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | MTO-122 | Feature | Cross Roller | |
| Seals Type | NBR, sealed both sides. | Outside Diameter | 226, | |
| Bore Size | 122, | Gear Options | Nongeared |
Product Description
Inner ring: 122mm
Outer ring: 226mm
Height: 34mm
Mounting dimensions Li: 140mm
Mounting dimensions Lo: 208mm
Weight: 6kg
Structure: four point contact ball slewing bearing without gear
Materials: 42CrMo/50Mn/customized
Lubrication type: Grease lubrication/Lubrication hole: Yes
Load direction: axial, radial and tilting moment.
Four-point contact ball slewing bearing with integrated inner and outer ring.
Grinding finished bearing surface and raceway, provide lower friction and higher rotation accuracy.
With moutning holes on inner and outer ring, easy to install and remove bearings.

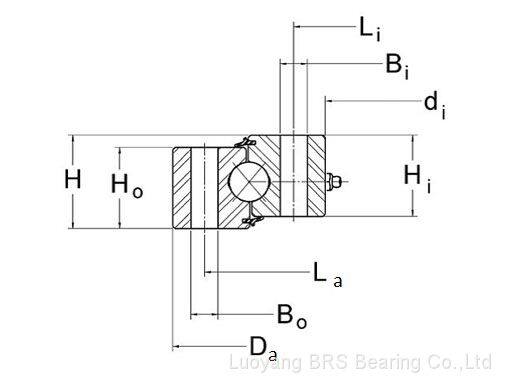

| Model | di | Do | H | Li | ni - Bi | Lo | no - Bo | Weight(kg) |
| MTO-050 | 50 | 110 | 20 | 63 | 8-φ6.6 | 97 | 8-φ6.6 | 0.9 |
| MTO-050T | 50 | 110 | 20 | 63 | 8-M6 | 97 | 8-M6 | 0.9 |
| MTO-065 | 65 | 135 | 22 | 80 | 8-φ9 | 120 | 8-φ9 | 1.8 |
| MTO-065T | 65 | 135 | 22 | 80 | 8-M8 | 120 | 8-M8 | 1.8 |
| MTO-122 | 122 | 226 | 34 | 140 | 12-φ9 | 208 | 12-φ9 | 6 |
| MTO-122T | 122 | 226 | 34 | 140 | 12-M8 | 208 | 12-M8 | 6 |
| MTO-143 | 143 | 249 | 34 | 165 | 12-φ11 | 227 | 12-φ11 | 6.8 |
| MTO-143T | 143 | 249 | 34 | 165 | 12-M10 | 227 | 12-M10 | 6.8 |
| MTO-145 | 145 | 300 | 50 | 175 | 16-φ14.3 | 270 | 16-φ14.3 | 16.8 |
| MTO-145T | 145 | 300 | 50 | 175 | 16-φ15.875 | 270 | 16-φ15.875 | 16.8 |
| MTO-145X | 145 | 312 | 50 | 175 | 16-φ15.1 | 270 | 16-φ15.1 | 18.6 |
| MTO-170 | 170 | 310 | 46 | 200 | 12-φ13 | 280 | 12-φ13 | 15 |
| MTO-170T | 170 | 310 | 46 | 200 | 12-M12 | 280 | 12-M12 | 15 |
| MTO-210 | 210 | 365 | 40 | 240 | 20-φ14.3 | 335 | 16-φ14.3 | 17.2 |
| MTO-210T | 210 | 365 | 40 | 240 | 20-φ15.875 | 335 | 16-φ15.875 | 17.2 |
| MTO-210X | 210 | 373 | 50 | 240 | 20-φ15.1 | 335 | 16-φ15.1 | 21.8 |
| MTO-265 | 265 | 420 | 50 | 295 | 24-φ14.3 | 390 | 18-φ14.3 | 24.5 |
| MTO-265T | 265 | 420 | 50 | 295 | 24-φ15.875 | 390 | 18-φ15.875 | 24.5 |
| MTO-265X | 265 | 434 | 50 | 295 | 24-φ15.1 | 390 | 18-φ15.1 | 27.7 |
