Home > Products > Crossed roller bearings > RE30025 Crossed Roller Bearing 300*360*25mm
RE30025 Crossed Roller Bearing 300*360*25mm
US$ 10 - 500
/ Set
5 Sets(Min. Order)
- Shanghai
- T/T L/C PayPal Other
- 45 days
You May Like
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | RE30025 | Feature | Cross Roller | |
| Seals Type | sealed both sides | Outside Diameter | 20, 600 | |
| Bore Size | 36, 700 | Gear Options | Nongeared |
Product Description
size: 300*360*25mm
structrue: single row crossed cylindrical roller bearings with split inner ring and solid one-piece outer ring
sealing: sealed both sides
clearance: CC0/C0/C1
precision: P5/P4
RE30025 cross roller bearing features:
1. Use GCr15 as raw material, hardness reach to 58~63, cylindrical rollers are placed crosswisely on the raceway, so RE crossed roller bearings can provide high loading capacity.
2. Provide superb rotation accuracy, ensure equipments positioning accuracy.
3. All BRS made RE series cross roller bearings are pre-load, so bearings can keep good stiffness and tilting rigidity.

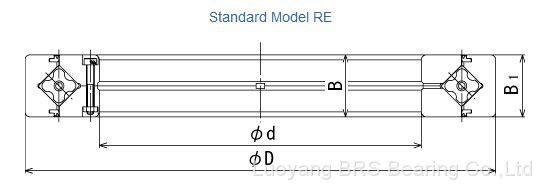

More RE cross roller ring models
| Model No. | d (mm) | D (mm) | B (mm) | C (KN) | Co (KN) | KG |
| RE15030 | 150 | 230 | 30 | 100 | 156 | 5.3 |
| RE16025 | 160 | 220 | 25 | 81.7 | 135 | 3.14 |
| RE17020 | 170 | 220 | 20 | 29 | 62.1 | 2.21 |
| RE18025 | 180 | 240 | 25 | 84 | 143 | 3.44 |
| RE19025 | 190 | 240 | 25 | 41.7 | 82.9 | 2.99 |
| RE20025 | 200 | 260 | 25 | 84.2 | 157 | 4 |
| RE20030 | 200 | 280 | 30 | 114 | 200 | 6.7 |
| RE20035 | 200 | 295 | 35 | 151 | 252 | 9.6 |
| RE22025 | 220 | 280 | 25 | 92.3 | 171 | 4.1 |
| RE24025 | 240 | 300 | 25 | 68.3 | 145 | 4.5 |
| RE25025 | 250 | 310 | 25 | 69.3 | 150 | 5 |
| RE25030 | 250 | 330 | 30 | 126 | 244 | 8.1 |
| RE25040 | 250 | 355 | 40 | 195 | 348 | 14.8 |
| RE30025 | 300 | 360 | 25 | 75.5 | 178 | 5.9 |
| RE30035 | 300 | 395 | 35 | 183 | 367 | 13.4 |
| RE30040 | 300 | 405 | 40 | 212 | 409 | 17.2 |
| RE35020 | 350 | 400 | 20 | 54.1 | 143 | 3.9 |
| RE40035 | 400 | 480 | 35 | 156 | 370 | 14.5 |
| RE40040 | 400 | 510 | 40 | 241 | 531 | 23.5 |
| RE45025 | 450 | 500 | 25 | 61.7 | 182 | 6.6 |
| RE50025 | 500 | 550 | 25 | 65.5 | 201 | 7.3 |
| RE50040 | 500 | 600 | 40 | 239 | 607 | 26 |
| RE50050 | 500 | 625 | 50 | 267 | 653 | 41.7 |
| RE60040 | 600 | 700 | 40 | 264 | 721 | 29 |
