Home > Products > Crossed roller bearings > CRBH5013AUU Crossed Roller Bearings 50x80x13mm

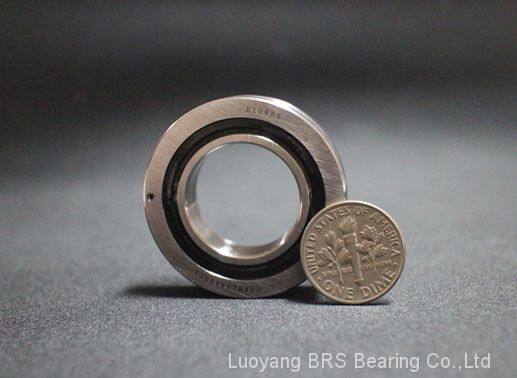

CRBH5013AUU Crossed Roller Bearings 50x80x13mm
- Shanghai
- T/T L/C PayPal Other
- 45 days
You May Like
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | CRBH5013AUU | Feature | Cross Roller | |
| Seals Type | sealed both sides | Outside Diameter | 20, 250 | |
| Bore Size | 36, 310 | Gear Options | Nongeared |
Product Description
CRBH5013AUU crossed roller bearings specifications
size: 50x80x13mm
structrue: thin section crossed cylindrical roller bearings with solid one-piece inner and outer ring, without mounting holes.
sealing: sealed both sides
clearance: T1/C1/C2
precision: P5/P4
CRBH5013 crossed roller bearings are with high stiffness, high rotation accuracy and can take combined loads. It's suited for both inner and outer ring rotation, can be applied in limited space.
CRBH5013AUU cross roller ring has good sealing effect because BRS use specially designed framework oil seals for this product, which can extend bearings maitenance interval. CRBH series preicision bearings are suited for precision detecting instrument, robot joints, direct drive torque motor, high-precision turntable, etc.
CRBH cross roller bearing models
| Model | d | D | B | kg |
| CRBH208AUU | 20 | 36 | 8 | 0.04 |
| CRBH258AUU | 25 | 41 | 8 | 0.05 |
| CRBH3010AUU | 30 | 55 | 10 | 0.12 |
| CRBH3510AUU | 35 | 60 | 10 | 0.13 |
| CRBH4010AUU | 40 | 65 | 10 | 0.15 |
| CRBH4510AUU | 45 | 70 | 10 | 0.16 |
| CRBH5013AUU | 50 | 80 | 13 | 0.29 |
| CRBH6013AUU | 60 | 90 | 13 | 0.33 |
| CRBH7013AUU | 70 | 100 | 13 | 0.38 |
| CRBH8016AUU | 80 | 120 | 16 | 0.74 |
| CRBH9016AUU | 90 | 130 | 16 | 0.81 |
| CRBH10020AUU | 100 | 150 | 20 | 1.45 |
| CRBH11020AUU | 110 | 160 | 20 | 1.56 |
| CRBH12025AUU | 120 | 180 | 25 | 2.62 |
| CRBH13025AUU | 130 | 190 | 25 | 2.82 |
| CRBH14025AUU | 140 | 200 | 25 | 2.96 |
| CRBH15025AUU | 150 | 210 | 25 | 3.16 |
| CRBH20025AUU | 200 | 260 | 25 | 4.0 |
| CRBH25025AUU | 250 | 310 | 25 | 4.97 |
