Home > Products > Crossed roller bearings > SX011824 Crossed Roller Bearings 120*150*16mm
SX011824 Crossed Roller Bearings 120*150*16mm
- Shanghai
- T/T L/C PayPal Other
- 45 days
You May Like
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | SX011824 | Feature | Cross Roller | |
| Seals Type | sealed both sides | Outside Diameter | 36, 220 | |
| Bore Size | 20, 160 | Gear Options | Nongeared |
Product Description
SX011824 crossed roller bearings specification
size: 120*150*16mm
structrue: single row crossed cylindrical roller bearings with separable outer ring and integrated inner ring.
sealing: sealed both sides
clearance: standard/RLO/VSP
precision: axial/radial runout 10μm
SX011824 crossed roller bearing is a special kind of bearing with major series SX0118. The rollers are placed together at right angles with alternate rollers facing in opposite directions, which enables bearing to support radial and axial loads at the same time. With supreme machining precision, BRS SX0118 24 crossed roller bearing possesses the features of flexible rotation, high rigidity, high precision and high loading capacity.
SX011824 cross roller ring has thin section(slim type), so it's suited for where space is limited, and inner ring running accuracy is required.

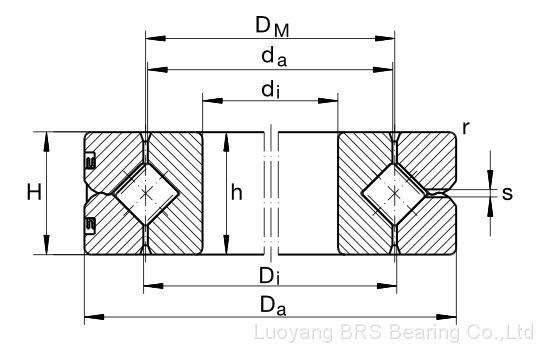

| Model | di (mm) | Da (mm) | H (mm) | rmin (mm) | Ca (kN) | Coa (kN) | Cr (kN) | Cor (kN) | Mass (kg) |
| SX011814 | 70 | 90 | 10 | 0.6 | 15.4 | 51 | 11 | 20.4 | 0.3 |
| SX011818 | 90 | 115 | 13 | 1 | 25.5 | 91 | 18.3 | 36.5 | 0.4 |
| SX011820 | 100 | 125 | 13 | 1 | 27 | 102 | 19.4 | 40.5 | 0.5 |
| SX011824 | 120 | 150 | 16 | 1 | 38 | 146 | 27 | 59 | 0.8 |
| SX011828 | 140 | 175 | 18 | 1.1 | 63 | 240 | 45 | 96 | 1.1 |
| SX011832 | 160 | 200 | 20 | 1.1 | 68 | 275 | 48.5 | 111 | 1.7 |
| SX011836 | 180 | 225 | 22 | 1.1 | 96 | 380 | 69 | 153 | 2.3 |
| SX011840 | 200 | 250 | 24 | 1.5 | 102 | 425 | 72 | 170 | 3.1 |
| SX011848 | 240 | 300 | 28 | 2 | 148 | 640 | 105 | 255 | 5.3 |
| SX011860 | 300 | 380 | 38 | 2.1 | 243 | 1070 | 173 | 425 | 12 |
| SX011868 | 340 | 420 | 38 | 2.1 | 260 | 1220 | 185 | 485 | 13.5 |
| SX011880 | 400 | 500 | 46 | 2.1 | 385 | 1800 | 275 | 720 | 24 |
| SX0118/500 | 500 | 620 | 56 | 3 | 560 | 2750 | 395 | 1100 | 44 |
