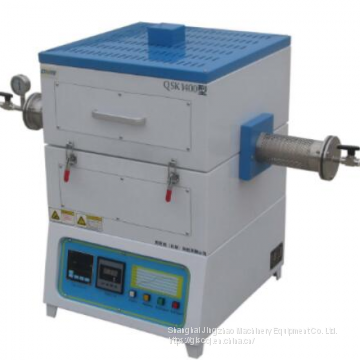

Double temperature zone of 1400℃ vacuum tube atmosphere furnace

Double temperature zone of 1400℃ vacuum tube atmosphere furnace

Product overview:

HYGL1400℃ dual temperature zone tubular atmosphere furnace with silicon carbide as heating element; Double air-cooled structure; High purity alumina fiber vacuum adsorption molding; High density silicon carbon rod vacuum extrusion molding; The outer diameter of corundum tube is 60, 80mm. The two temperature regions are controlled by two independent temperature control systems and are controlled by PID30 program. Kejia electric furnace is a new type of tube furnace with high performance and high energy saving, which is developed by kejia electric furnace.

Main USES:

It is mainly used in laboratories of industrial and mining enterprises and colleges and universities. It can also be used in the dispensing, pre-burning and sintering of electronic materials, powder metallurgy, magnetic materials and other products. It can also be used in the heat treatment process of other materials.

Technical parameters:

Product name 1400℃ double temperature zone tubular atmosphere furnace

Product model HY14000

Operating temperature: 1300℃

High temperature 1400 ℃

Φ 60 mmx800mm furnace tube size

Sample size: 860×470×720mm

Temperature control system temperature control mode: the two temperature control systems are separately controlled, both of which adopt PID method to adjust the 30-segment programmable automatic control;

The temperature control protection has the function of over temperature and broken couple alarm

The temperature control precision is ± 1℃

Heating rate 0~20 ℃ / min

Length of temperature zone each heating zone 200 mm including 20mm spacing, total temperature zone length: 400 mm

In the standard equipment of vacuum sealing system, there is a set of stainless steel vacuum sealing flange. The outlet and inlet ends are equipped with stainless steel globe valves. The vacuum degree is 10-2 torr (mechanical pump). 10-5 torr (with molecular pumps)

Heating element class 1500 C silicon carbon rod

Operating voltage AC 220V single 50 Hz

High power 8 kw

Temperature measuring element s-type single platinum-rhodium thermocouple

Gas tightness 4.03 x 10-3 pa

Net weight 100 Kg

Furnace tube high purity corundum furnace tube

Shell temperature ≤45℃

Vacuum pump, vacuum flange, vacuum gauge, plug brick

Electrical certification CE certification

1 year warranty after sales service
