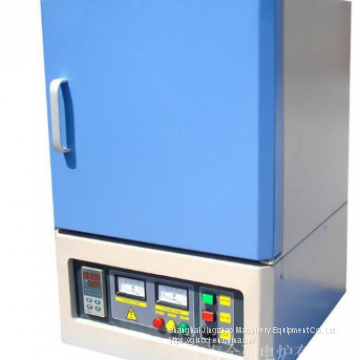

JZDZ1200 custom muffle furnace

Customized muffle furnace JZDZ1200, tank size 900*800*700. Unit mm. Use 1430 light breaking heat firebrick masonry furnace. The whole hearth is stable and durable. Adopt hidden configuration of heating element. The whole equipment highlights the charm of science and technology. And yet beautiful. It is a good choice for small scale production in factories.

Technical parameters of customized muffle furnace JZDZ1200 are as follows:

Model: JZDZ1200

Serial number class equipment technical specifications

1 furnace size 900*800*700(depth * width * height)

2. Furnace capacity 504L

Operating temperature ≤1200℃

4 the heating rate is recommended to be 10℃/min

5 heating element high quality silicon carbon rod

Furnace material imported alumina fiber insulation refractory

The temperature control precision is ±3℃

Open mode translation door of furnace door

9. Control mode Japanese conductive temperature controller or touch screen control, intelligent fuzzy PID control, can be programmed multi - section heating program

10 the ultimate temperature is 1200℃

Heating temperature zone single temperature zone

15 temperature curves can be stored in advance, and 30 "time-temperature curves" can be set for each curve.

13. Operation interface: Chinese and English interchanging graphic interface, true-color touch screen input,

14. Real-time monitoring of temperature curve records, and real dynamic display of "time-temperature curve"

15 temperature measuring element s-type single platinum-rhodium thermocouple

Protection Settings: over-temperature alarm, over-current protection, and even break prompt

Electrical specification 380V / 50Hz 48KW

External dimensions 1900*1800*2100

19. The product is equipped with 1 set of burner plate, 1 handle of crucible tongs, heat resistant protective gloves and 1 manual.
