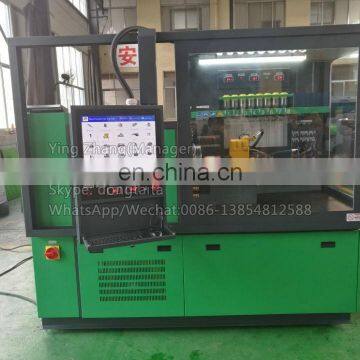

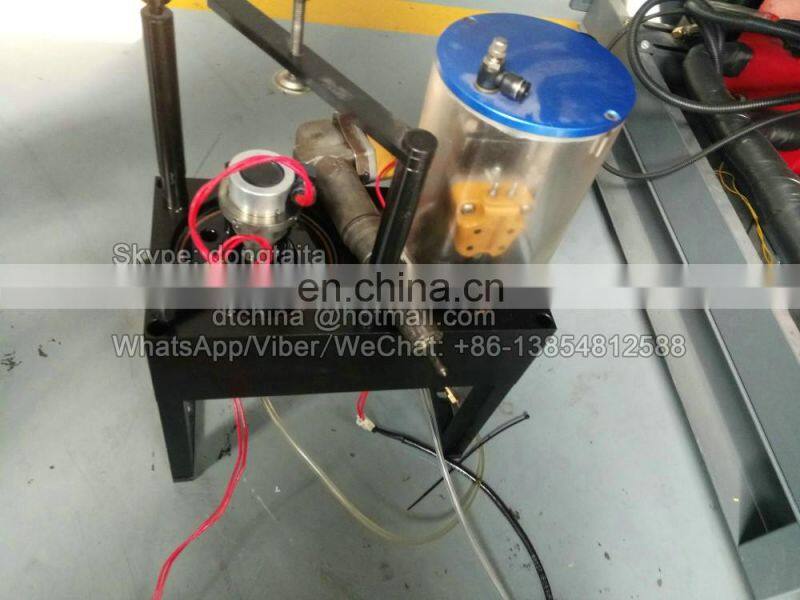

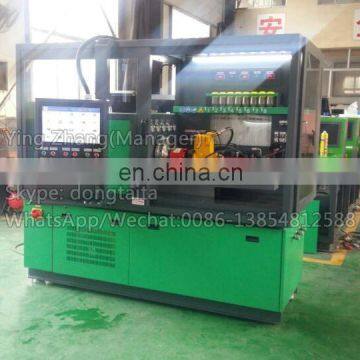

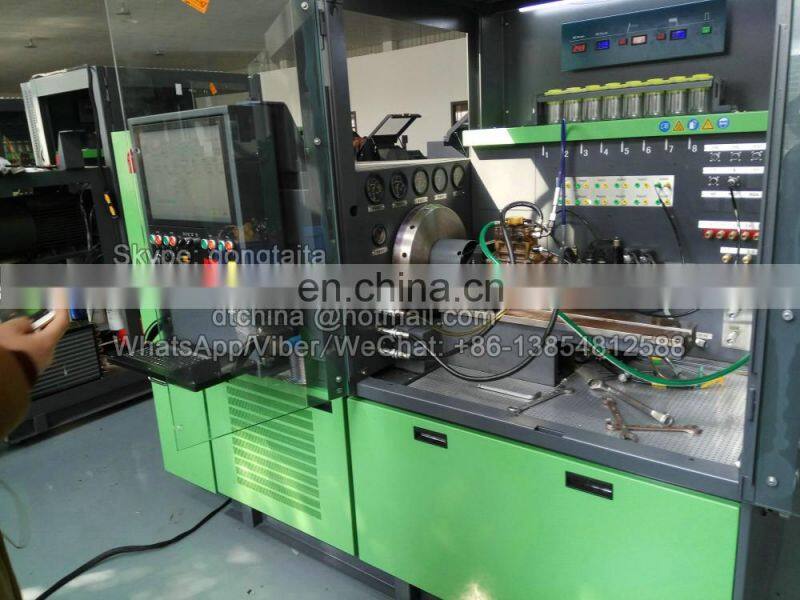

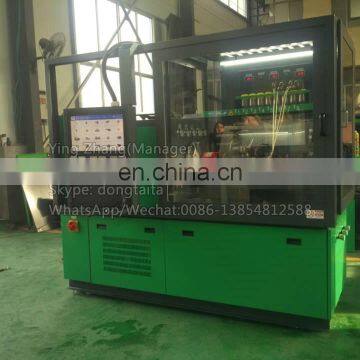

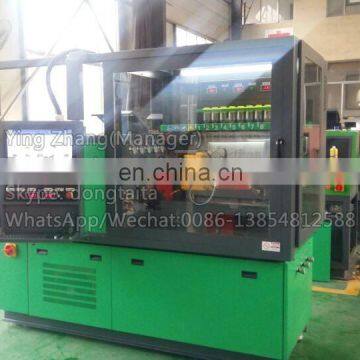

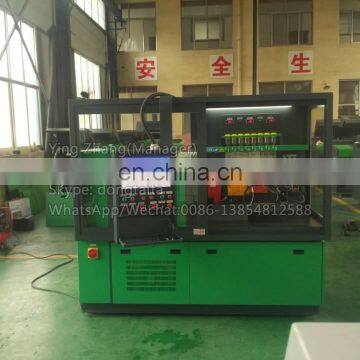

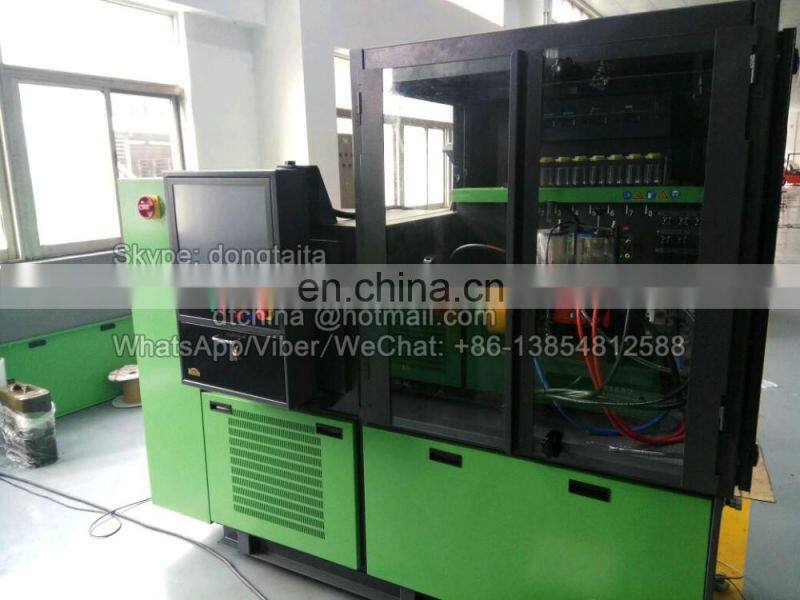

CR825 Multifunction CRDI, EUI/EUP, HEUI, 320D Pump Test Bench

MAIN CONFIGURATION

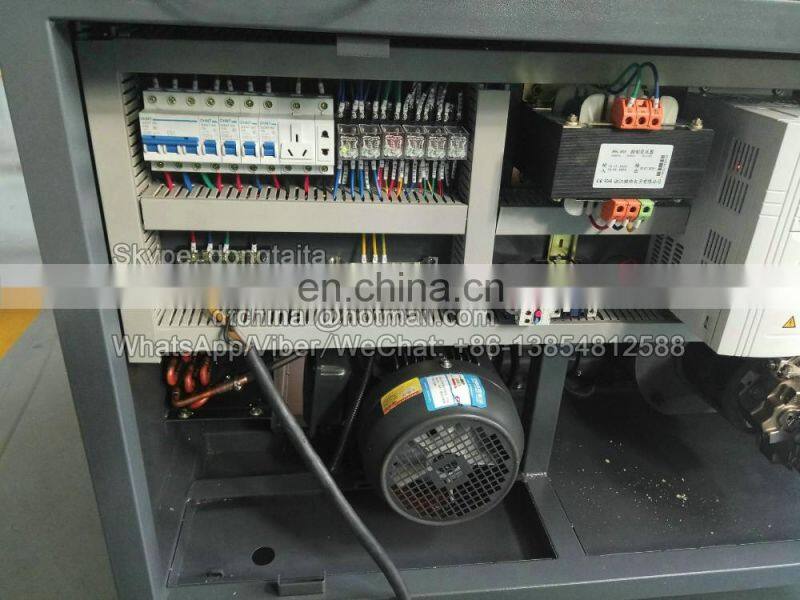

1.Motor power:22KW

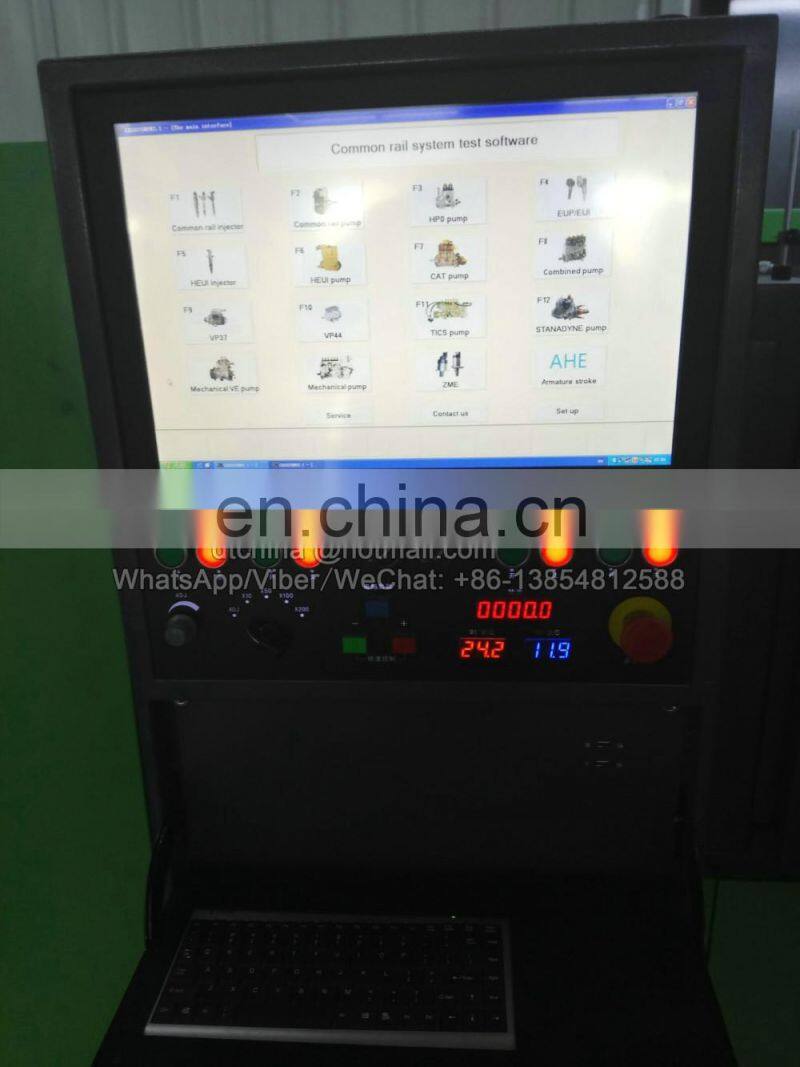

2.Industrial PC with touch screen

3.Compressor cooling

4.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)

5.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)

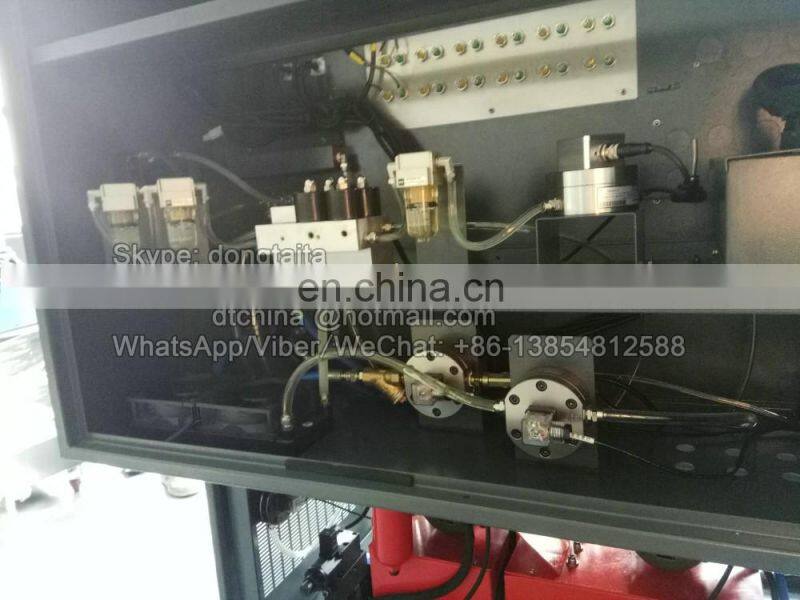

6.Flow meter(German ZDM) detecting the fuel injection flow rate

7.Flow meter(German ZDM) detection of common rail pump

8.Flow meter(German KRACHT) to detect oil flow

9.Flow meter(German KRACHT) detection of diesel oil return flow

10.2sets of BOSCH common rail +DRV

11.Oil tank temperature sensor

12.Diesel fuel tank temperature sensor

13.Diesel supply temperature sensor

14.Diesel return temperature sensor

15.Oil pressure sensor

16.Diesel supply pressure sensor

17.Diesel return pressure sensor

18.Diesel pump internal pressure sensor

19.Oil pressure closed loop control module

20.The device is convenient to move and position the roller

FUNCTION CHARACTERISTIC

1.Test all the manufacturers of common rail injector

2.Test all the manufacturers of piezo injector

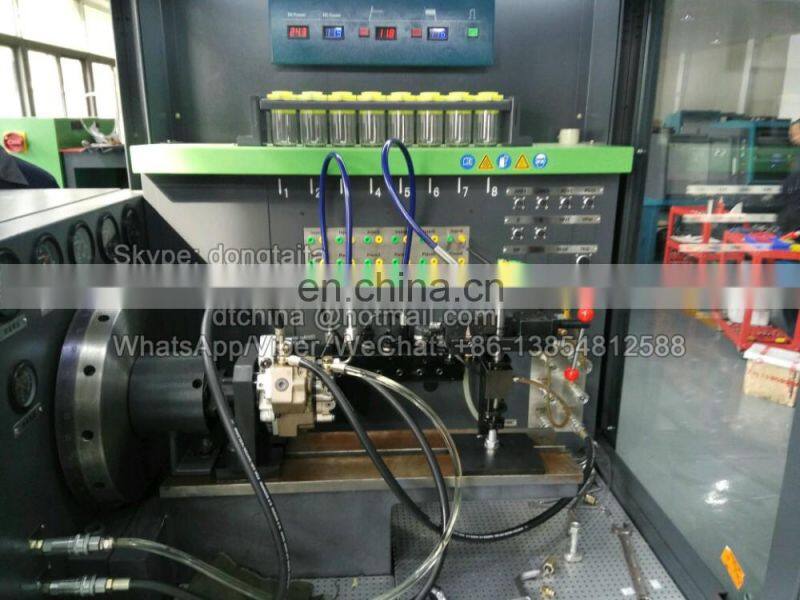

3.Test all the manufacturers of common rail pump

4.Test DENSO HP0 pump

5.Test CAT common rail (HEUI) injector

6.Test CAT common rail (HEUI) engine oil pump

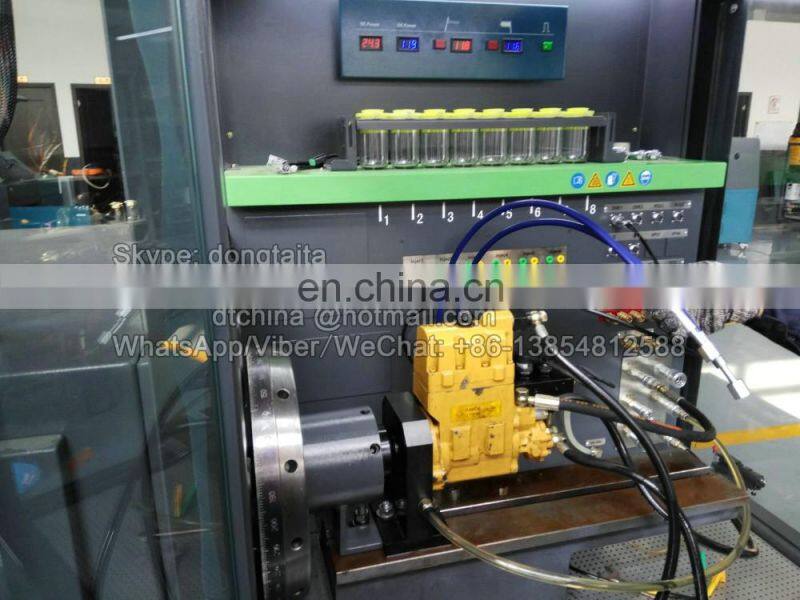

7.Test CAT 320D common rail pump (the world’s first successful development)

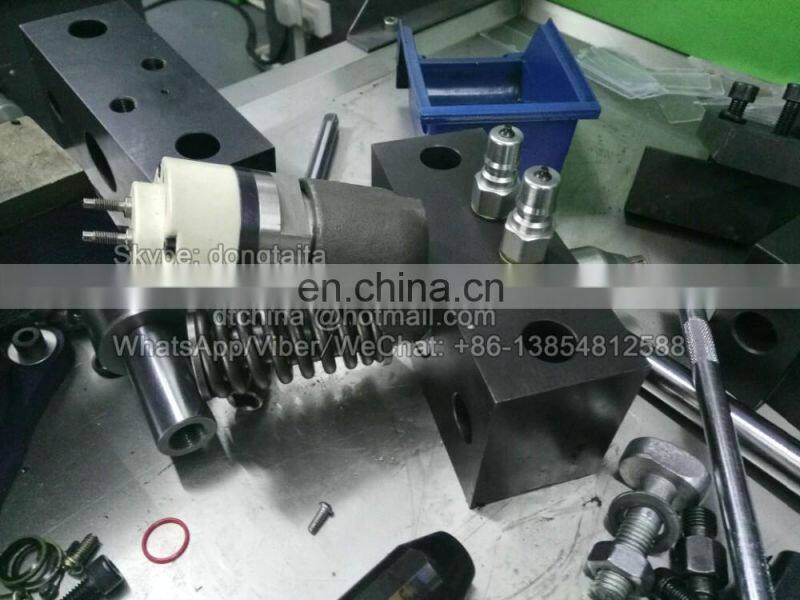

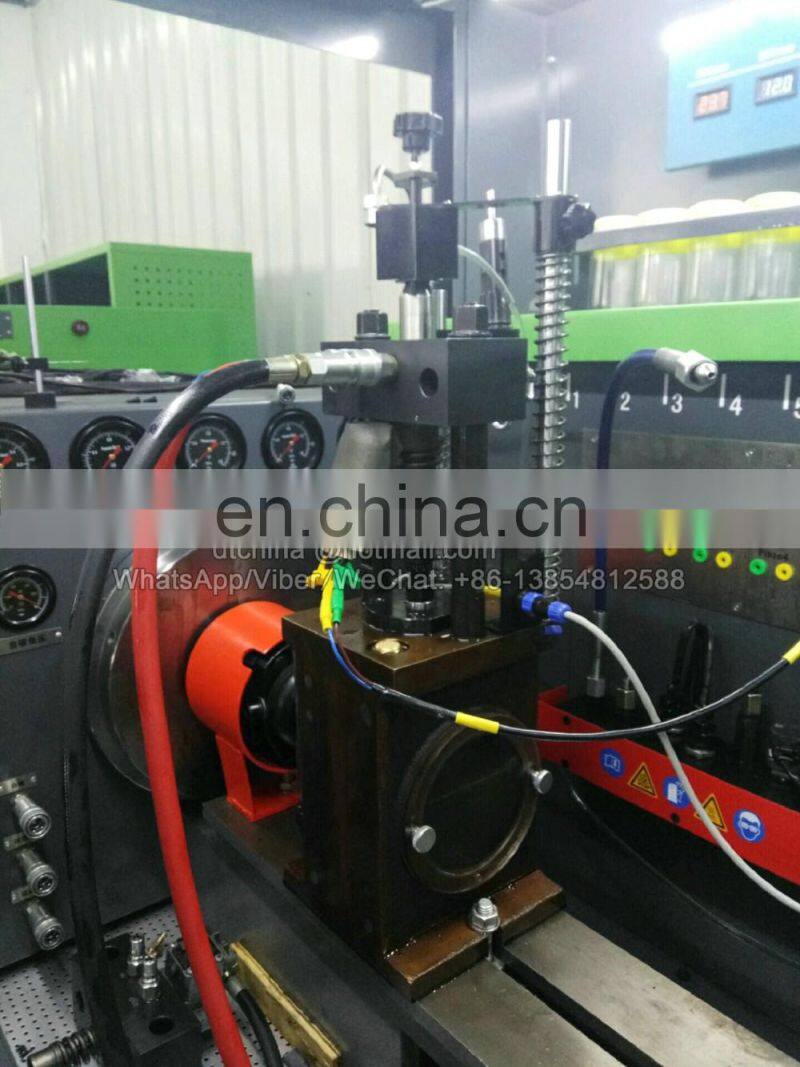

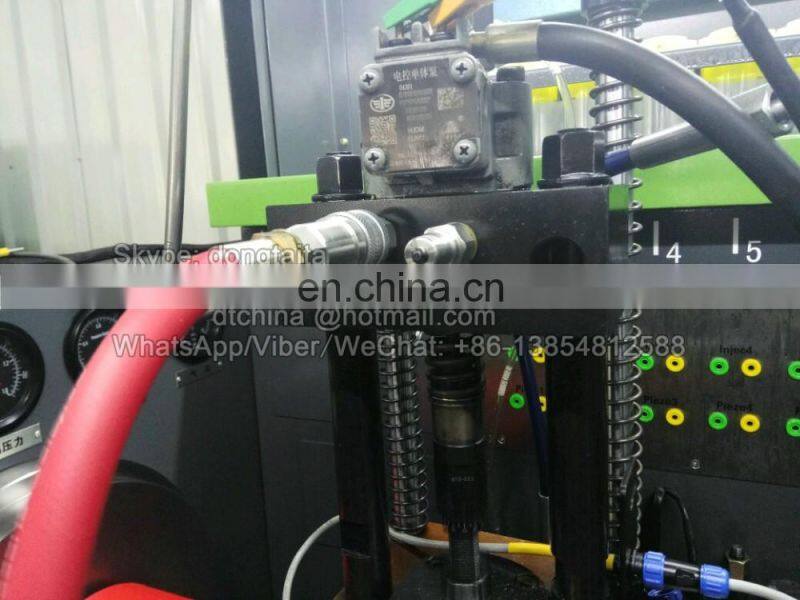

8.Test EUI/EUP (can adjust the lift but not to change the camshaft)

9.Test VP44 VE VP37 pump

10.Test RED3 RED4 TICS ZEXEL electronic control pump

11.Drive circuit board(solenold valve electric parameters to enhance the voltage

current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)

12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,

encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.

Driving signal waveform can be programed.
