Diamond Probe Direct Cable Type MT3021 Temperature Sensor
- chengdu
- T/T L/C
- 7 days
You May Like
-
4-20mA 0-10V Proint Melt Pressure Guage
-
4-20mA Flange Type Explosion-proof Transmitter
-
PT124B Special Transmitter for Spinning Machine
-
PT4626B-35mpa Completely Replace Dynisco High Temperature Melt Pressure Transmitter
-
2.0mv/v 3.33mv/v Pressure Sensors for Non-woven Machines
-
Special PID Pressure Gauge for Melt - Spraying Cloth Machinery
Product Details
| Brand Name | SAND | Place of Origin | China | |
| Model Number | MT3021 | Temperature Range | 0-400℃ | |
| Usage | Industrial | Theory | Temperature Sensor | |
| Accuracy | 0.5%FS |
Product Description
Introduction
The SAND MT melt temperature sensor have been especially developed for melt and core temperature detection in extrusion process with the ability of quick response time, perfect stability and accurate measurement.
They are widely used in chemical fiber, plastics and rubber, non-woven fabrics and petrochemical industries.
Performance
Temperature Range | 0~400celsius | |
Accuracy | ±0.2%FSO,±0.5%FSO | |
Temperature configuration | Thermocouple | E, J, K, S type |
Thermal resistance | Pt100 | |
Electrical connection | Thermocouple | Direct cable connection; 2PIN special connection |
Thermal resistance | Direct cable connection; 3PIN special connection | |
Thread size | 1/2”-20NUF,M12*1.5,M14*1.5,M18*1.5 etc | |

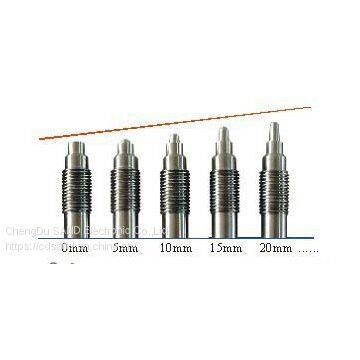

Probe depth | 0mm~30mm | |

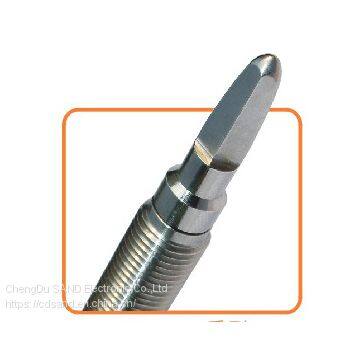

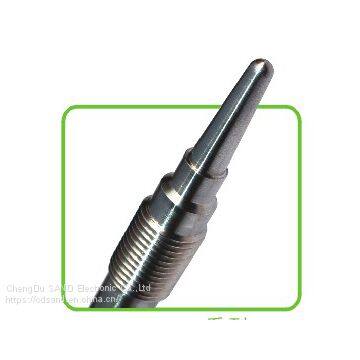

Probe shape | MT301x series: Tapered probe; MT302x series: Diamond probe | |
Rigid/flexible stem | Rigid=150mm(MAX<450mm); Flexible=50mm(MAX<3000mm) | |
Detailed Pictures

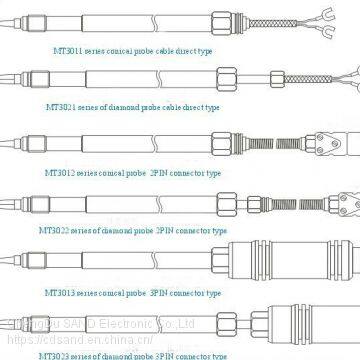

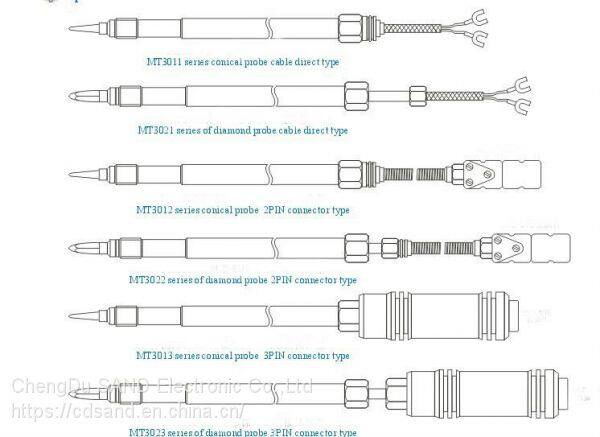

Order format
Sample 1 :MT3011-1/2"-20-15-150-J
product model is MT3011,melt temperature sensor;
Electrical Connectrion is direct cable connection
Probe thread size is 1/2"-20UNF;
Conical probe depth is 15mm;
Rigid stem length is 150mm,J type thermocouple.
Sample 2 :MT3012-M18-15-150/180-J
product model is MT3012,melt temperature sensor;
Electrical Connectrion is 2PIN.
Probe thread size is M18*1.5;
Conical probe depth is 15mm;
Rigid/Flexible stem length is 150mm/180mm,J type thermocouple.
Sample 3 :MT3013-M14-15-250-Pt100
product model is MT3013,melt temperature sensor;
Electrical Connectrion:direct cable connection
Probe thread size is M14*1.5;
Conical probe depth is 15mm;
Rigid stem length is 250mm,Pt100.
