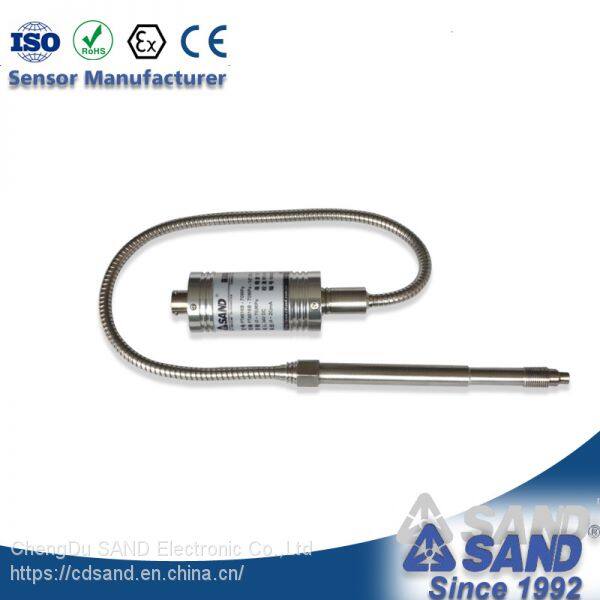

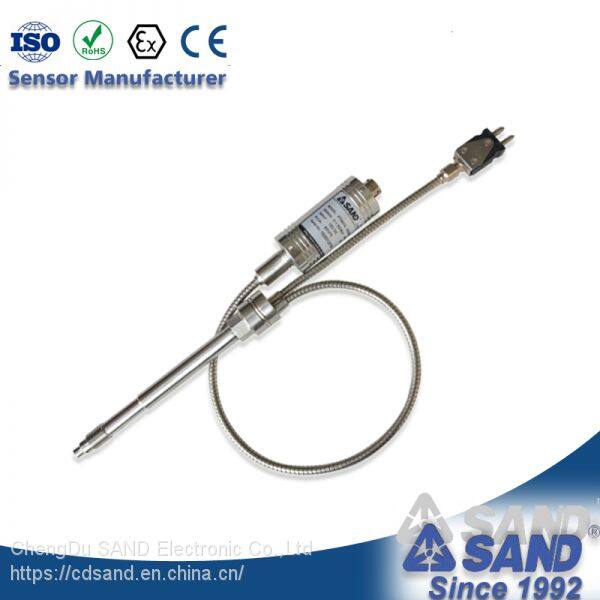

PT612-M14 Melt Pressure Transducer With CE Certification
- chengdu
- T/T L/C PayPal
- 10 days
You May Like
Product Details
| Brand Name | SAND | Place of Origin | China | |
| Model Number | PT612B | Usage | Pressure Sensor | |
| Theory | Other, Pressure Sensor | Output | Other, Pressure Sensor |
Product Description
Introduction
Our company developed PT611, PT612, PT623 series melt pressure sensor / transmitter in full compliance with CE certification requirements. Components selection and circuit design have passed the rigorous performace testing. Our products optained the permits to enter the European market. Our products are not only the first choice for domestic chemical fiber textile industry, plastic and rubber industry, and other industries, but also
have been put on high-end markets in Europe and America.
Model Description
| Pressure Transducer | Pressure Transmitters | |
| Rigid Stem Type | PT611 | PT611B |
| Flexible Stem Type | PT612 | PT612B |
| Pressure and Temperature Dual Ability Type | PT623 | PT623B |
Performance indicators
1 Got the CE certification, safe and reliable;
2 A variety of connectors to facilitate the users to select 5PIN or 6PIN;
3 Output signal:
Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V;
Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;
4 Accuracy: ± 0.5% FS, ± 1.0% FS (default);
5 Low temperature drift: ≤ 0.2MPa/100 ℃;
6 Probe max temperature: 300 ℃ or 400 ℃;
7 Corrosion resistant coating to extend the service life of 3 to 5 times; (optional)
8 Thermometric config:
Thermocouple: E、J、K type etc.
Thermal resistance: Pt100 etc.
