Home > Products > Rolling mill bearings > Rolling mill bearings FC4460192 FC4462192 FC4462225 FC4464210 FC4466230 FC4666170 FC4666206 FC4668260 FC4673250 FC4866220 FC4868192 FCD4870220 FC4872220 FC5068170 FC5070220 FC5072220
Rolling mill bearings FC4460192 FC4462192 FC4462225 FC4464210 FC4466230 FC4666170 FC4666206 FC4668260 FC4673250 FC4866220 FC4868192 FCD4870220 FC4872220 FC5068170 FC5070220 FC5072220
- Shang Hai
- T/T L/C
- 10 days
You May Like
-
Rolling mill bearings FC5272192 FC5272200 FC5274200 FC5274220 FC5274230 FC5276220 FC5476230 FC5476275 FC5478220 FC5478240 FC5675200 FC5676192 FCD5676290 FC5678220 FC5678240 FC5678275
-
Rolling mill bearings FCD5684280 FC5880180 FC5882240 FCD5884300 FC6084218 FC6084240 FCD6084300 FCD6488300 FC6490240 FCD6492300 FCD6492340 FCD6496290 FCD6496350
-
Rolling mill bearings 382930 382952 382960 382960X2 382968 382972X2 381030X2 381036X2 381040X2 381050/YB2 381156 381160X2 381160
-
Rolling mill bearings 381164 381168 381172 381176 381180 381184 381188 381192 380641X2 380664 380676 380688 382052X2
-
JDB500、JFB500、JDBB、JTW500、JDBS、JESW、JTWP、JUWP、JOLP、JOML、JTLP、JGLDW、JTGLW、JGLXS、JGLX、JSOL、JFRP、JESF
-
SF-2 standard series 10 12 14 15 16 18 20 22 25 28 30 35 40 45 50 55 60 65 70 75 80 85 90 100 105 110
Product Details
| Brand Name | CHY | Place of Origin | China | |
| Model Number | FC4460192 FC4462192 FC4462225 FC4464210 FC4466230 FC4666170 FC4666206 FC4668260 FC4673250 FC4866220 FC4868192 FCD4870220 FC4872220 FC5068170 FC5070220 FC5072220 | Number of Row | Other, Four Row | |
| Seals Type | Open | Precision Rating | P0 P6 P5 | |
| Outside Diameter | 320, 340 | Bore Size | 220, 240 |
Product Description
| model | seal | d | D | B | Fw |
| FC4460192 | 220 | 300 | 192 | 242 | |
| FC4462192 | 220 | 310 | 192 | 246 | |
| FC4462225 | 220 | 310 | 225 | 245 | |
| FC4464210 | 220 | 320 | 210 | 248 | |
| FC4466230 | 220 | 330 | 230 | 249 | |
| FC4666170 | 230 | 330 | 170 | 260 | |
| FC4666206 | 230 | 330 | 206 | 260 | |
| FC4668260 | 230 | 340 | 260 | 261 | |
| FC4673250 | 230 | 365 | 250 | 266 | |
| FC4866220 | 240 | 330 | 220 | 264 | |
| FC4868192 | 240 | 340 | 192 | 266 | |
| FCD4870220 | 240 | 350 | 220 | 270 | |
| FC4872220 | 240 | 360 | 220 | 272 | |
| FC5068170 | FCD | 250 | 340 | 170 | 274 |
| FC5070220 | FCD | 250 | 350 | 220 | 278 |
| FC5072220 | 250 | 360 | 220 | 282 |

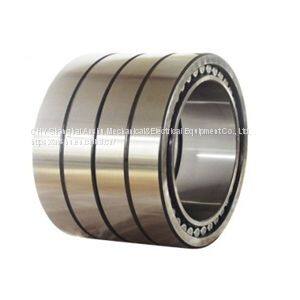

Four row cylindrical roller bearing
Four-row cylindrical roller bearings are mainly used in rolling mill machinery such as cold and hot rolling mills and blanking machines. The bearings are separated structures, and the bearing rings and rolling element assemblies can be easily separated. Therefore, the bearings are cleaned, inspected or It is very convenient to install and disassemble.
FC type
The FC type bearing is composed of two outer rings and one inner ring, and each of the outer rings has a middle rib in the middle of the rib and a rib in the inner ring.
FCD type
The FCD type bearing is actually a combination of two NN type bearings.
FC and FCD bearings allow for axial displacement in the axial direction relative to the housing. Therefore, such a structure is suitable as a swim end bearing. Car cages are often used for cages of this type.
