Ordinary V Belt

FOB Price

US$ 0.5 - 100 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHY		Place of Origin	China
Model Number	Type: Y, O, A, B, C, D, E, F

Product Description

Ordinary V belt

Specification
Type	Size				Length
Type	Top width	Height	Pitch width	Angle	Inch	Metric(mm)
Y	6	4	3.3	40°	10～25	254～635
O	10	6	8.5	40°	16～80	406～2032
A	13	8	11	40°	22～160	559～4064
B	17	11	14	40°	22～300	559～7620
C	22	14	19	40°	40～380	1016～9650
D	32	19	27	40°	120～440	3048～15240
E	38	25	32	40°	150～600	3810～15240
F	50	30		40°	200～630	5080～16000

l Ordinary V-belts use high-strength, high-elastic-modulus, low-shrinkage HMLS cords as skeleton materials, and high-strength, flexural-resistant natural rubber and flexible polyester fabrics as skeleton supplementary materials, which have the advantages of large bearing load and long belt length. It has the advantages of small running shrinkage and fatigue resistance, and is suitable for high-power mechanical collars.

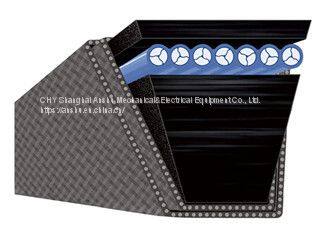

l The triangle belt has two kinds of special belt core structure and rope core structure, which are respectively composed of four parts: wrapping cloth, top rubber, tensile body and bottom rubber. The V-belt with rope core structure is easy to manufacture, with average tensile strength and low price. The V-belt with special belt core structure has good toughness and high strength, and is suitable for occasions with high rotation speed.

l Type: Y, O, A, B, C, D, E, F
