AWWA Butterfly Valve
US$ 1 - 1000
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T L/C
- 20 days
You May Like
Product Details
| Place of Origin | China | Model Number | F504-10 F47-10 | |
| Material | Casting | Application | General | |
| Structure | Butterfly | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Pneumatic | |
| Media | Base | Temperature of Media | Medium Temperature |
Product Description
AWWA Butterfly Valve

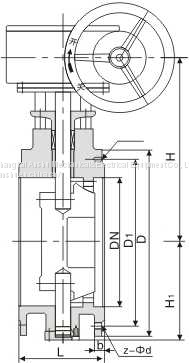

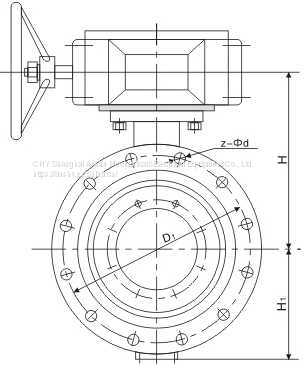

| Type | DN | PN1.0MPa | WT (Kg) | ||||||
| L | D | D1 | b | Z-Φd | H | H1 | |||
| F504-10 | 100 | 127 | 229 | 180 | 24 | 8-Φ17.5 | 225 | 120 | 31 |
| 125 | 127 | 254 | 210 | 24 | 4-Φ18 | 240 | 130 | 37 | |
| 150 | 127 | 279 | 240 | 26 | 4-Φ18 | 260 | 140 | 43 | |
| 200 | 152 | 343 | 295 | 26 | 8-Φ22 | 290 | 175 | 64 | |
| 250 | 203 | 406 | 350 | 28 | 12-Φ22 | 340 | 205 | 113 | |
| 300 | 203 | 483 | 400 | 28 | 12-Φ22 | 360 | 245 | 142 | |
| 350 | 203 | 533 | 460 | 30 | 16-Φ22 | 400 | 270 | 171 | |
| 400 | 203 | 597 | 515 | 32 | 16-Φ26 | 432 | 300 | 225 | |
| 450 | 203 | 635 | 565 | 32 | 16-Φ26 | 475 | 320 | 258 | |
| 500 | 203 | 699 | 620 | 34 | 16-Φ26 | 560 | 360 | 314 | |
| 600 | 203 | 813 | 725 | 36 | 16-Φ30 | 680 | 410 | 396 | |

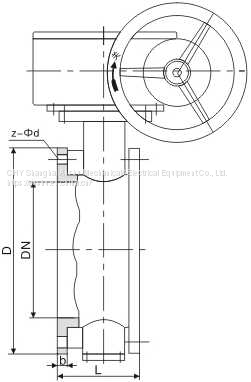

| Type | DN | PN1.0MPa | WT (Kg) | ||||||
| L | D | D1 | b | Z-Φd | H | H1 | |||
| F47-10 | 700 | 305 | 895 | 840 | 40 | 20-Φ30 | 710 | 474 | 590 |
| 800 | 305 | 1015 | 950 | 44 | 20-Φ33 | 750 | 534 | 670 | |
| 900 | 305 | 1115 | 1050 | 46 | 24-Φ33 | 820 | 584 | 1120 | |
| 1000 | 305 | 1230 | 1160 | 50 | 24-Φ36 | 930 | 642 | 1390 | |
| 1200 | 380 | 1455 | 1380 | 56 | 28-Φ39 | 1050 | 754 | 1750 | |
| 1400 | 380 | 1675 | 1590 | 62 | 32-Φ42 | 1220 | 890 | 2840 | |
| 1600 | 380 | 1915 | 1820 | 68 | 36-Φ48 | 1330 | 1014 | 4130 | |
