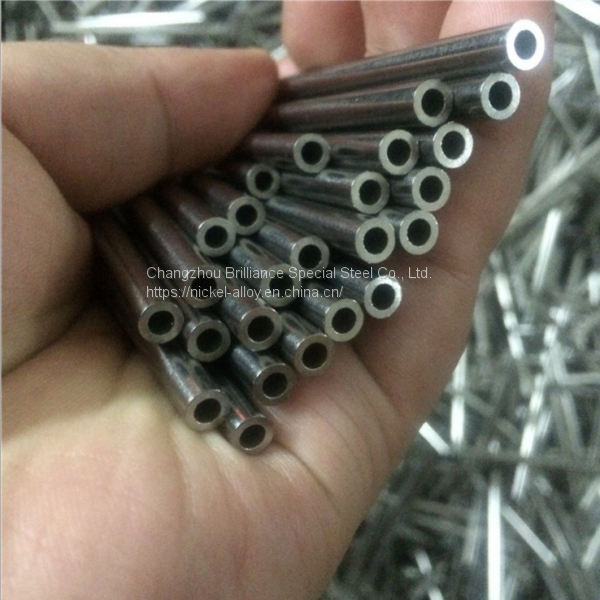

Kovar bar ASTM F15 kovar alloy kovar target 4j29Pipe Nickel Pipe
- shanghai
- T/T
You May Like
-
Kovar Strip ASTM F15 kovar alloy kovar target 4j29Strip Nickel Strip
-
Kovar Expansion Precision Alloy Ni29Co18 Uns K94610 (4J29) Nickel Pipe
-
Kovar Plate ASTM F15 kovar alloy kovar target 4j29 Nickel Plate
-
Kovar Expansion Precision Alloy Ni29Co18 Uns K94610 (4J29)
-
FeNi50 Expansion Precision Alloy (4J50)
-
ASTM B637 Inconel Alloy 718 Round Bar/Forgings/Rings/Wires (UNS N07718)
Product Details
| Brand Name | Changzhou Brilliance Special Steel Co., Ltd. | Place of Origin | China | |
| Model Number | kovar | Type | Nickel Pipe | |
| Application | power tubes, microwave tubes, transistors, and diodes | Grade | FeNi29Co17 | |
| Elongation (≥ %) | 30% | Powder Or Not | Not Powder | |
| Ni (Min) | 28.5-29.5 |
Product Description
Changzhou Brilliance Special Steel Co., Ltd.
Kovar alloy is a vacuum melted, iron-nickel-cobalt alloy that is widely used in the electronics industry. Kovar is a nickel-iron-cobalt, controlled-expansion alloy which contains 29% nickel. Its coefficient of expansion, which decreases with rising temperature to the inflection point, matches the expansion rate of borosilicate glasses and alumina ceramics.
Kovar alloy has been used for making hermetic seals with the harder Pyrex glasses and ceramic materials. This alloy has found wide application in power tubes, microwave tubes, transistors, and diodes. In integrated circuits, it has been used for the flat pack and the dual-in-line package.
Chemical Composition
Grade | C% | P% | S% | Mn% | Si% | Cu% | Cr% | Mo% | Ni% | Co% | Fe% |
Kovar | Max 0.03 | Max 0.020 | Max 0.020 | Max 0.50 | Max 0.30 | Max 0.20 | Max 0.20 | Max 0.20 | 28.5-29.5 | 16.8-17.8 | Bal. |
Specifications
Grade | UNS | Werkstoff Nr. |
Kovar | K94610 | 1.3981 |
Physical Properties
Grade | Density | Melting Point |
Kovar | 8.17 g/cm3 | 1449°C |
Mechanical Properties
Grade | Tensile Strength N/mm2 | ||||
Soft | 1/4 Hard | 1/2 Hard | 3/4 Hard | Full Hard | |
Kovar Strip | <570 | 520-630 | 590-700 | 600-770 | >700 |
Kovar Wire | <585 | 585-725 | 655-795 | 725-860 | >860 |
Coefficient of Expansion
Alloy | Linear Coefficient of Thermal Expansion a,10-6/°C | |||||||
20-200°C | 20-300°C | 20-400°C | 20-450°C | 20-500°C | 20-600°C | 20-700°C | 20-800°C | |
Kovar | 5.9 | 5.3 | 5.1 | 5.3 | 6.2 | 7.8 | 9.2 | 10.2 |
