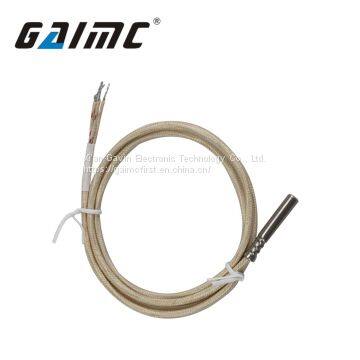

GTS300 class B high temperature Glass fibre pt1000 temperature sensor
- 100000 Piece / Pieces per Month
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
You May Like
-
GTS300 three wire rtd temperature sensor pt100 probe
-
GUH130 SD storage Clamp on portable ultrasonic heat meter
-
GTS-N1017 Waterproof IP68 Aquarium Fish tank NTC temperature sensor
-
GFS131 Micro medical ventilator flow sensor
-
GFS131 Intensive care ventilator flow meter
-
GUF120A-W China wall mounted Clamp on pipe ultrasonic water flow meter price
Product Details
| Brand Name | GAIMC | Place of Origin | China | |
| Model Number | GTS300 | Usage | Temperature Sensor | |
| Theory | Resistance Sensor |
Product Description
RTD temperature sensor is the use of metal platinum (pt) resistance and temperature with a certain functional relation of temperature sensor,Due to its high accuracy, large measuring range, good reproducibility and stability, etc. That are widely used in medium temperature (200 ℃ ~ 650 ℃) in the range of temperature measurement.
Features:
1.High precision, good stability;
2.High sensitivity, good linear;
3.Response time short,good compatibility;
4.Compact structure, easy installation, waterproof good
RTD | PT100, PT1000 |
Accuracy | 1/3DIN(±0.1℃), Grade A(±0.15℃), Grade B(±0.3℃) |
Temp. range | 1/3DIN: 0~+150℃; Grade A: -50~+300℃; Grade B: -70~+500℃; |
Shell size | Diameter: ￠ 3~ ￠ 9mm, length: 3mm~1000mm |
Shell material | Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC. |
Wire | UL series (such as UL1007), Supply line number, using temp. range, outside diameter and material requirements. |
Connector | Molex,JST,DuPont,CWB,CJT,etc. |
Drivepipe | Heat shrinkable tube; PVC tube; glass fiber tube;teflon tube |
How to order↓↓↓
please offer the following necessary info:
?Temperature range
? Application
? Probe size
? Wire length
? Wire end
(send us parameters or drawing reference)
HOW TO ORDER? CONTACT US NOW AS BELOW?
