GVF100 Digital RS485 propane biogas steam vortex air flow meter price
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
-
GTF300 LWGY turbine type liquid control diesel hydraulic oil flow meter for fuel
-
GUF100 Handheld digital water portable ultrasonic flow meter
-
GUF140 GPRS wireless remote reading ultrasonic water meter manufacturers
-
GUF142 IP68 agriculture Water Resource Management wireless ultrasonic water meter
-
GUF130 Built in printer cheap clamp on portable ultrasonic flowmeter sensor
-
GUF120-M Clamp on transducer ultrasonic underwater flow meter types
Product Details
| Brand Name | GAIMC | Place of Origin | China | |
| Model Number | GVF100 |
Product Description
GVF100 digital gas vortex flow meter is a flow meter operating with Karman Vortex Street principle for flow rate of gases (air, oxygen, nitrogen, coal gas, natural gas, chemical gas, etc.). It could be used in automatic control system as flow transmitter. The product adopted advanced differential technique, together with measurement of isolating, shielding and filtering, it had possesses better anti-vibration performance and signal stability.
Clamp flange:

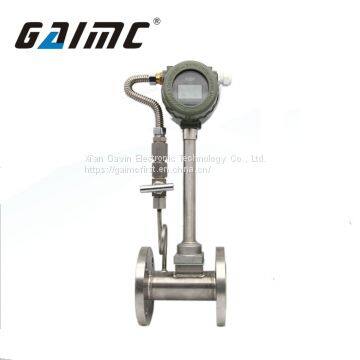

Flange(temperature and presuure compensation):
| Item | Data |
| Medium | Air,nitrogen, coal gas, natural gas, chemical gas, etc. |
| Accuracy | Pipe type: Class 1.0 Insertion type: Class 2.5 |
| Medium temperature | -40℃~+350℃ |
| Nominal pressure | ≤1.6Mpa (offer ≤2.5Mpa and ≤4.0Mpa customization) |
| Flow rate | 5-60m/s |
| Output | Voltage pulse, 4-20mA output, HART, Modbus, RS485 options. |
| Installation | Flange, clamp flange, insertion, threat, clamp connection |
| Power | 12~28VDC;85~265VAC (Remote display);3.6V lithium battery (on site display) |
| Operating condition | Temperature: -25℃~60℃ Humidity: 5%~90% |
Diameter: Please contact our sales manager for details
GVF100 | Note | ||||||||||
Nominal diameter | DNXX | DN15~DN1000 (mm) | |||||||||
Structure | F | Remote type with display | |||||||||
Y | Compact type with display | ||||||||||
Accuracy | A | Pipe type: Class 1.0 | |||||||||
B | Insertion type: Class 2.5 | ||||||||||
Nominal pressure | 16 | 1.6Mpa | |||||||||
XX | Customization | ||||||||||
Max. temp. of medium | M | <250℃ | |||||||||
H | >250℃ | ||||||||||
Other function | P | With pressure compensation | |||||||||
T | With temperature compensation | ||||||||||
PT | With pressure and temperature compensation | ||||||||||
Power | 1 | 12~28VDC | |||||||||
2 | 3.6V lithium battery (on site display) | ||||||||||
3 | 85~265VAC (Remote display) | ||||||||||
Output | A | 4-20mA | |||||||||
M | Voltage pulse | ||||||||||
H | HART | ||||||||||
R2 | RS485 | ||||||||||
Installation | 1 | Flange | |||||||||
2 | Clamp flange | ||||||||||
3 | Insertion | ||||||||||
4 | Thread | ||||||||||
5 | Clamp | ||||||||||
Explosion proof | A | No explosion proof | |||||||||
B | Intrinsic explosion proof | ||||||||||
G | Flame proof | ||||||||||
Note for type selection
GVF100 digital gas vortex flow meter is mainly applicable for measurement of air, oxygen, nitrogen, coal gas, natural gas, chemical gas, etc.
Type selection process
Select main model and structure first, then ensure other specifications according to requirement, i.e. main model + nominal diameter + structure + accuracy + nominal pressure + Max. temperature of the medium + more function + power + output + installation + explosion proof.
Application vortex flow meter
