GTS-N1003 SS304 Pointed Tip BBQ Cooking NTC Temperature Sensor Probe
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
-
GWQ-ph6.0 Industrial Automatic Online ph Meter ec Controller Price
-
GWQ-DO280 Aquarium do Online Digital Dissolved Oxygen Meter Analyzer
-
GWQ-EC300 Digital Online Water Electrical ph Conductivity Tds Meter
-
GTS-N1006 Fast Thermal Response Time Smoker Grill Oven NTC Temperature Sensor
-
GAIMC Transit-time 4-20mA Output Digital Ultrasonic Water Flow Meter Price List
-
LXSG Residential Cold Hot Water Multi Jet Dry Dial Water Meter
Product Details
| Brand Name | GAIMC | Place of Origin | China | |
| Model Number | GTS100 | Usage | Temperature Sensor | |
| Theory | Resistance Sensor |
Product Description

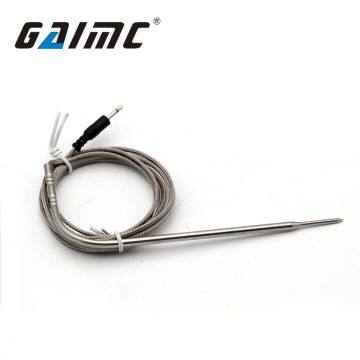

The BBQ cooking temperature probe is made with reliable NTC Thermistor and connected to high temperature wire, which is wrapped with insulated, heat resistant material, so as to facilitate long-distance temperature measurement and control and monitoring.
Features:
Typical wire : #22 to 28 AWG, up to 380 degC
Available with stepped housing for fast response
Additional resistance, curve or tolerance options may be possible. Connector, cable assembly and custom labeling and packaging options are also available.
GTS-N1003 | ||
B value (R25/R50) | 3950K, 4066K, 4070K, 4200K, 4537, 4250K, 4267K | |
R25 | 98.63 KΩ, 100 KΩ, 230 KΩ, 1000KΩ | |
Accuracy | ±1%,±2%,±3% | |
Temperature Range | -40~+300℃ | |
Probe
| Φ3, Φ4, Φ5, Φ6, or customized | |
SS304 pointed tip, round tip | ||
straight, bent | ||
Wire
| Silicon, PTFE, Stainless steel mesh | |
1m, 2m, or customized | ||
Connector
| Audio jack plug | 2.5mm, 3.5mm, 6.35mm |
straight, bent | ||
Others or to be advised | ||
Customized for you
(send us parameters or drawing reference)
How to order↓↓↓
please offer the following necessary info:
?Temperature range
? B&R value
? Application
? Probe size
? Wire length
? Wire end
NTC temperature sensor is mainly used in household air conditioner, auto air conditioner, refrigerator, stove, deep fryer, induction cooker, soybean milk machine, electric oven, kitchen utensils and appliances, floor heating,3d printers etc. temperature measurement and control.
