Renew Metal Panel Mount Push Button Micro Switch For Home Appliances
- ningbo/shanghai
- Other
- 7 days
You May Like
-
Renew Toggle Switch 6A Toggle Switch On OFF
-
Renew Micro Switch Elevator Limit Switch Door Switch Engine Limit Switch
-
Renew Micro Switch 16a Limit Switch
-
Renew Metal Panel Mount Push Button Micro Switch For Home Appliances
-
Renew Micro Switch Limit Switch
-
Renew Pin Plunger UL 15a Microswitch Limit Switch
Product Details
| Brand Name | RENEW | Place of Origin | China | |
| Model Number | RVMB2 | Protection Level | IP64 | |
| Max. Voltage | 250vac | Max. Current | 16a | |
| Operating Temperature | -25+80 |
Product Description

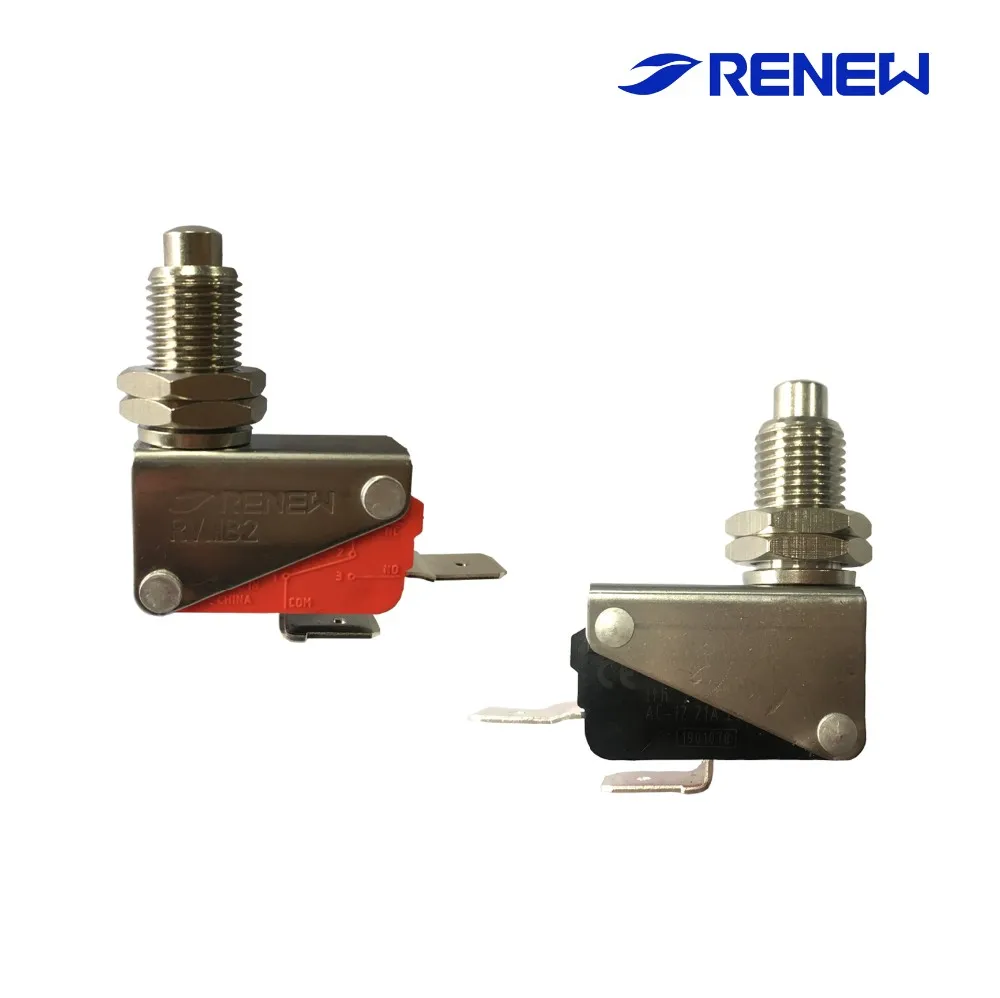

Renew Metal Panel Mount Push Button Micro Switch For Home Appliances
P/N: RV series micro switch metal panel mount button micro switch
Model No.:RVMB2
Rated data and performance of micro switch RV type
Item Type | RV-21 RV-16 RV-15 RV-11 RV-10 | |
Allowable operating speed | 0.1mm~1m/s (pin plunge type) | |
Allowable operating frequency | Mechanical 600 operations/min Electrical 30 operations/min | |
Insulation resistance | 100 mΩ min. (at 500V DC) | |
Contact resistance (initial value ) | Max 15mΩ | |
Dielectric strength | Between the non-continious terminals | AC 1000V 50/60HZ for 1min |
Between non voltage metal parts and each terminal | AC 2000V 50/60HZ for 1min | |
Between the grounding and the each terminal | ||
Vibration resistance | Malfunction | 10 to 55HZ, 1.5mm double amplitude (contact gap is less than 1ms ) |
Shock resistance | OF 0.49N type: less 98m/s2 OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2 | |
Expected Life | Mechanical life (order OT) | 50,000,000 operations min. (frequency is 60 operations/min) |
Electrical life(resistive load ) | 100,000 operations min. (frequency is 20 operations/min) | |
Ambient operation temperature & Ambient humidity | -25~+80(with no icing ), 85%RH max.(+5~35) | |
Contact material | AgNi alloy ; AgCdO alloy (not in the ROHS order ) | |
Weight | Approx. 6.2g(pin plunger type ) | |
Remark : micro switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life of micro switch and the capability of micro switch may be decreased because of the load capacity , so please consultation us freely .
Other information of micro switch RV type
| Rating: | 21A/16A/11A/6A, AC250V |
| Contact form | SPDT/SPST-NC/SPST-NO |
| Terminals: | #187/#250 England made/ Screw fixed terminal/Solder terminal |
| Maximum Operating Force | 50gf-400gf |
Ratings
| Model | Rated voltage | No-inductive load | Inductive load | ||||||
| Resistive load | Lamp load | Inductive load | Motor load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | ||
| RV-21 | 250VAC | 21A | 3A | 12A | 4A | ||||
8VDC 30VDC 125VDC 250VDC | 21A 14A 0.6A 0.3A | 5A 5A 0.1A 0.05A | 12A 12A 0.6A 0.3A | 7A 5A 0.1A 0.05A | |||||
| RV-16 | 250VAC | 16A | 2A | 10A | 3A | ||||
8VDC 30VDC 125VDC 250VDC | 16A 10A 0.6A 0.3A | 4A 4A 0.1A 0.05A | 10A 10A 0.6A 0.3A | 6A 4A 0.1A 0.05A | |||||
| RV-11 | 250VAC | 11A | 1.5A | 6A | 2A | ||||
8VDC 30VDC 125VDC 250VDC | 11A 6A 0.6A 0.3A | 3A 3A 0.1A 0.05A | 6A 6A 0.6A 0.3A | 3A 3A 0.1A 0.05A | |||||
| RV-6 | 250VAC | 6A | 3A | 4A | -- | ||||
8VDC 30VDC 125VDC 250VDC | 6A 6A 0.4A 0.3A | 3A 3A 0.1A 0.05A | 4A 4A 0.4A 0.2A | -- | |||||
WHY CHOOSE US?
1. More than 23 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".
2. High quality raw materials, long life and secure switches.
3. Dust-free plant, strict quality control, provide you satisfactory switches.
4. CE, CCC, UL. ROHS Certificates.
5. Plentiful stocks, solve your urgent needs.
?FAQ
1.Q:What are your payment terms? Do you accept paypal?
A: 100% T/T in advance. We do not have a paypal account at present.
2. Q: Do you have a price list?
A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.
3. Q: What are your warranties?
A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.
4. Q: Can you accept OEM?
A: Yes, need your trademark authorization letter.
5. Q: What about the package?
A: All use thickening export carton with "RENEW" mark, you specified mark or none.
6. Q: Do you provide sample?
A: Yes, free sample can provide to you, express freight collect.
7. Q: Do you accept small order quantity?
A: Yes, order quantity without limited.
8. Q: How about the delivery mothod?
A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS...... If not by sea or by air transport.
9.Q: Do you bear the freight charge?
A: We can offer you EXW, FOB or CIF price.
