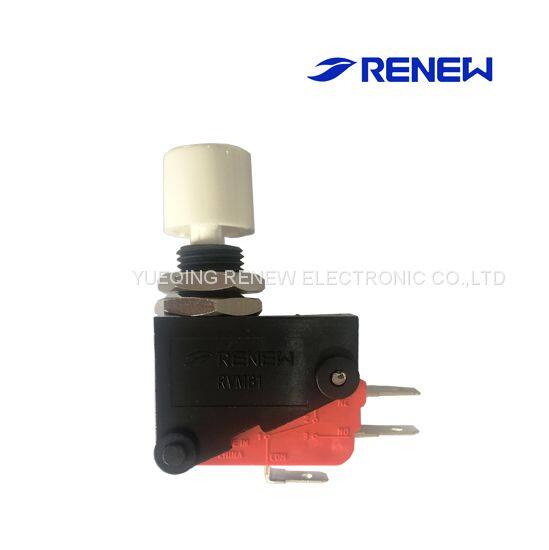

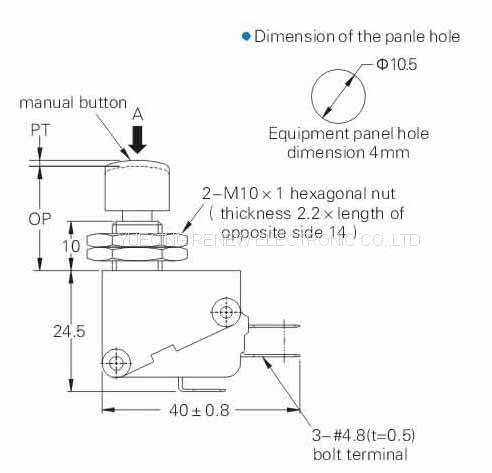

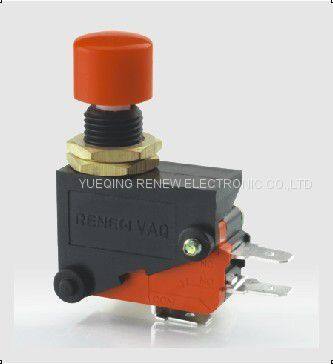

Renew RVMB1 Plastic Panel Mount Push Button 16A Micro Switch

Allowable operating speed

0.1mm~1m/sec(pin plunge type)

Allowable operating frequency

Mechanical 600times/min

Electrical  30times/min

Insulation resistance

Above 100 mΩ (use the DC500V insulation resistance test)

Contact resistance (initial value )

Max 15mΩ

Dielectric strength

Between the non-connect terminal

AC 1000V 50/60HZ for 1min

Between non voltage metal parts and each terminal

AC 2000V 50/60HZ for 1min

Between the grounding and the each terminal

Vibration resistance

Malfunction

10-55HZ double amplitude 1.5mm(contact gap is less than 1ms )

Shock resistance

OF 0.49N type: less 98m/s2

OF 1.96N,3.29N type :less 294m/s2

OF 0.98 N type : 196m/s2

Expected Life

Mechanical life (order OT)

50,000,000 operations min. (frequency is 60 operations/min)

Electrical life(resistive load )

100,000 operations min. (frequency is 20 operations/min)

Ambient operation temperature & Ambient humidity

-25~+80(with no icing ),

 85%RH max. (at +5~35)

Contact material

AgNi alloy ; AgCdO alloy (not in the ROHS order )

Weight

About 6.2g(pin plunger type )

8VDC

30VDC

125VDC

250VDC

21A

14A

0.6A

0.3A

5A

5A

0.1A

0.05A

12A

12A

0.6A

0.3A

7A

5A

0.1A

0.05A

8VDC

30VDC

125VDC

250VDC

16A

10A

0.6A

0.3A

4A

4A

0.1A

0.05A

10A

10A

0.6A

0.3A

6A

4A

0.1A

0.05A

8VDC

30VDC

125VDC

250VDC

11A

6A

0.6A

0.3A

3A

3A

0.1A

0.05A

6A

6A

0.6A

0.3A

3A

3A

0.1A

0.05A

8VDC

30VDC

125VDC

250VDC

6A

6A

0.4A

0.3A

3A

3A

0.1A

0.05A

4A

4A

0.4A

0.2A
