Home > Products > RV micro switch > RV-16-1C25 Micro Switch Snap Switch Electronic Switch

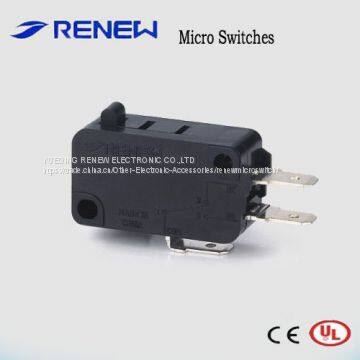

RV-16-1C25 Micro Switch Snap Switch Electronic Switch
US$ 0.3 - 0.6
/ Piece
500 Pieces(Min. Order)
- NINGBO/SHANGHAI
- T/T
- 1 days
You May Like
-
RV-161-1C25 Short Hinge Lever Type 16a 250v Micro Switch
-
RL8108 Adjustable Roller Arm Type Limit Switch Az-8108
-
RZ-15GQ22-B3 Z Series Pamel Mount Roller Plunger Type Omron Micro Switch
-
RV-161-1C25 Short Hinge Lever Type 16a 250v Micro Switch
-
Mini Operation Steel Wire Hinge Lever Type Micro Switch(UL/CE/CCC Certificate)
-
Short Roller Lever Micro Switches
Product Details
| Brand Name | RENEW | Place of Origin | China | |
| Model Number | RV-16-1C25 | Protection Level | IP40 | |
| Max. Voltage | 250 | Max. Current | 16 | |
| Operating Temperature | -25°+80° |
Product Description
Specifications
Place of Origin:
- Zhejiang, China (Mainland)
Brand Name:
- RENEW
Model Number:
- RV-16-1C25
Max. Current:
- 16A
Max. Voltage:
- 250V
Operating Temperature:
- -25~+80℃ (with no icing), 85%RH max. (+5~35℃)
Protection Level:
- IP40
Contact form:
- SPDT
Contact gap:
- 1mm
COLOR:
- red and black
Electrical life:
- 100,000 operations min.
Mechalical life:
- 20,000,000 operations min.
Terminal type:
- 0.187'' Quick Connect
Certification:
- CE, CCC, ROHS
Product Description
Pin plunger type snap action micro switch.
Model No.: RV-16-1C25
16A, 250VAC, CCC, CE, UL Approval.
Operating force: 200gf max.
Application:
Home appliance: micro oven, electric cooker, washing machine, electric heater, warmer, water fountain and so on.
Commercial appliance: Vending machine, electric toy, electric tools, duplicating machine and so on.
Machinery: Transport machinery, printing machinery, textile machinery and so on.
