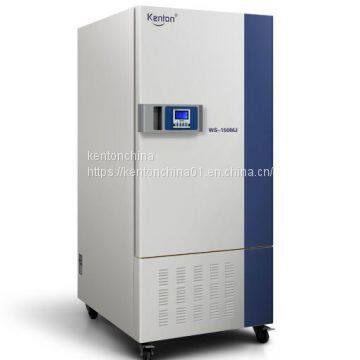

Mold incubator-WS(MJ) Seed plants germinate mold cell cultures

Kenton instrument is specialized in the production of mold and bacteria incubator widely used in scientific research, pharmaceutical, food, material science, cosmetics, tobacco, microbiology, chemical industry, electronics and other fields; It can provide stable temperature and humidity environment and simulate various climatic conditions.

1. Nominal volume: 150L, 250L, 400L;

2. Temperature control range: 0 ~ 65℃;

3. Tolerance of temperature fluctuation: ±0.5℃ (within the setting range of 10℃ ~ 40℃);

4. Tolerance of temperature uniformity: ±1℃ (within the setting range of 10℃ ~ 40℃);

5. Humidity control range: 40-95%rh (within the setting range of 10℃ ~ 40℃);

6. Humidity fluctuation: ±2%;

7. Power voltage: 220V/50Hz ac;

8. Input power: 1080W (150L) 1100W (250L) 1350W (400L);

9. Working environment: ambient temperature 10-30 ℃ relative humidity below 70%;

10. Refrigerant: R134;

11. Equipment category: class I.

12, note: this machine has the function of low temperature automatic frost, in the low temperature automatic frost temperature, humidity will have some fluctuations is normal phenomenon!

Detailed operation steps

Example: the equipment needs to start working after 120 minutes, 10 cycles, 2 stages for each cycle, 720 minutes for the first stage, temperature control at 30℃, humidity control at 60%RH; The second stage will take 1200 minutes with the temperature controlled at 10℃ and the humidity controlled at 50%RH.

A) long press the setting button for 4 seconds to enter the general setting interface;

B) right click, switch the cursor to the value of the total cycle, use the up and down keys, and change the set value of the total cycle to 10; Then click the setting key, the cursor stops on the value of the total number of segments, and change the set value of the total number of segments to 2. Then click the setting key, the cursor stops on the value of the appointment time, and the appointment time is changed to 120 minutes.

C) then click the setting button to enter the setting interface in the first section. The cursor stops at the temperature value and changes the temperature setting value to 30℃. Click the setting key to stop the cursor on the humidity value and change the humidity setting value to 60%RH. Then click the setting key to stop the cursor on the time value and change the time setting value to 720 minutes.

D) click the setting key to enter the setting state of paragraph 2, and modify the set values of temperature, humidity and time to 10℃, 50%RH and level 4 in accordance with the above method; Finally, long press the setting button for 4 seconds to exit the setting interface and return to the main interface. The setting is finished.

E) long button r/s for 2 seconds, and the controller starts timing according to the appointment time. , 120 minutes later, the program began to run the first paragraph;

F) after the program enters the first section, if the internal parameters in the timing mode is 0, then the timing starts, the running state shows: timing... ; If the timing mode is 1, the running state at this time is shown as: running... , when the temperature reaches the set value, the timing starts; If the timing mode is 2, the timing will start when both temperature and humidity reach the set value.

G) enter the second section after the end of the first section, enter the first section of the second cycle after the end of the second section, and so on; When the second section of the 10th cycle is finished, the program runs and closes all output. The buzzer will beep (press any key to silence the sound).

H) note: when humidity is set to 0, neither humidification nor dehumidification can be opened. It can be used as a biochemical tank.
