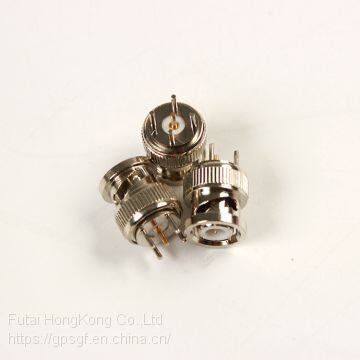

BNC Male Connector BNC Male PCB Connector
- 100000 Piece / Pieces per Month
- Foshan
- T/T L/C PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | FUTAI | Place of Origin | China | |
| Model Number | FT-Connector-178B | Type | BNC | |
| Application | RF | Gender | Male |
Product Description
BNC Male Connector BNC Male PCB Connector
Specifications:
The BNC connectors are for low power,quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad.They are widely used connect of the RF coaxial-cables in electronic equipment and instuments.Characteristic impedance 50Ω,75Ω.
Model | FT-Connector-178B | |
Major Technical Characteristics | ||
Type | BNC-C-JY3-178B | |
Impedance | 50Ω | |
Frequency Range | DC~4GHz | |
Center conductor retention force | ≥0.57 N | |
Insertion Loss | ≤0.20dB/3GHz | |
Insulation resistance | ≥5000MΩ | |
Voltage Standing Wave Ratio | Straight ≤1.22/3GHz | |
Right angle ≤1.30/3GHz | ||
Durability(mating) | ≥500(cycles) | |
Cable | RG1 | |
Material & Plating | ||
Body | Brass | Nickle plated |
Pin contact | Brass | Gold plated |
Resilient contact | Tin bronze | Nickel plated |
Insulator | PTFE | |
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146 silicone rubber | |
We can provide other materials and plating specifications according to customer's requirements.
