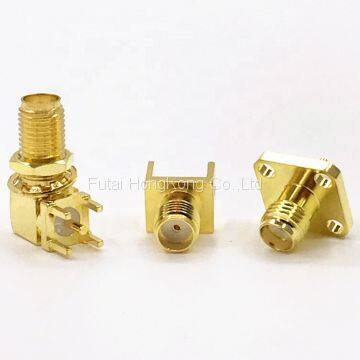

SMA Female PCB Connector
- 100000 Piece / Pieces per Month
- foshan
- T/T L/C PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | FUTAI | Place of Origin | China | |
| Model Number | FT-Connector-119 | Type | SMA | |
| Application | RF | Gender | Male |
Product Description
Model | FT-Connector-119 | |
Major Technical Characteristics | ||
Type | SMA-JE-119 | |
Impedance | 50Ω | |
Frequency Range | DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
Center conductor retention force | ≥0.28 N | |
Insertion Loss | ≤0.15dB/6GHz | |
Voltage Standing Wave Ratio | Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f | |
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f | ||
Durability(mating) | ≥500(cycles) | |
Cable | PCB | |
Material & Plating | ||
Body | Brass | Gold plated |
Pin contact | Brass | Gold plated |
Socket contact | Beryllium-copper Customized) | Gold plated |
Resilient contact | Beryllium-copper | Gold plated |
Insulator | PTFE | |
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146 silicone rubber | |
Our Company Other Products:
Futai HK Co.,Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
We are welcoming you to ask sample for testing ,welcome to our company website to do business.
