Home > Products > insulated conductor bar > china factory supply 250a 300a 400a single conductor bar with current collector for overhead crane
china factory supply 250a 300a 400a single conductor bar with current collector for overhead crane
USD $9.8 - $25.69
/ Piece
10 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Wuhan
- T/T L/C D/P D/A Credit Card PayPal Other Cash
- 7 days
You May Like
-
250a 300a 400a copper busbar /Aluminum single conductor bar for overhead crane
-
copper /Aluminum single conductor bar for overhead crane, current collector for crane
-
copper /Aluminum single conductor bar for overhead crane, current collector for crane
-
CE CCC ISO Certification aluminum copper conductor bar with current collector single busbar
-
100a 200a current collector single busbar high quality china factory supply aluminum conductor bar
-
China factory supply 100a 200a current collector single busbar for crane gantry crane
Product Details
| Brand Name | MARCH | Place of Origin | China | |
| Model Number | MCCBII |
Product Description
china factory supply 250a 300a 400a single conductor bar with current collector for overhead crane
Type -Aluminum

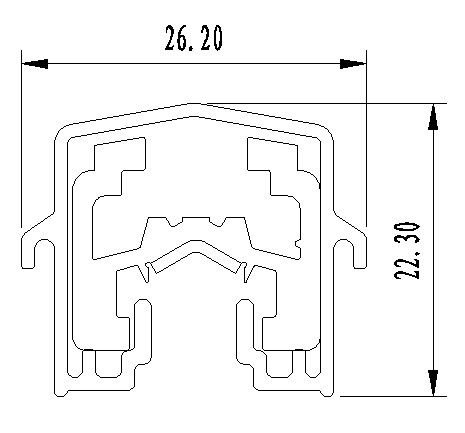

Aluminum conductor busbar
| Model | Rated current (A) | Section area (mm2) | MAX Voltage AC (v) | MAX Voltage DC (v) | Full load permissible temperature (Degree) | Weight (kg) |
| MCCBII-160A-AL | 160 | 102 | 550 | 700 | 25 | 1.98 |
| MCCBII-200A-AL | 200 | 104 | 2.13 | |||
| MCCBII-250A-AL | 250 | 110 | 2.19 | |||
| MCCBII-315A-AL | 315 | 120 | 2.32 | |||
| MCCBII-400A-AL | 400 | 157 | 2.81 | |||
| MCCBII-500A-AL | 500 | 196 | 3.11 |
Stand Length : 4.5 m
Application environment : Suitable for the out door and sea , resistance to certain chemicals
Features:
1.Quick and Easy Assembly
2.Excellent Ellectrial Conductivity
3.CAD/CAM designed for Stable Quality
MCCBII Accessories
1. Expansion Sections
| Rated Current (A) | Material | Weight(kg) | Standard Length |
| 60A | Galvanized steel | 3.22 | 4.5 M |
| 100A | 3.48 | ||
| 125A | 4.37 | ||
| 160A | Aluminum &Stainless steel | 3.19 | |
| 200A | 3.30 | ||
| 250A | 3.49 | ||
| 315A | 3.61 | ||
| 400A | 3.69 | ||
| 500A | 4.01 | ||
| 160A | Copper | 3.39 | |
| 250A | 3.97 | ||
| 400A | 4.9 |
Application Environment :
The expansion sections are required to compensate for therma expansion
MCCBII System can run for 150m without an expansion section
2.Power feed
| Item | Weight | Parts No. |
| <100A End Power Feed | 0.041 | 27105 |
| <250A End power Feed | 0.18 | 26105 |
| >250A End power Feed | 0.25 | 26106 |
3.Joints and Cover
| Items | Material | Weight | Parts No |
| Joints | Galvanized steel | 0.049 | 28111 |
| Copper | 0.031 | 28112 | |
| Aluminum | 0.082 | 28113 | |
| Joint Covers | PVC | 0.028 | 26104 |
4. Hanger Clamps
| Item | Material | Largest Installation Distance | Weight (kg) | Parts NO. |
| Anchor Clamp | PVC | 1.5 m | 0.04 | 27104 |
| 1-Pole Hanger Clamp | 0.03 | 28101 | ||
| 3-Pole Hanger Clamp | 0.06 | 27103 | ||
| 4-Pole Hanger Clamp | 0.07 | 27101 | ||
| 2-Bolt 4 pole Hanger | 0.08 | 27102 |
5. End Caps
| Material | Weight(kg) | Parts No. |
| Steel | 0.042 | 28107 |
| Copper | 0.04 | 28106 |
| Aluminum | 0.22 | 28105 |
| Transition Cover | 0.11 | 28104 |
100A carbon brush for crane current collector
| Rated current (A) | Head | Vertical movement (mm) | Horizontal movement (mm) | Setting height (mm) | Weight (kg) | Shoe material |
| 50 | 1 | - | - | - | 0.4 | Copper/Graphite |
| 100 | 1 | +80/-20 | -63/+63 | 102 | 0.8 | Copper/Graphite |
| 200 | 2 | +80/-20 | 63/+63 | 102 | 1.6 | Copper/Graphite |
| 250 | 1 | -50/+50 | -50/+50 | 230 | 3.5 | Copper /Graphite |
| 500 | 2 | -50/+50 | -50/+50 | 230 | 7 | Copper /Graphite |
Contact area : 360mm2 &1088 mm2
Shoe Pressure :0.007 k/mm2
Allowed Wearing : 5mm & 8mm
Max Speed: 200 m/min
Spring Load Weight :2.5KG & 8KG
