Drive Integrated Intelligent Stepper System
- Beijing or Shenzhen
- T/T
- 20 days
You May Like
Product Details
| Brand Name | MOTEC | Place of Origin | China | |
| Model Number | I2D Series |
Product Description
I2D drive integrated intelligent stepper system is a combination of intelligent stepper drive and stepper motor using servo technologies, resulting high performance and significant space and connecting wires saving for customers. It comes with features as below
l Power supply: 18V-48VDC
l RS485 networking up to 31 units
l Modbus compatible
l Integrated velocity profile generating function
l Integrated encoder (16384p/r)
l Relative motion&Absolute motion
l MOTEC software to set communication baud rate and unit address
l Microstep adjustable via configuration software
l Working current adjustable via configuration software
l CANopen compatible model available
l IP65 option available
Specifications
MODEL | FLANGE (mm) | HOLDING TORQUE (N.m) | RATE CURRENT (A) | INERTIA (g.cm) | WEIGHT (kg) | MOTOR LENGTH (mm) |
I2D610 | 60 | 1 | 3 | 240 | 0.86 | 56 |
I2D620 | 60 | 2 | 3 | 490 | 1.22 | 77 |
I2D630 | 60 | 3 | 3 | 690 | 1.40 | 86 |

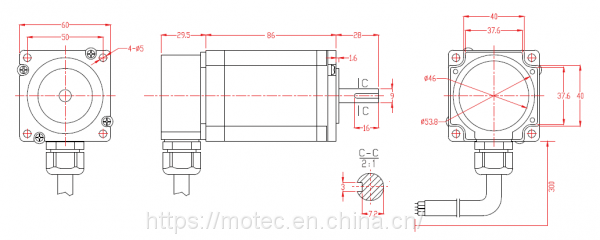

Dimensions（mm）
