NEMA11 Two-phase Stepper Motor
US$ 18 - 25
/ Piece
1 Piece(Min. Order)
- Beijing or Shenzhen
- T/T Cash
- 7 days
You May Like
Product Details
| Brand Name | MOTEC | Place of Origin | China | |
| Model Number | SM2-2** | Type | Hybrid | |
| Phase | 2 | Certification | CE, ROHS | |
| Current / Phase | 0.67A， 2-phase | Holding Torque | 0.06-0.12 | |
| Step Angle(degrees) | 1.8 |
Product Description
Recommended Stepper Drive：SD253, SD253B, SD266, SD266B

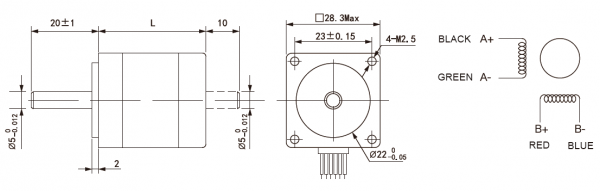

Motor Model | Flange(mm) | Holding torque (Nm) | Rated Current (A) | Rotational Inertia(g.cm2) | Weight(Kg) | Motor Length(mm) | Diameter of Axle(mm) | Length of Axle(mm) |
SM2-206L | 28 | 0.06 | 0.67 | 9 | 0.11 | 31 | 5 | 20 |
SM2-212L | 28 | 0.12 | 0.67 | 18 | 0.2 | 50 | 5 | 20 |
Optional 1. Double-ends with haft
