2019 Discount Price Provided Aluminum Window Door CNC Drilling and Milling Center

Product Application

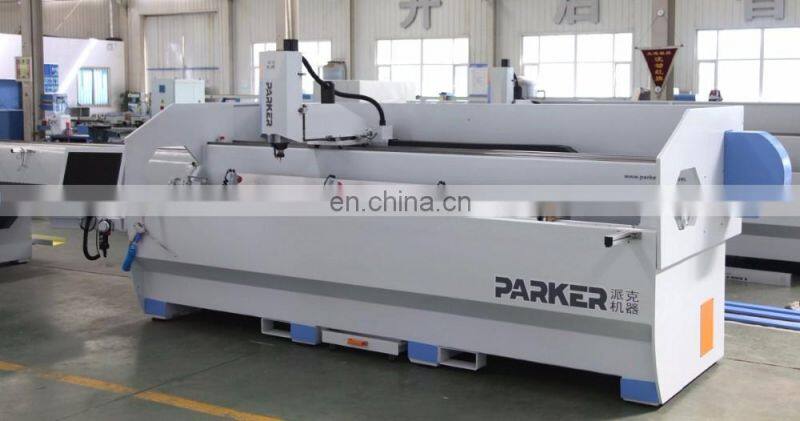

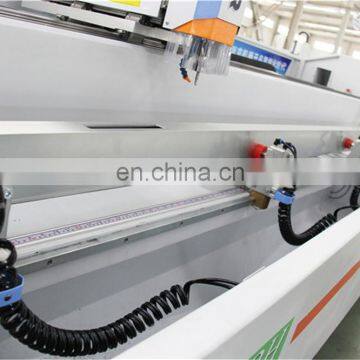

The high-speed drilling and milling center DMCC3H is suitable for aluminum doors and windows and curtain wall installation hole, water tank, and the keyhole shaped hole, tapping and end milling. Using the German PA control system, the intelligent CNC system and the simple and intuitive human-computer interface make the operation more convenient and quick. The rotary table can be converted between three positions at -90, 0 and +90 degrees, and the milling process can be accomplished by one clip.

Main Features

1. It is suitable for all kinds of aluminum profile and curtain wall aluminum profile, such as installation hole, water groove, lock hole, shape hole, end milling and tapping.

2. The high speed motorized spindle imported from Italy can be processed at any angle of 90 degrees with high efficiency.

3, the use of high-quality industrial special computer control system, has good user interface, graphics programming and processing tracking interface, truly achieve what you see is what you get.

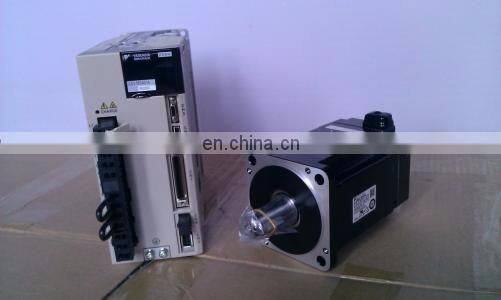

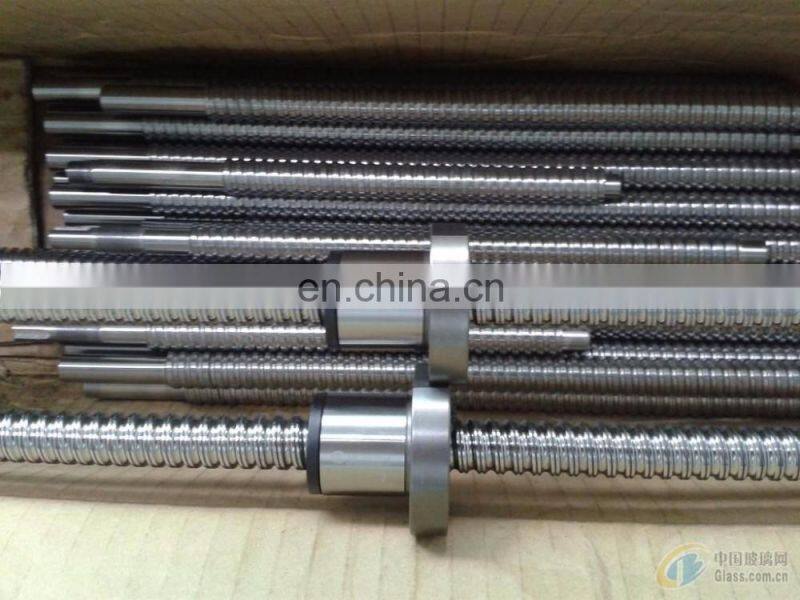

4. Adopt high quality imported servo motor, ball screw, linear guide and bearing and so on to ensure that the equipment has high machining precision.

5, with a 6 position tool library, automatic knife change (when the diameter of the 80~150 milling cutter, two adjacent cutters are empty).

6, with a semi closed protective cover, the safety is greatly improved, the position of the fixture can be automatically placed (with software support).

Machine Parts

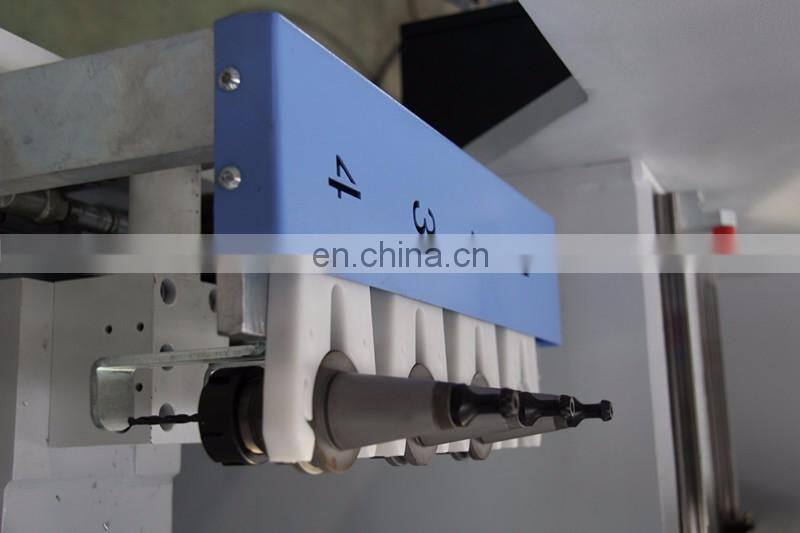

Name: 4 blades station

Original: Taiwan

High efficiency of automatic blade changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.

Main Parts

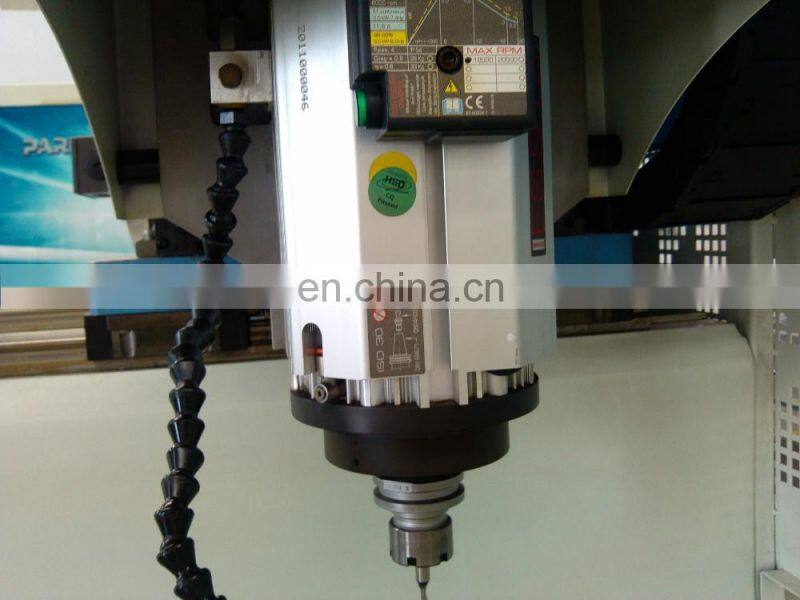

Name: Motorized Spindle
Brand: HSD
Original: Italy
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Brand: PA control systerm
Original: Germany
Original German PA numerical control system. With standard data control process can choose graphics and enter the coordinates directly carry on the processing.

The Systerm can use the CADCAM software drawing and processing. It is very practicality.

Main Parts

Main Parts

Main Parts

Main Features

Main Features

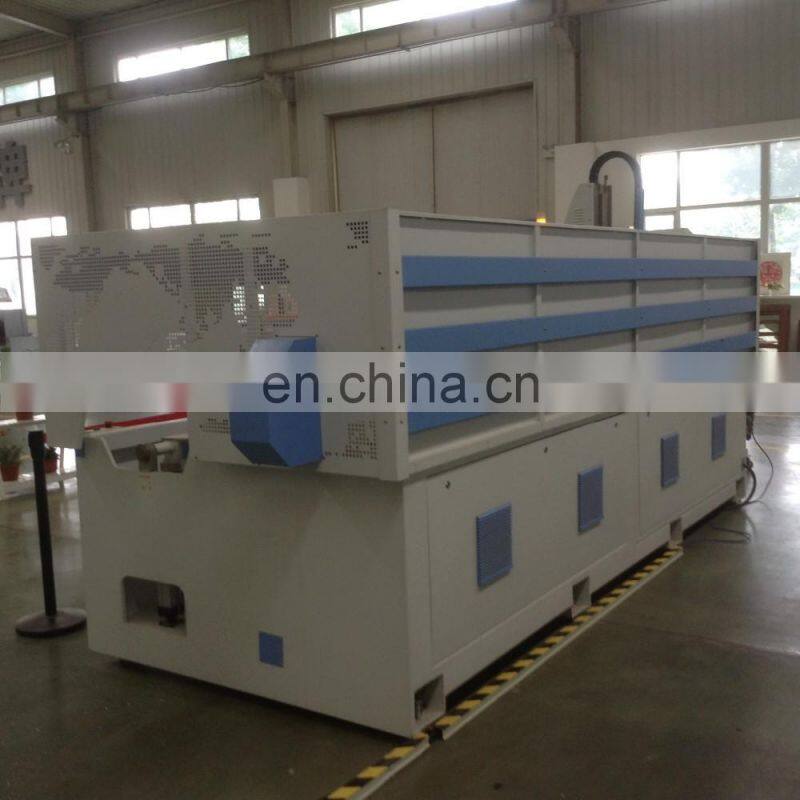

The protective file can be equiped to ensure the safe work environment.

Main Features

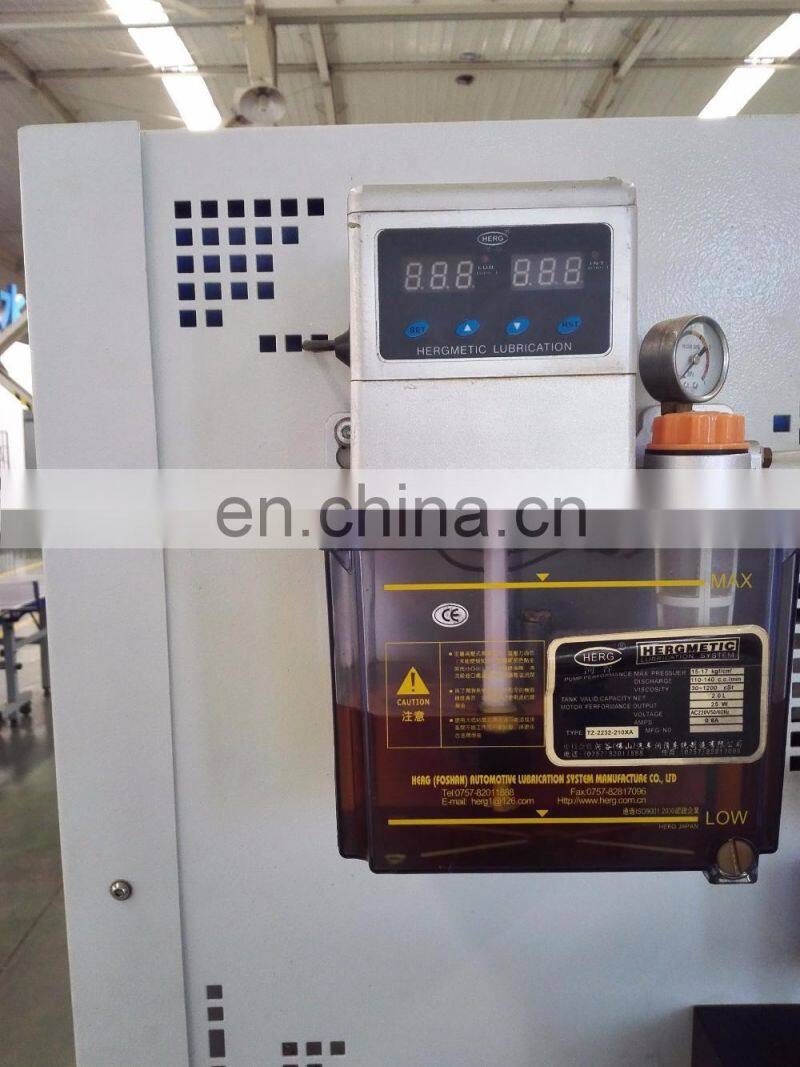

Lubracting the guid rail, ball screw and gear rack.

lengthen the parts lifetime.

PARKER IS DEVELOPING WITH THE WORLD.

Parker was founded in 2003, since the entry into the window door curtain wall machinery manufacturing field, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees, Parker Industrial Park covers an area of 70000㎡, Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.

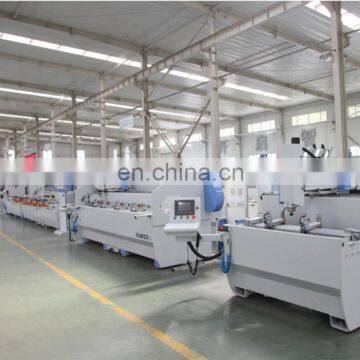

Parker industrial show.

  Parker manufacturing creates ecological management system of 8M that is unique and most proud of , and the human resources, raw materials, technology methods, environment, information etc. have been ongoing ascension, and improves the overall quality and core competitiveness of parker. Customers around the world are actively popularize and apply it, benefit a lot from it.
