Aluminum Parts Profile Cnc Plate Drilling Machine
- Qingdao
- T/T Credit Card
You May Like
-
CNC Fanuc Control Machining Center for Rail Way Vehicle LED Light Aluminum Profile
-
Fanuc Control System Dual Head CNC Machining Center for Aluminum Profile
-
Aluminum Profile 4 AXIS CNC Machining Center
-
4 Axis Aluminum Cnc Drilling Milling Machine
-
Aluminum Milling Drilling Machine With 3 Axis CNC Control
-
Cnc Drilling and Milling Machine for Aluminum and PVC Window Door
Product Details
| Brand Name | PARKER | Place of Origin | Shandong, China | |
| Type | Horizontal | Certification | CE certificaiton | |
| After-sales Service Provided | Overseas service center available | Warranty | lifetime | |
| Weight | 3000kg | Dimension(L*W*H) | 4525*1630*1900mm | |
| Voltage | 380V/50Hz | Condition | New | |
| Power(W) | 9KW |
Product Description

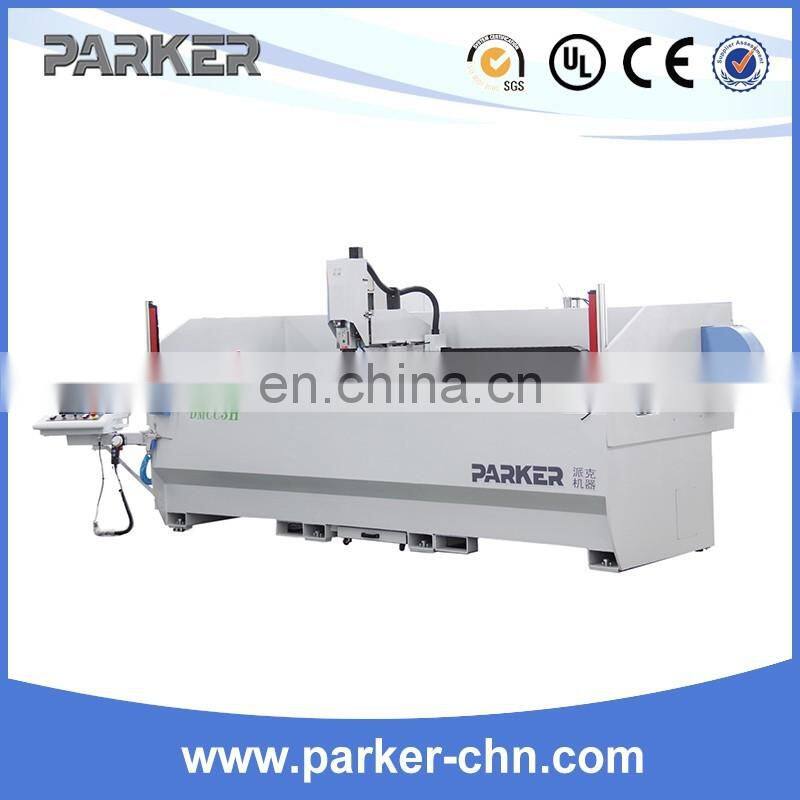

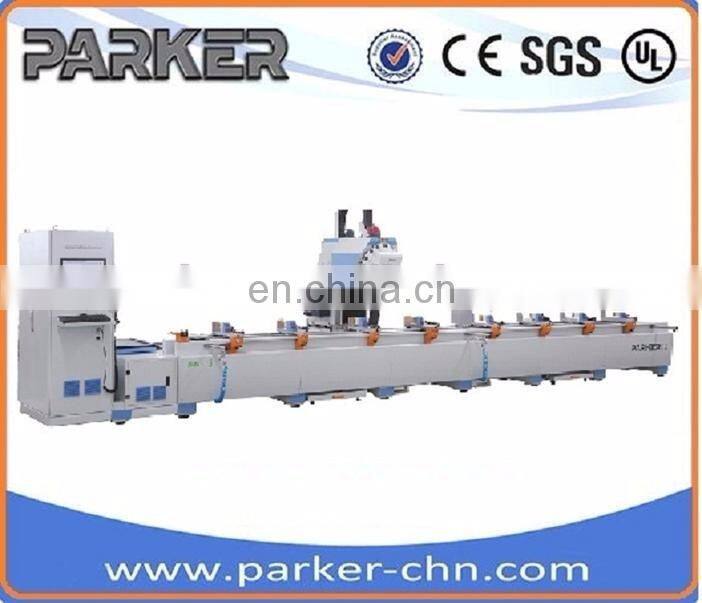

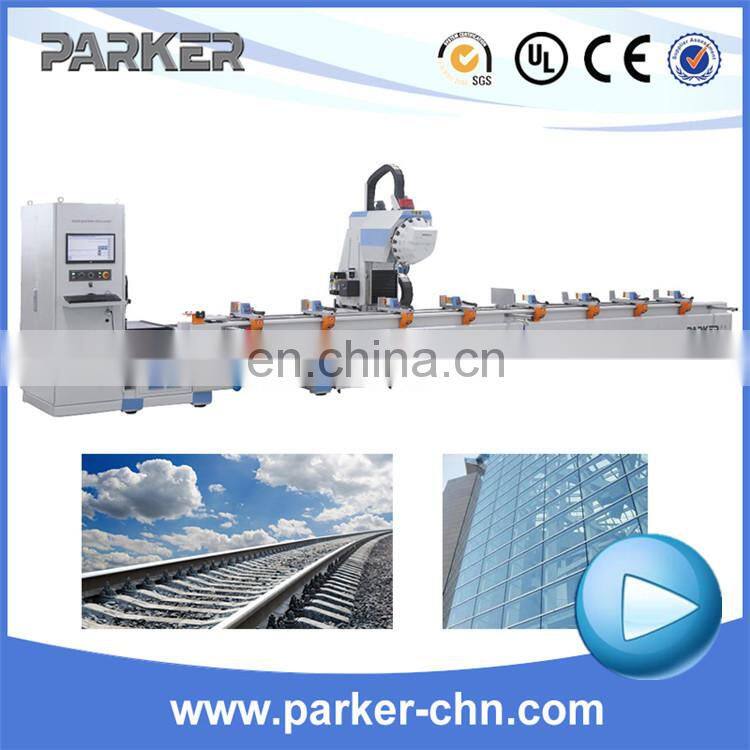

Aluminum parts profile cnc plate drilling machine
Model: DMCC3H
Features:
1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
4.It adopts vegetable oil micro crystal line cooling system to improve the tool life without poison and pollution.
5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.
6.It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
Parameter:
X axis Stroke | 3600mm |
Y axis Stroke | 300mm |
Z axis Stroke | 200mm |
X axis Speed | 0~140m/min |
| Y axis Speed | 0~75m/min |
Z axis Speed | 0~75m/min |
Main spindle speed and Power | 18000rpm/9kw |
Work table position | -90°,0°,+90° |
Cutter size | 10mm, 8mm, 5mm,4mm,3mm |
Air Pressure | 0.5~0.8MPa |
Voltage | 380V/50Hz ( can change as requirements) |
Cutter cooling | Auto spraying and cooling |
Processing character | Can process three sides of profile per time loading profile |
Dimension:(L×W×H) | 4525×1630×1900mm |

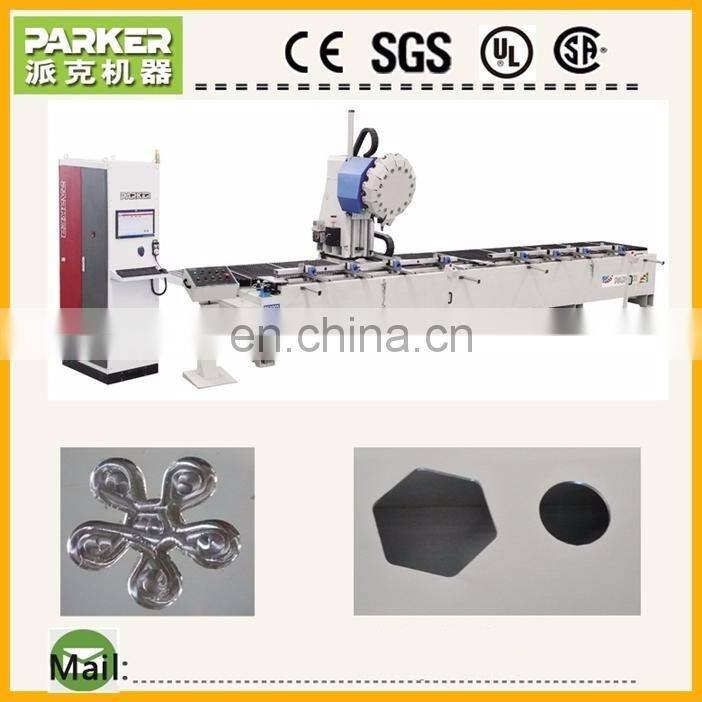

Other Aluminium Window Door Machines:

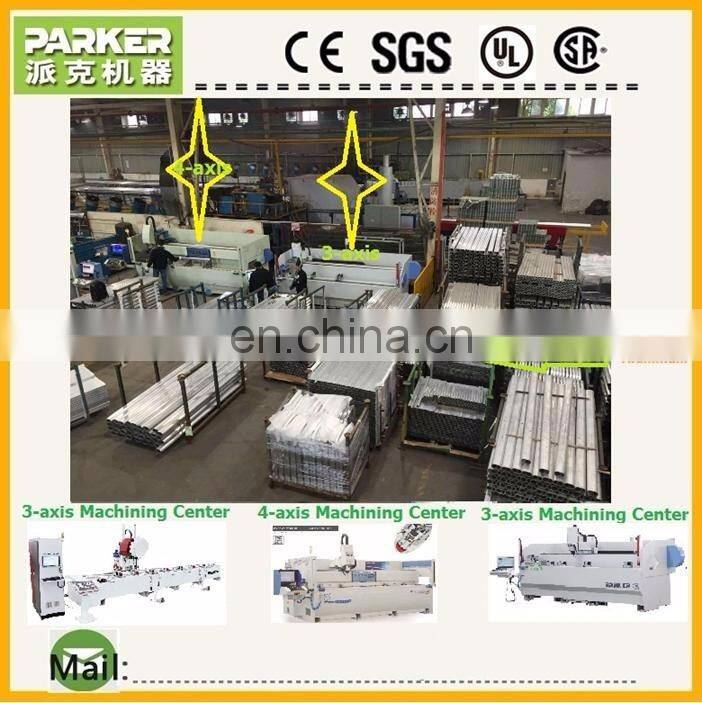

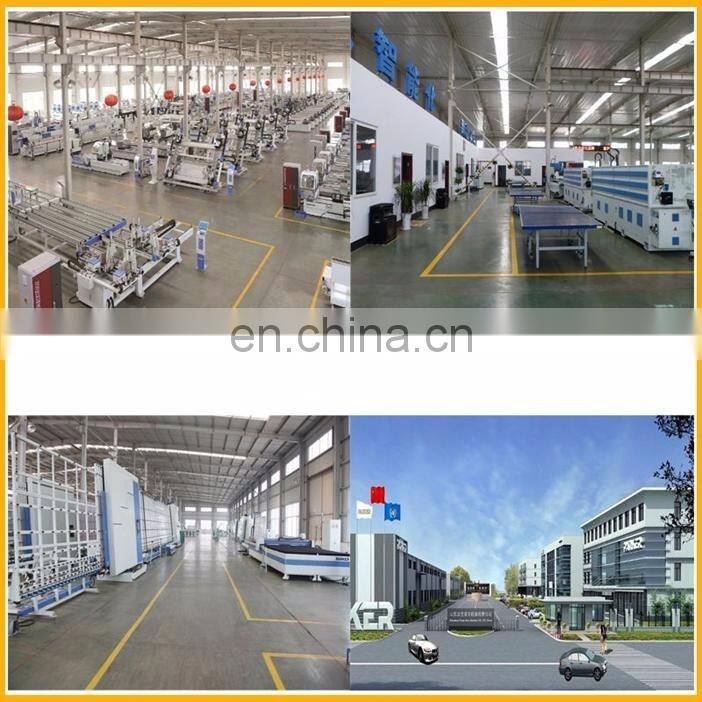

Factory:
Samples:

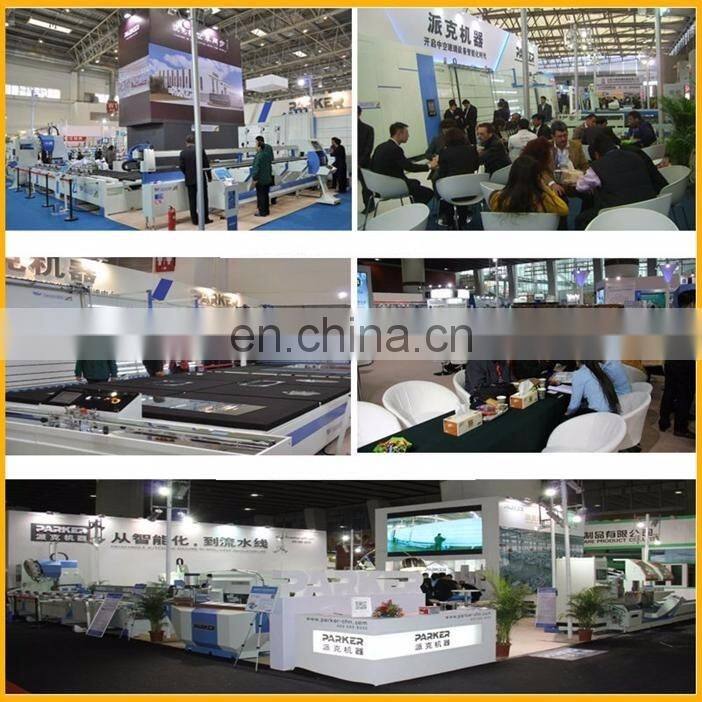

Exhibitions:
;

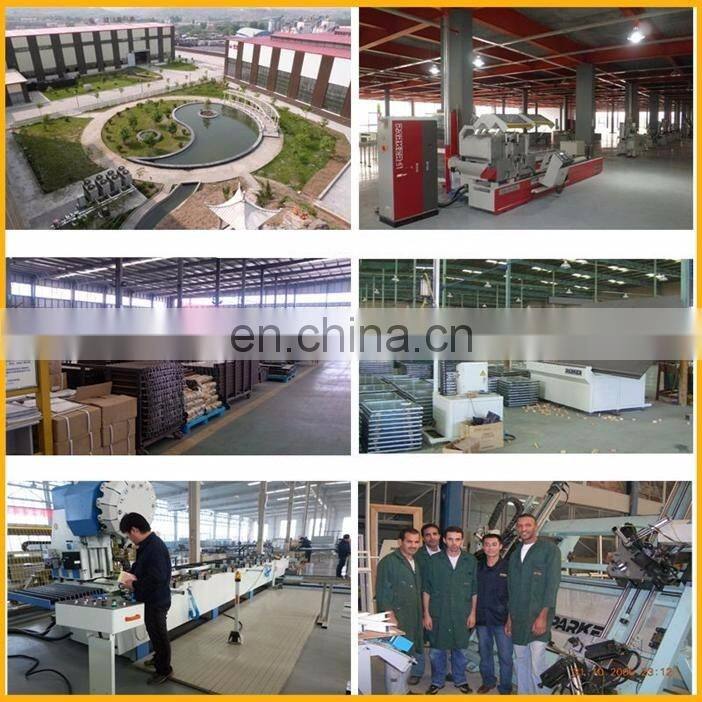

Factories of Customers:
Customers Visit:
Parker Service Team:
Packing & Loading:
