Automatic Aluminum Double Head Cutting Machine
- Qingdao
- T/T Credit Card
You May Like
-
Double Head Aluminium Saw Cutting Machines
-
Aluminium Window Frame Making Machine/aluminum Windows Corner Crimping Machine Corner Crimp Machine
-
Aluminum Window Double Corner Crimping Machine
-
Aluminum Automatic Window Door Double Corner Crimping Machine
-
High Quality Aluminum Profile Corner Crimping Machine
-
Aluminum Window Door Double Head Corner Crimping Machine
Product Details
| Brand Name | PARKER |
Product Description

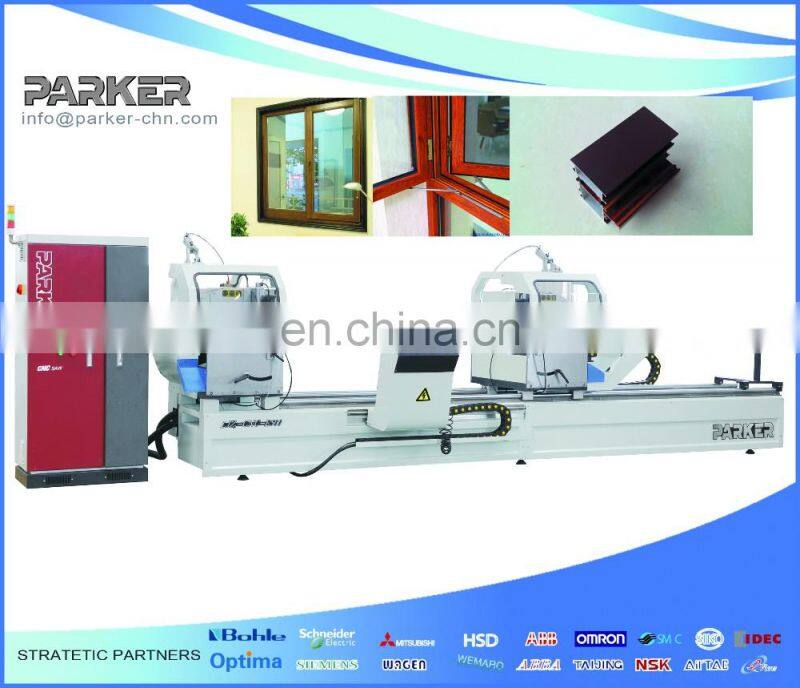

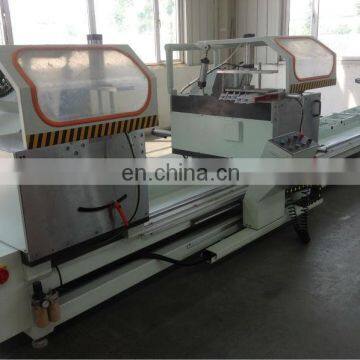

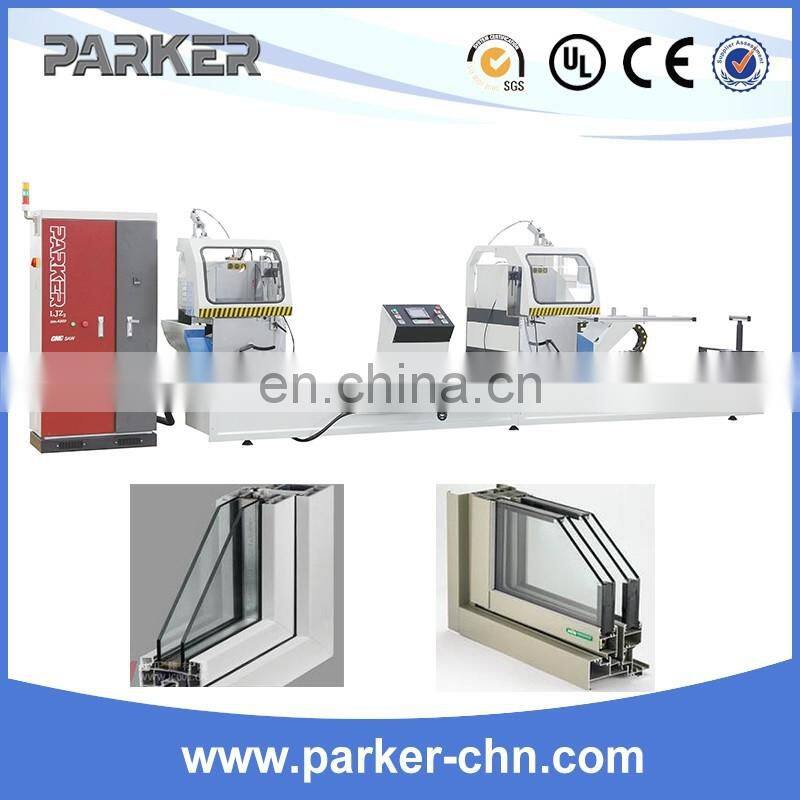

Aluminum CNC Cutting saw machine
LJZ2-CNC-E500 aluminum profile cutting machine is not only used for aluminum profile cutting, but also for corner connector cutting. Its feeding system adopts imported linear guide pair with high accuracy and long service life. This profile cutting saw also uses high helical pitch ball screw, featuring high accurate driving, locating and smooth working. Adopting CNC technique, it can achieve automatic cutting for various profiles
Feature
◆ It has large cutting range, hi-efficiency and perfect safe guards. It is suitable for large scale production.
◆ The structure is strong and of excellent rigidity and reliability, so it is impossible to be out of shape.
◆ The hi-quality imported special hard-metal saw makes cutting more precision.
◆ The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth.
◆ The gas-liquid damping cylinder realizes smooth feeding and steady moving.

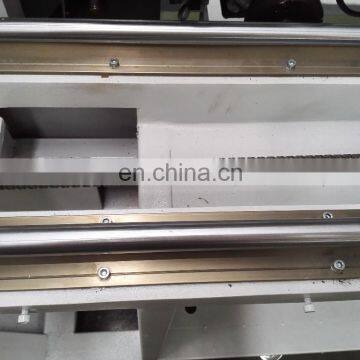

◆ The imported guide rails and the linear motion pair can realize high precision and accurate location.

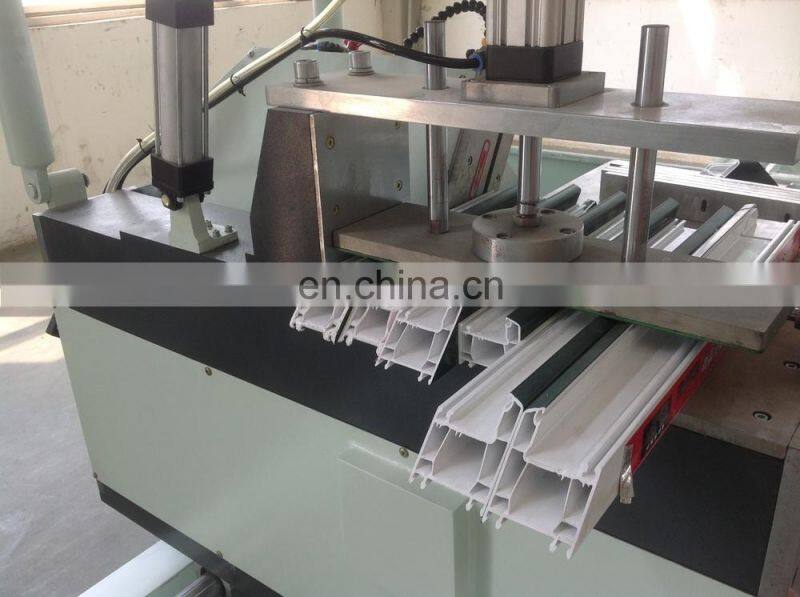

◆ The two-way location-and-clamping features high precision and steadiness.

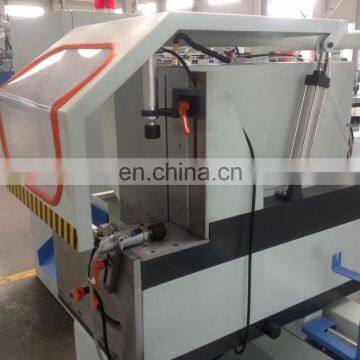

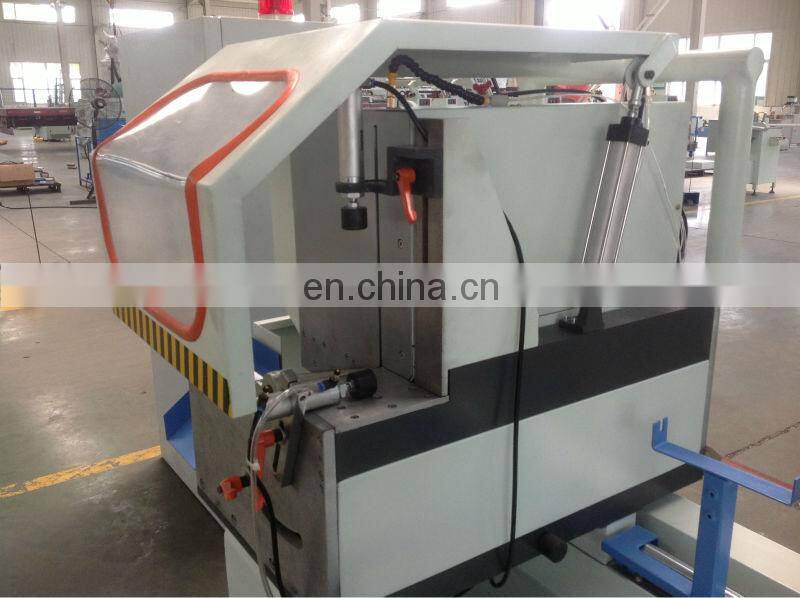

◆ The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere.
Parameter
Power: 5.9KW
Air pressure: 0.5-0.8MPa
Air consumption: 200L/min
Blade specification: Φ500×Φ30×4.4Z=120(standard size)
Cutting length: 400mm-4200mmCutting width: Max.135mm
Cutting height: Max.300mm
Cutting angle: 45° 67.5° 90°
Repeat locating length error: ±0.2mm
Cutting angle error: ±4′
Surface plainness: ±0.1mm
Surface roughness: Ra12.5µm
Overall dimension: 5500mmX1750mmX1990mm
Aluminum cutting saw machine video link
Parker Machinery Co.,ltd
/watch?v=hYwmgxfRge4
LJZ2-CNC-E500 CNC Double cutting machine
/watch?v=TN-E8b2g_DA
A8-500 Aluminum 3Axis Double Cutting Saw With CNC
/watch?v=ZPf0rh6d4pc
A9 Aluminum Profile Intelligent Cutting Center
/watch?v=Rrz37cu9qv8
LDJ-135 Single head any angle cutting machine
/watch?v=-kkaWFnVkQ8
LJMJ-CNC-500B Aluminum profile corner key cutting saw
/watch?v=lOG3FGOVrn0
LJZ2-500X4200 45 degree and 90 degree double head mitre saw
/watch?v=rBkr2evb35c
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
