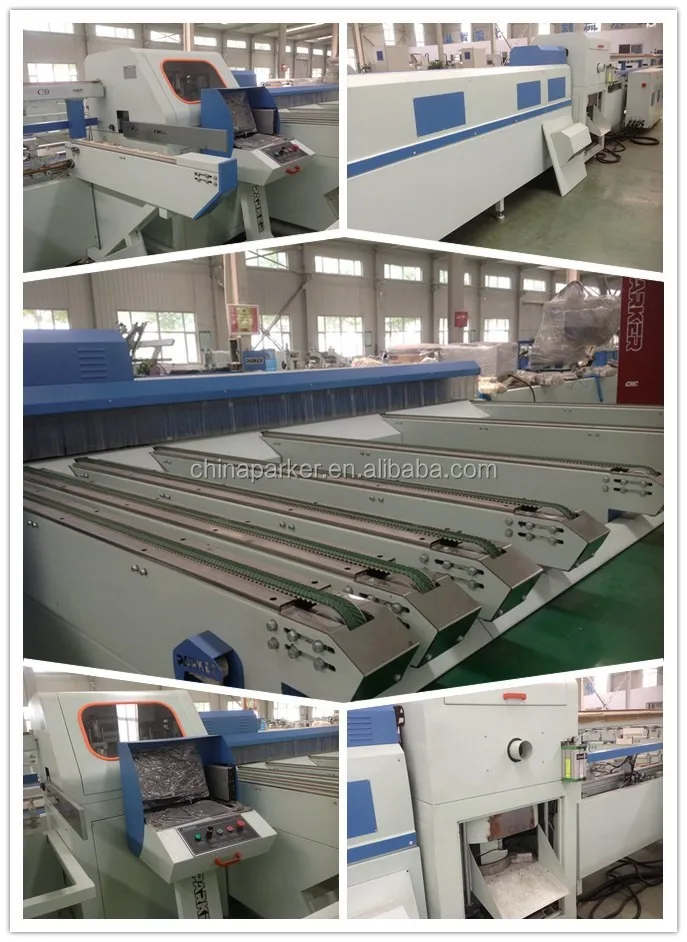

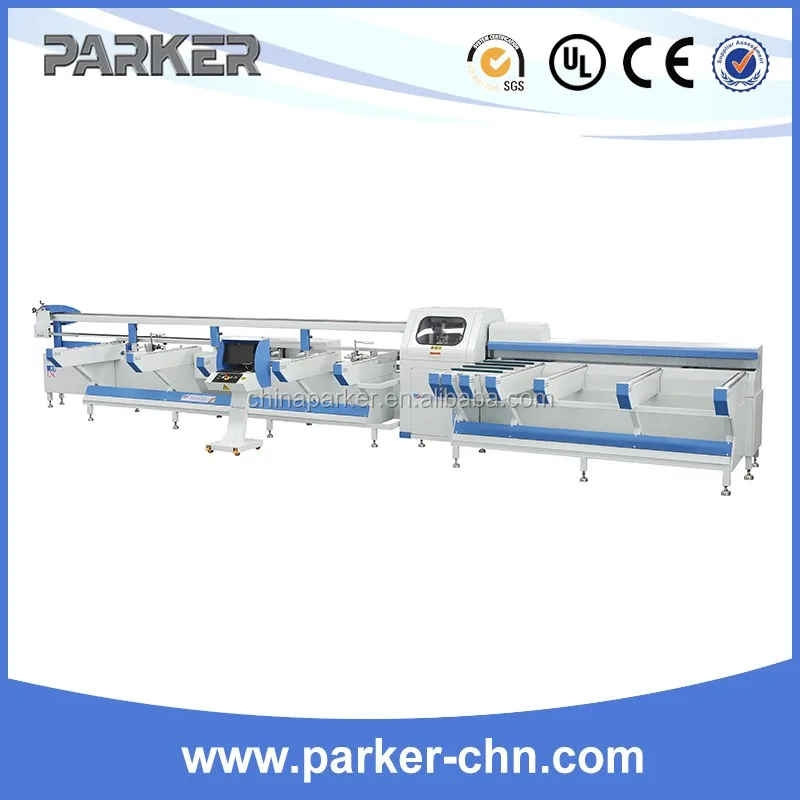

Parker Advanced Aluminium Profile Intelligent Cutting Center

INTRODUCTION

Parker has a CNC cutting center for aluminum profile, it can automatically edit the cutting program and automatically output the finished goods. With CNC cutting machine, customers can set any cutting length and angle to achieve automatic feeding, positioning, scanning, transmitting and outputting finished products. CNC cutting center can optimize profiles perfectly, change cutting angle, and collect smear metal and small waste profiles automatically. With CNC profile cutting machine (CNC cutting machine), we are able to automatically switch the cutting angle and automatically select the cutting route.

FEATURE

1. High Precision
There are three fixed saw blades. Air-liquid converter driven device avoids crawing of air cylinder drive and assures stable running of CNC profile cutting machines (CNC cutting machines).

2. High Efficiency
Computer controlled system sets process requests. Servo system drives automatic feed, cutting and unloading. Vertical and reciprocating cutting has no dry cutting and its efficiency is two times greater than that of double mitre saw.

3. High Security
CNC profile cutting machine or CNC cutting machines is with fully closed structure for safe and stable operation.

4. High Profile Saving Ratio
Special mechanical device can achieve the best optimum cutting and save 20% to30% profiles compared with double mitre saw. CNC profile cutting machine is installed with an automatic loading and unloading system, saving 50% to 70% manual work compared with double mitre saw.

5. Parker CNC cutting machine adopt Japanese, German and Italian famous brand servo motor, spindle drive motor and main electrical parts.

PARAMETER

Voltage : 380V 50 Hz

Total Power : 7.5 kW

Air Pressure : 0.5 to 0.8 MPa

Blade Specifications : Φ500 × Φ30 × 4.4 Z = 120 (Standard Size)

Cutting Angle : From -45 ° to 45 °

Overall Dimension :11000 mm × 1700 mm × 2400 mm

Weight : 3000 kg
