Digital Display Double Precision Mitre Saw / Aluminium Window Door Machinery

FOB Price

US$ 25,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	PARKER		Place of Origin	Shandong, China
Model Number	LJZ2-500*4200		After-sales Service Provided	Overseas service center available

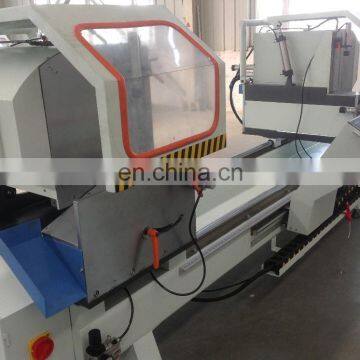

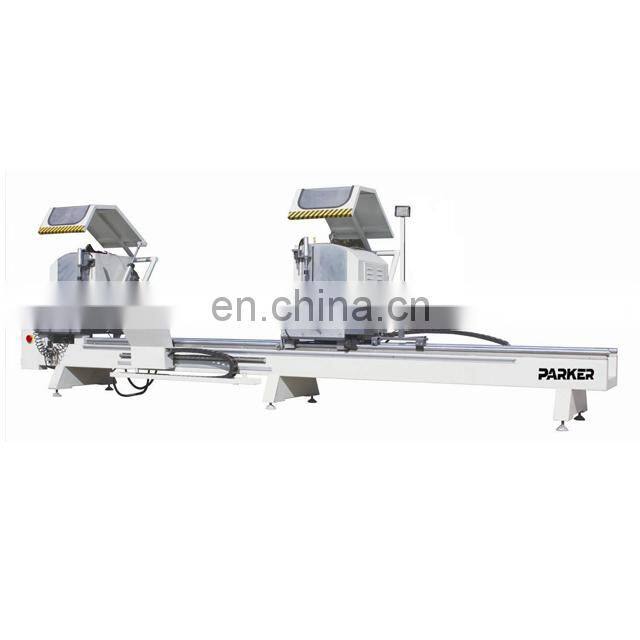

digital display double precision mitre saw / aluminium window door machinery

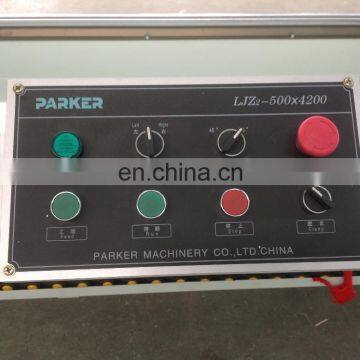

Model: LJZ2-500×4200

Feature:

LJZ2-500X4200 is used for cutting of aluminium, pvc and curtain wall profile. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the world. The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth feeding and steady moving.

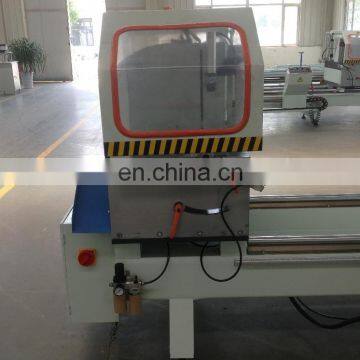

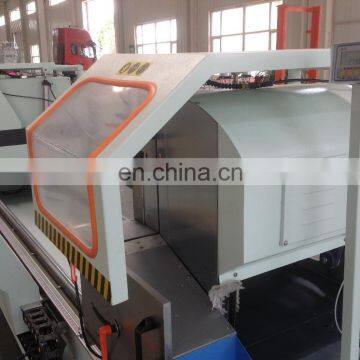

The automatically opening and closing protecting cover makes the operation safe and easy. The moving heads adopt imported linear bearing motion pair, and they features high precision.
he moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long structures, the saw has large cutting range.

Parameters:

Voltage:	380V 50HZ
Power:	4.4KW
Air pressure:	0.5-0.8MPa
Air consumption:	200L/min
Blade specification:	500304.4mm(standard size)
Cutting length:	400mm-4200mm
Cutting width:	Max.135mm
Cutting height:	Max.300mm
Cutting angle:	45° , 67.5 , 90°
Angle error	+/-4’
Repeat locating length error:	+/-0.2mm
Surface plainness:	+/-0.1mm
Surface roughness:	Ra12.5 Um
Overall dimension:	5500mmX1750mmX1990mm

Other Aluminium & Upvc Window Door Machines:

Factory:

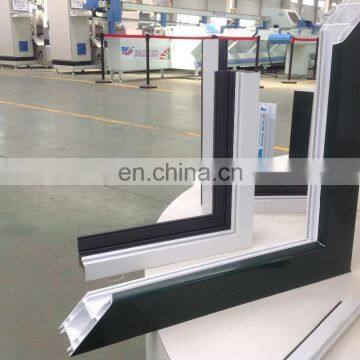

Samples:

Exhibitions:

Factories of Customers:

Customers Visit:

Parker Service Team:

Packing & Loading:
