Aluminium Corner Key Cutting Saw for Aluminium Window Door

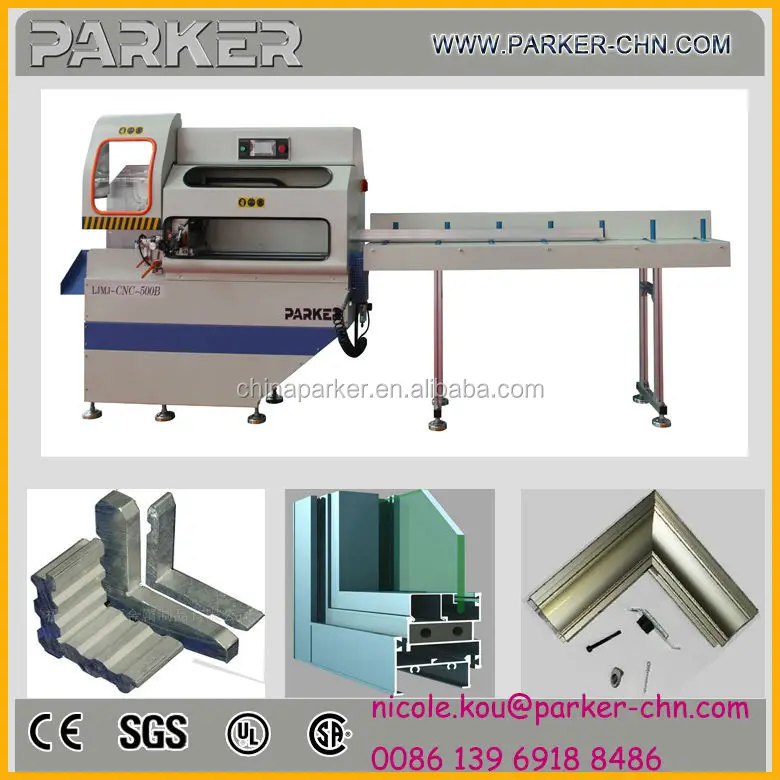

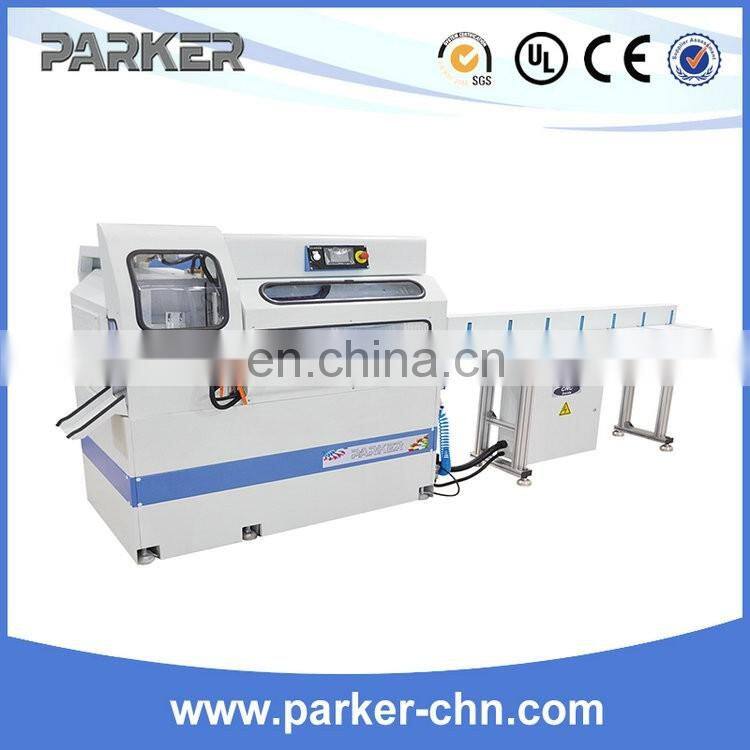

LJMJ-CNC-500B   Aluminium Profile Auto feeding Corner Key Cutting Saw

INTODUCTION

LJMJ-CNC-500B CNC corner key cutting saw is mainly used for corner connector of aluminum profile cutting or for plastic cutting. This corner connector cutting machine is well known for high efficiency, high precision and large scale production. It adopts imported carbide saw blades that give accurate processing and high endurance. In order to assure the cutting accuracy, we use OMRON PLC control system to drive the ball screw and use the main shaft to drive the WEMARO saw blade. Besides, this CNC corner key cutting saw (CNC corner connector cutting machine) is also equipped with automatic profile feeding device. We can realize automatic cutting and counting.

FEATURES

1.Used for corner connector of aluminium profile cutting and for plastic cutting

2.Imported carbide saw blade give accurate processing and high endurance.

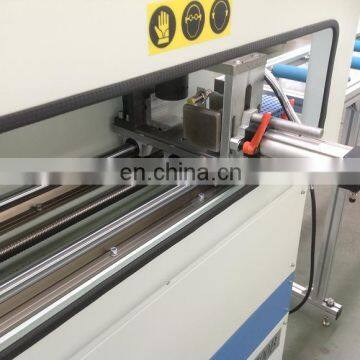

3.Linear bearing motion pair gave less resistance force and ensures high processing accuracy.

4.Auto profile feeding device is available.

5.Suitable for large volume production.

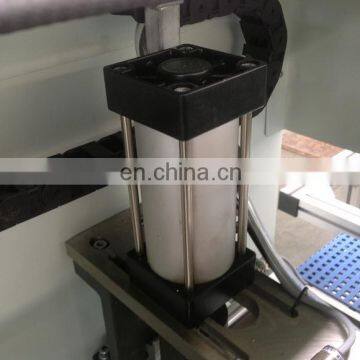

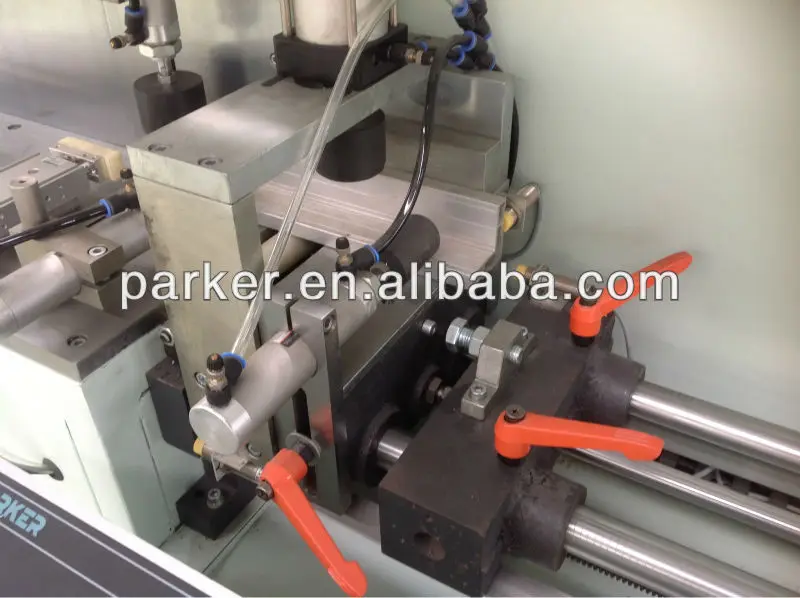

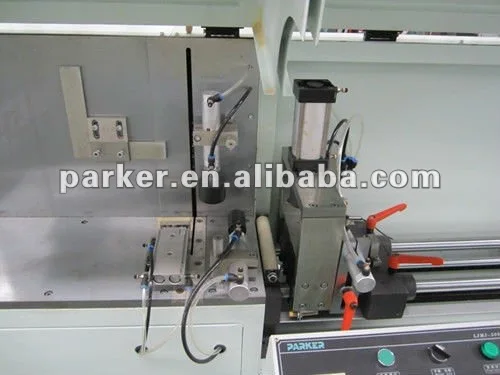

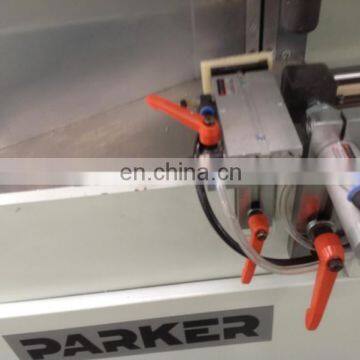

6.Clamping and feeding process adopt pneumatic control. It has features of high automation, reliability and production efficiency.

7.It adopts automatic counters.

TECHNIQUE PARAMETER

1.Voltage: 380V/50HZ/2.6Kw

2.Air pressure: 0.5-0.8MPa

3.Air consumption： 150L/min

4.Blade specification: Φ500xΦ30x4.4mm, Z=120

5.Feeding speed: 0-3m/min

6.Rotary speed 2840rpm

7.Cutting length: Max700mm Min3mm

8.Cutting width: Max 140mm

9.Cutting height: Max 140mm

10.Surface plainness: mm

11.Surface harshness： Ra12.5 µ m

12.Overall dimension:1500x1600x1600mm

13.Weight:800KG
