Product Details
| Brand Name | PARKER |
Product Description

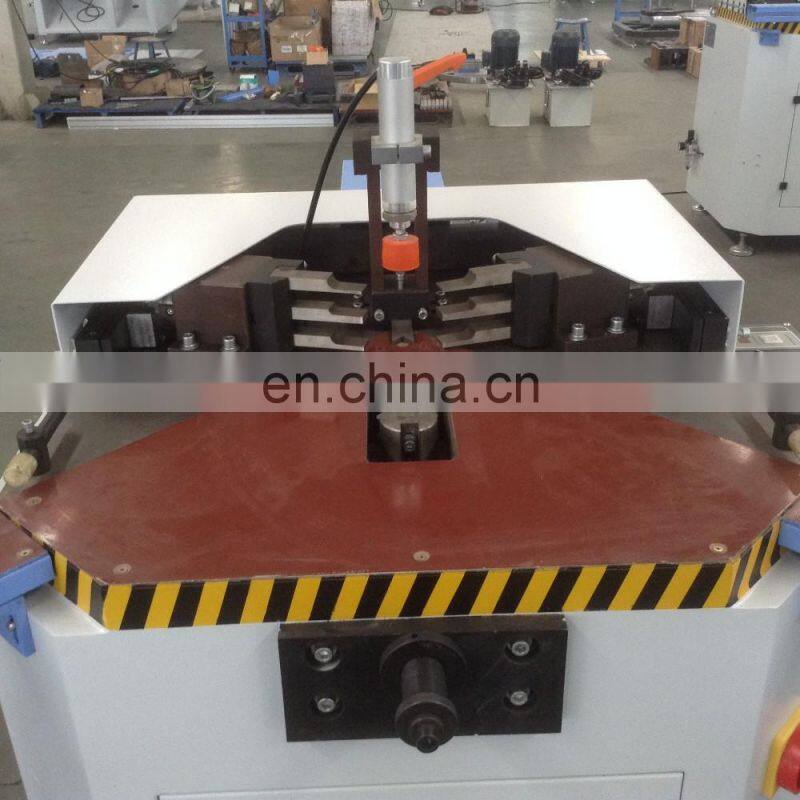

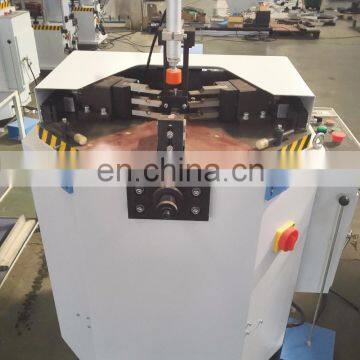

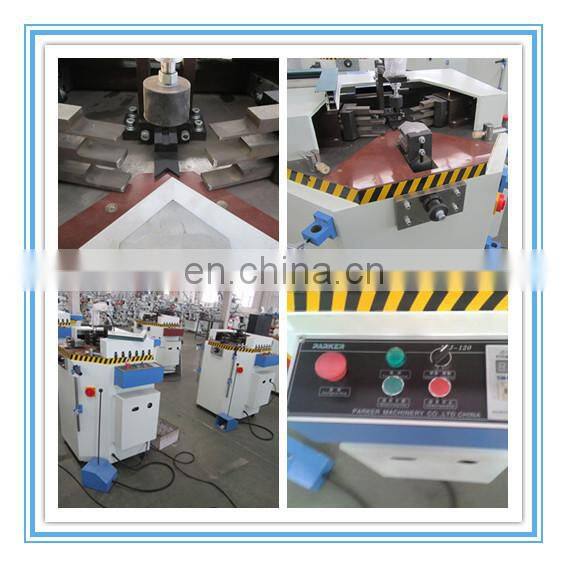

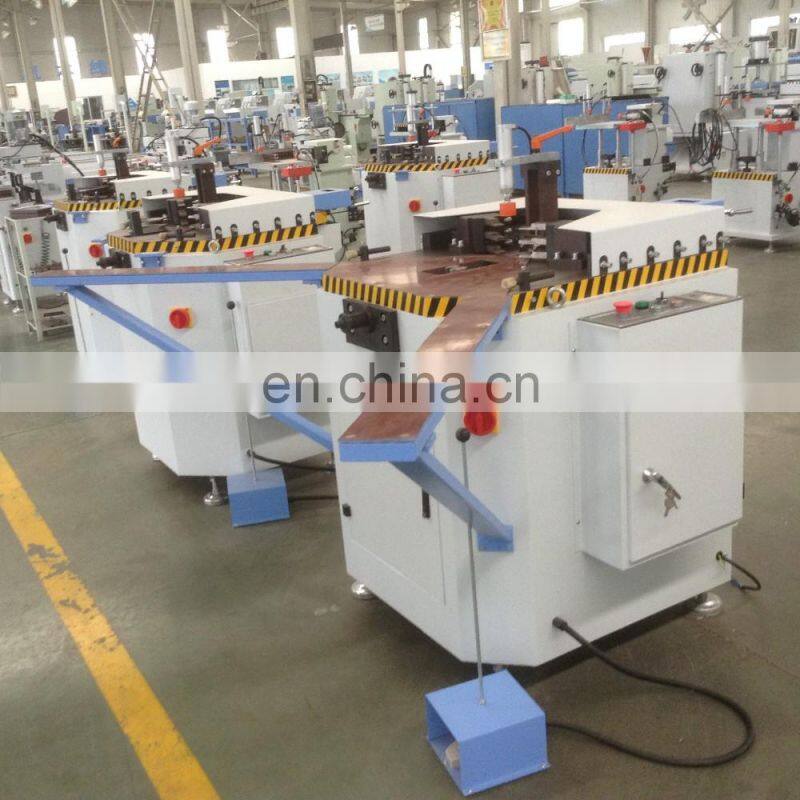

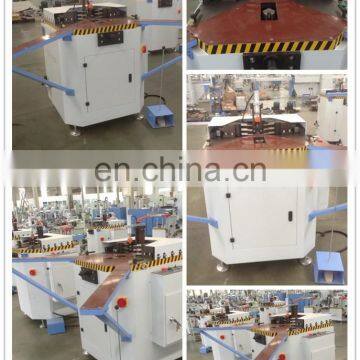

Aluminum hydraulic corner crimping machine
LJJ-120 hydraulic corner crimping machine adopts new mechanical link structure to make corner assembling synchronously. Left and right punching heads feed synchronously to avoid deformation to make window corner connection more solid. Synchronous feeding structure makes the adjustment simple and easy. The blades can be adjusted up and down relatively by the threads. This single head crimping machine or hydraulic corner crimping machine can be equipped with single blade or multipoint blades, making more reliable corner forming, more efficient work, more precise manufacturing and more excellent quality.
Feature
2. Hydraulic corner crimping machine features less processing error, easier operation and better processing quality.
3. Screw adjusts combining tool's distance, making the tool setting convenient.
4. Single head crimping machine can be equipped with multi-position combining tool available to process thermal bridge aluminum.
Parameter
Joint Seam Error ≤ 0.15 mm
Power Supply 380V 50 Hz (Three Phase, Four Wire)
Input Power 1.5 kW
Hydraulic System Pressure 15 Mpa
Air Pressure 0.5 to 0.8 Mpa
Air Consumption 2 L/min
Oil Tank Capacity 20 L
Width of Profile 120 mm
Overall Dimension 1000 mm × 1200 mm × 1200 mm
Weight of Single Head Crimping Machine 360 kg
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate

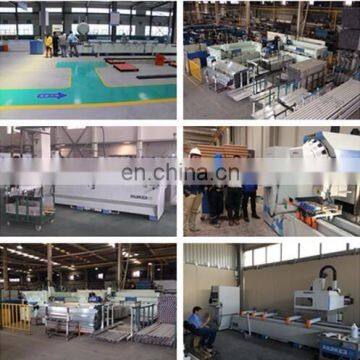

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
