Aluminium Window Door Cutting Saw Cutting Machine

INTRODUCTION

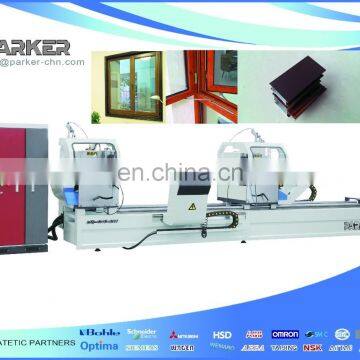

Double head cutting saw is mainly utilized for accurate and efficient cutting for aluminum, PVC and curtain wall profiles. This CNC cutting machine adopts the imported special hard-metal saw that can cut aluminum alloy doors and windows with high precision and efficiency. The cutting precision has reached the advanced level in the world. CNC double head cutting saw ensures a highly accurate reloading position and is convenient for operation. This CNC cutting machine equipped with computer control system can control the cutting length precisely.

FEATURES

1.It has large cutting range, hi-efficiency and perfect safe guards. It is suitable for large scale production.

2.The structure is strong and of excellent rigidity and reliability, so it is impossible to be out of shape.

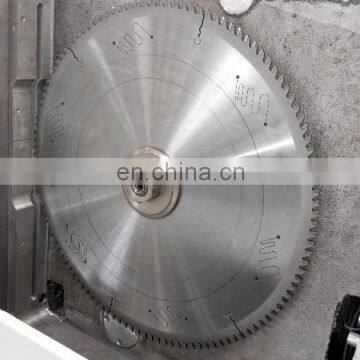

3.The hi-quality imported special hard-metal saw makes cutting more precision.

4.The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth.

5.The gas-liquid damping cylinder realizes smooth feeding and steady moving.

6.The imported guide rails and the linear motion pair can realize high precision and accurate location.

7.The two-way location-and-clamping features high precision and steadiness.

8.The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere.

Parameter:

Voltage: 380V 50HZ
Power: 5.9KW
Air pressure: 0.5-0.8MPa
Air consumption: 200L/min
Blade specification: Φ500XΦ30X4.4 Z=120(standard size)
Cutting length: 400mm-4200mm
Cutting width: Max.135mm
Cutting height: Max.300mm
Cutting angle: 45° 67.5° 90°
Repeat locating length error: ±0.2mm
Surface plainness: ±4′
Surface roughness: Ra12.5μm
Overall dimension: 5500mmX1750mmX1990mm
