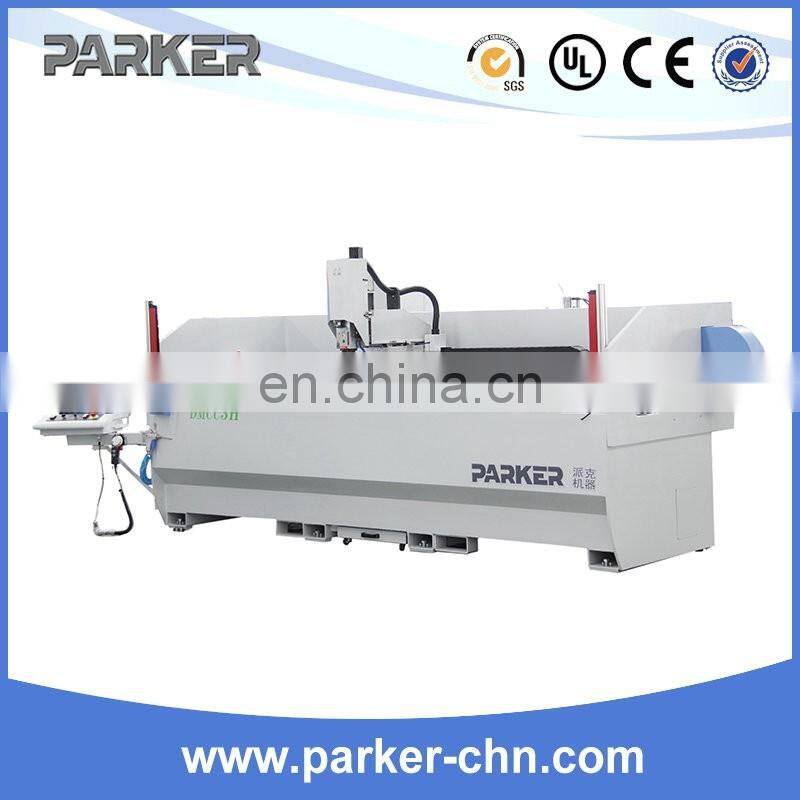

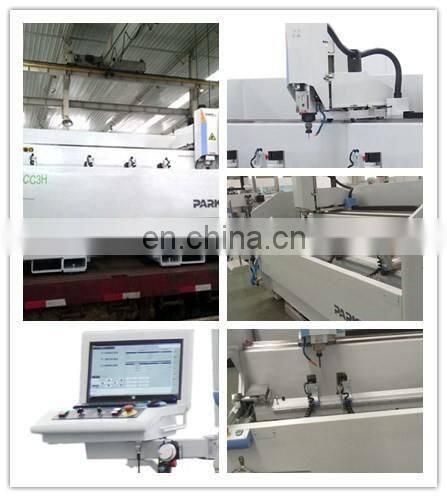

Cnc Milling and Drilling Aluminum Curtain Wall Machine

Description

1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.

2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.

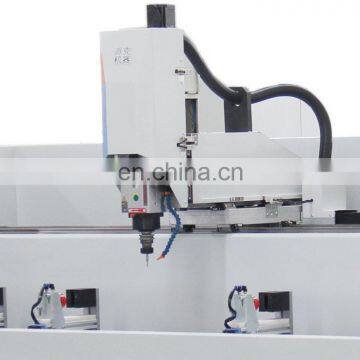

3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.

4.It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.

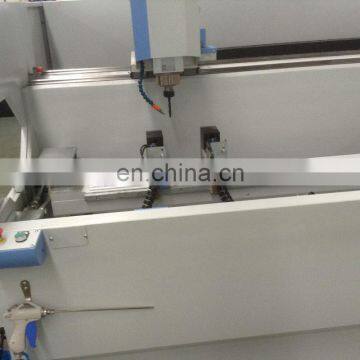

5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.

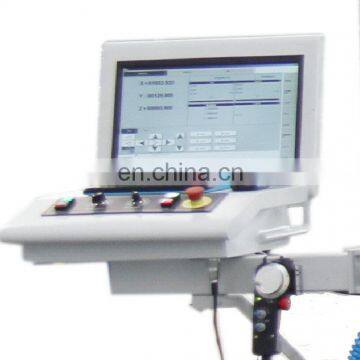

6.It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.

7.Application:Aluminum Architecture Material/PVC Window Door Profiles/Wooden Profiles/Railway Steel Profiles/Curtain Wall and Facade Lock Hardware etc.

Parameters of High-Speed CNC Profile Machining Center

• X axis Stroke:3200mm
• Y axis Stroke:300mm
• Z axis Stroke:200mm
• X axis Speed:0~140m/min
• Y axis Speed:0~75m/min
• Z axis Speed:0~75m/min
• Main spindle speed and Power:18000rpm/3kw
• Work table position:-90°,0°,+90°(Three degree)
• Cutter size: ER25-Φ8(Without Cutter or Within Storage and Max. Four Cutters)
• Air Pressure:0.5~0.8MPa
• Voltage:380V/50Hz
• Power:6kw
• Cutter cooling:Auto spraying and cooling
• Processing dimension:(W×H×L):160×160×3200mm
• Processing character:Can process three sides of profile per time loading profile
• Dimension:(L×W×H):4525×1630×1900mm

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.

During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.

1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement

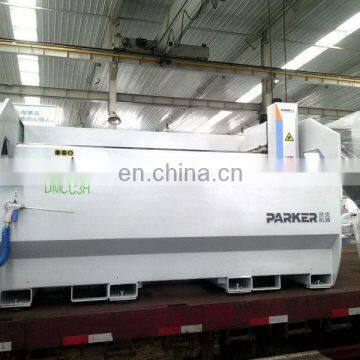

1. When can we arrange shippment?
We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
