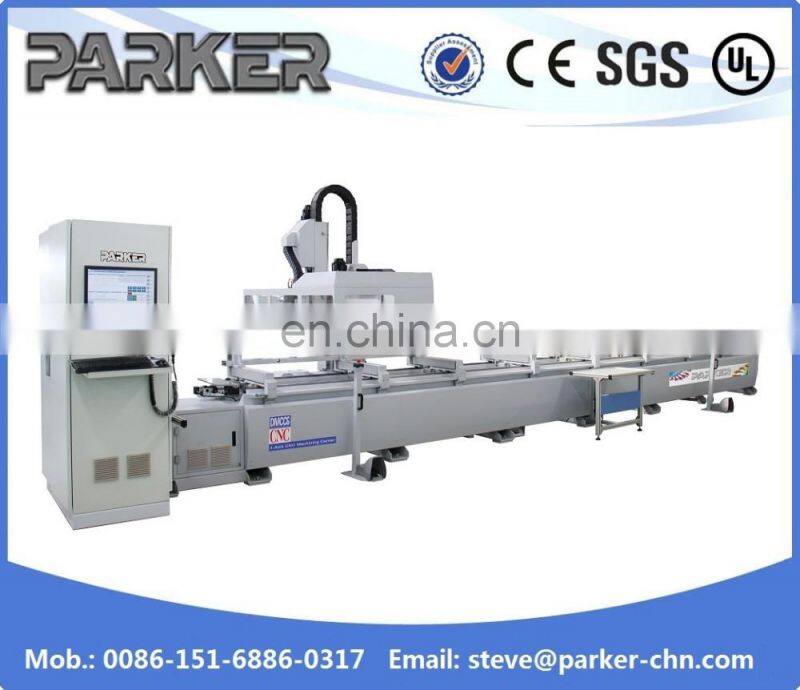

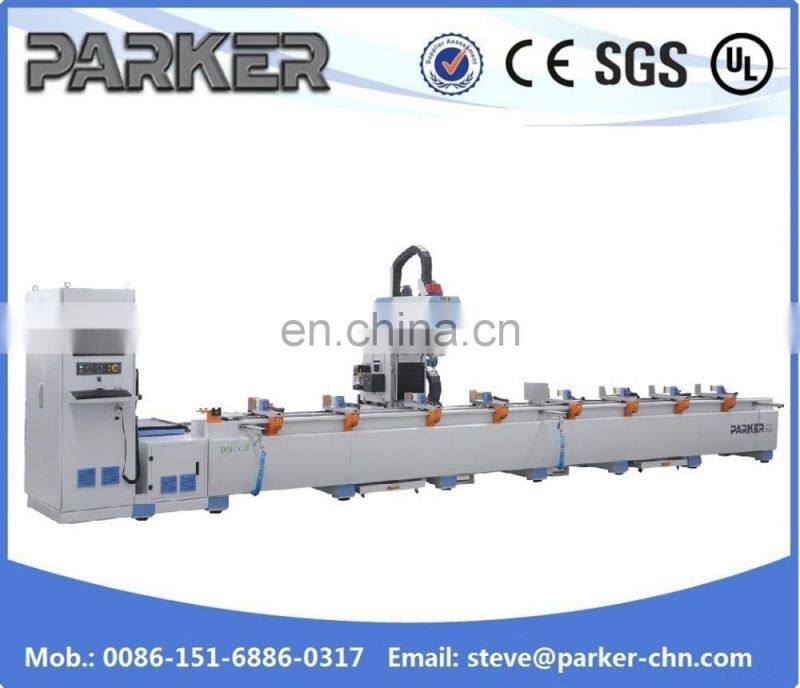

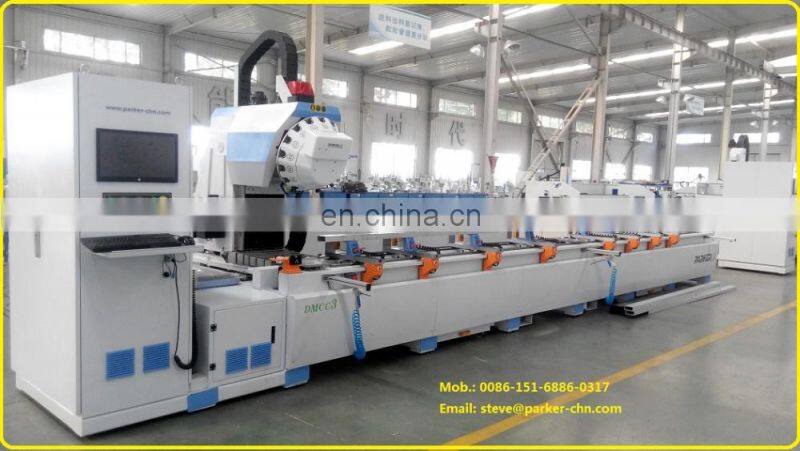

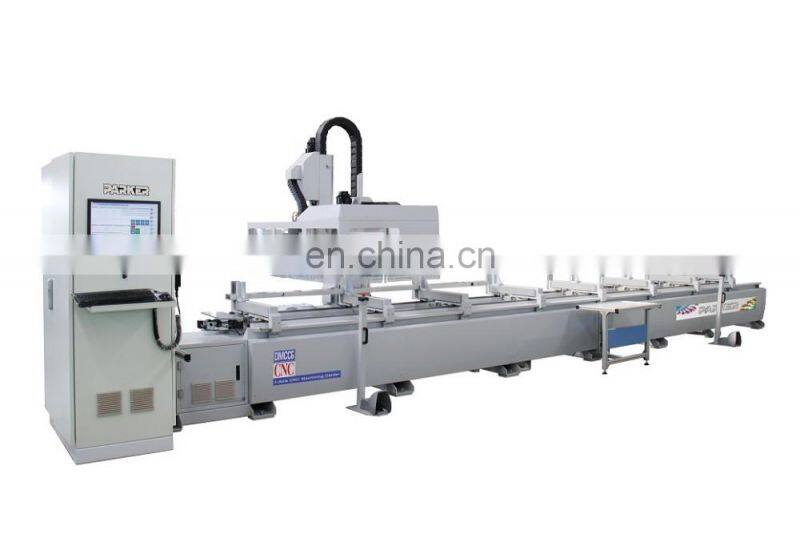

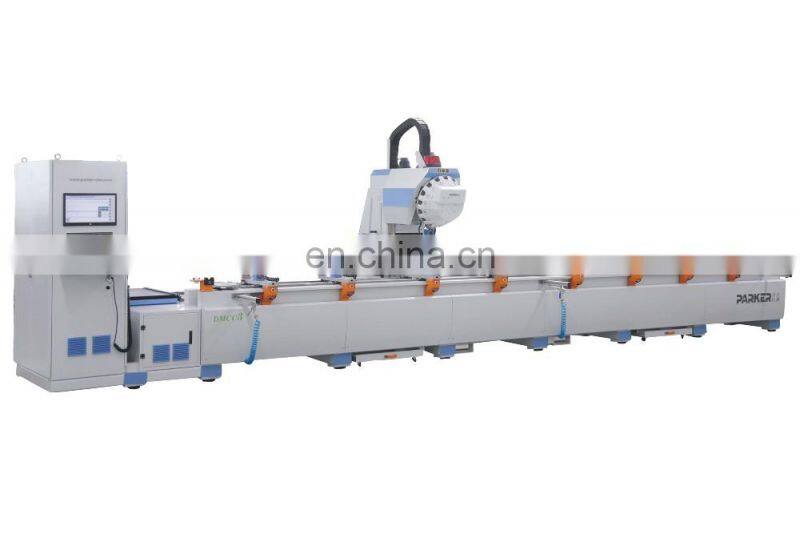

CNC Three Axis Machining Center for Curtain Wall

Four axis Machining Center /Three axis Machining Center/CNC MACHINING CENTER/CURTAIN WALL MAKING MACHINE/FACADE MAKING MACHINE/MACHINING CENTER/CNC drilling and milling machine

Model: DMCC3

Features:

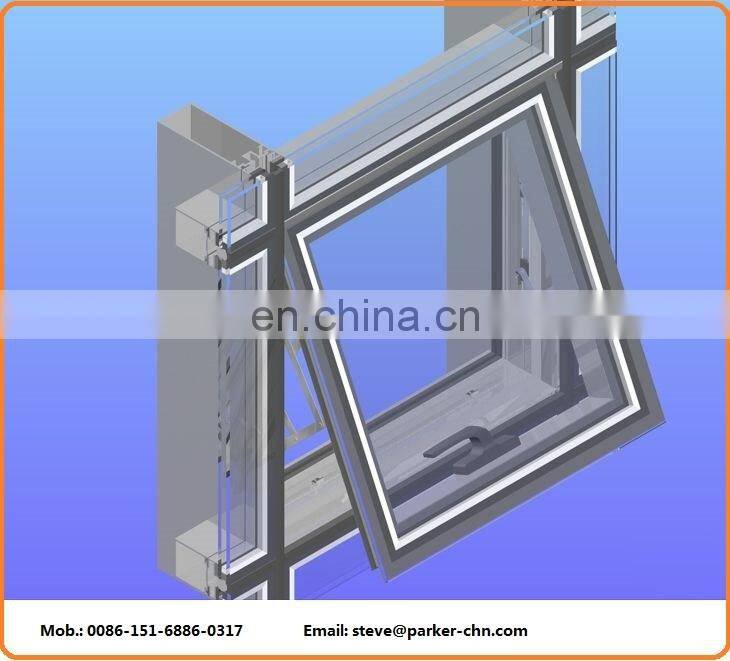

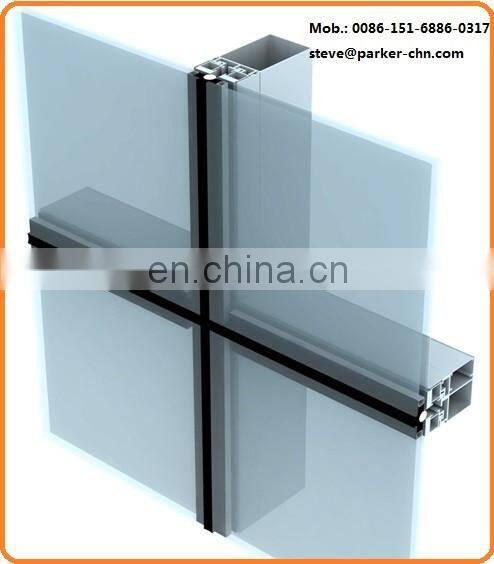

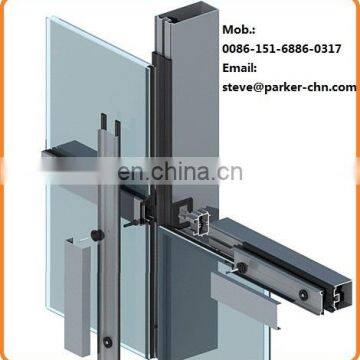

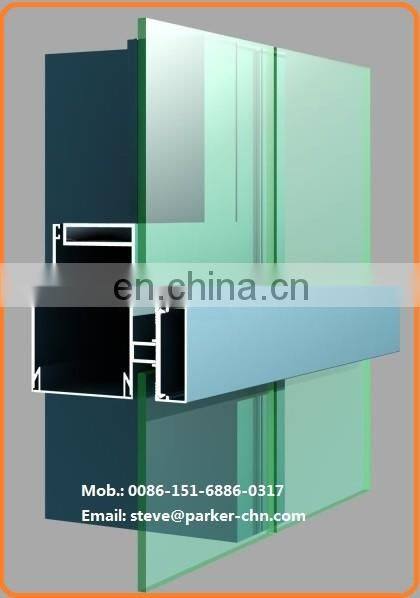

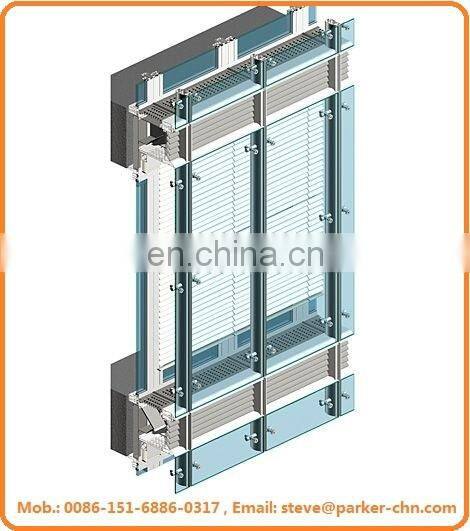

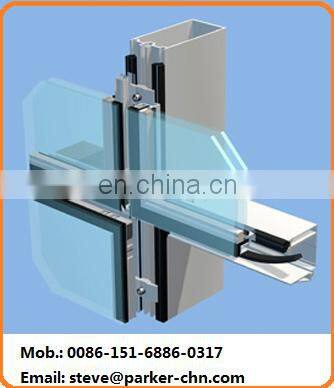

• ØIt is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.
• ØThe full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

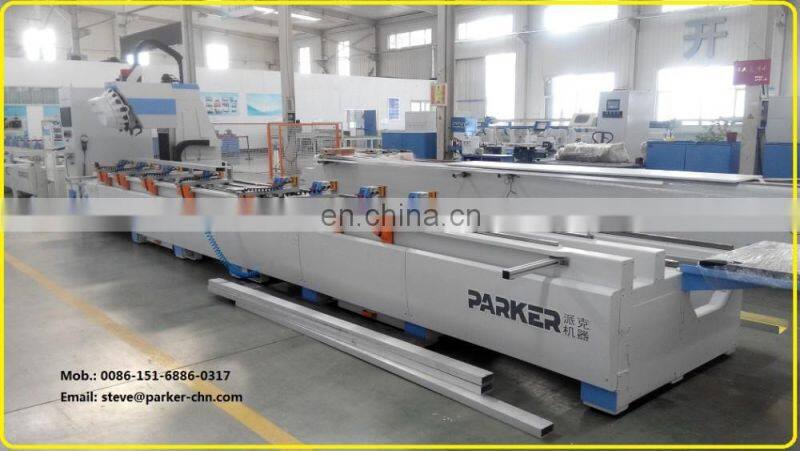

• ØDesigned the moving work table for material, and moving box.
• ØThe list of processing about drilling, milling, tapping into one clamping.
• ØThe body is welding by steel tube with high quality and be processed by scratch push, so it is stability and strong steel.
• ØBall screw from ABBA, HIWIN from Taiwan, UUC rack from Taiwan keep high precision.

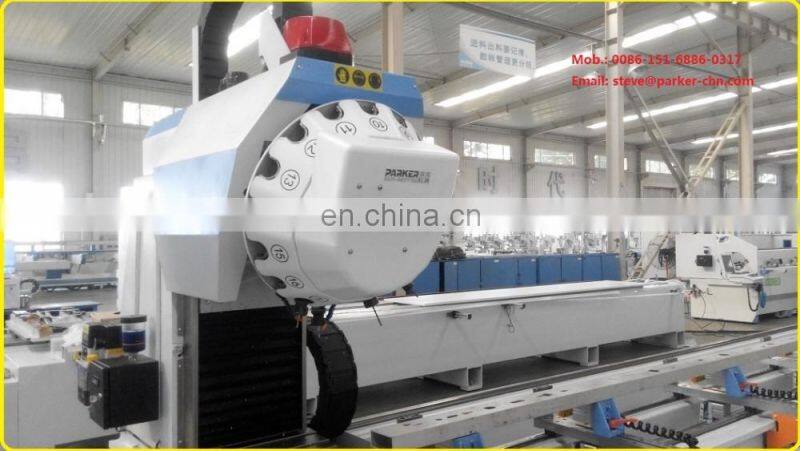

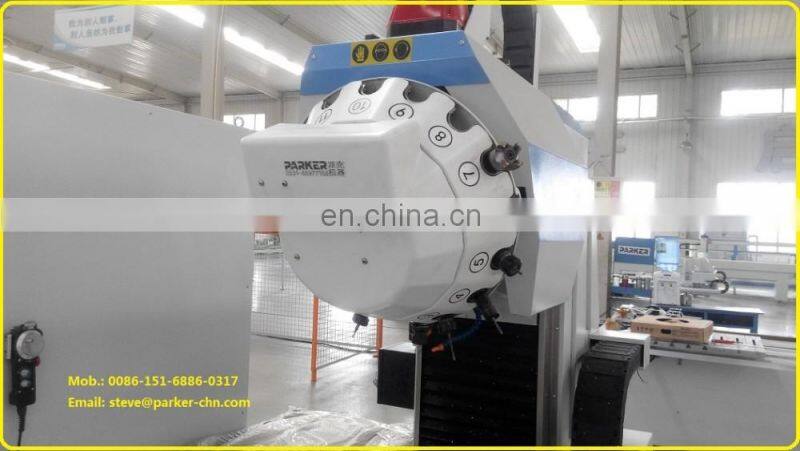

• ØUsing large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.
• ØDouble location design, the machine goes on working when feeding profiles interactively, which makes the equipment improve efficiency greatly.
• ØPower of continuing function, the machine can go on processing when the power is get through. Linked speed(processing, interpolation) can get to 1000mm/min
• ØIt is equipped with lock tool apron, which makes it convenient to change the cutters.
• ØAll the components adopt batch-type feed system, central lubrication; the cutters adopt freezing spray system to cooling, which can improve the life and working depth of work piece.
• ØThe cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.
• ØUse plant oil to spray, lubricate once half on hour.
• ØThere is safe photo electricity protection screen in the front of the machine, equipped with the location of machine head detection, the location of operators detection to insure the safe of operators.

Parameter:
