Four Axis Machining Center, CNC Drilling And Milling Machining Center (DMCC6)

Model: DMCC6

Features:

1.The machine is suitable for processing installation holes, water slot,  shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.

2. It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°

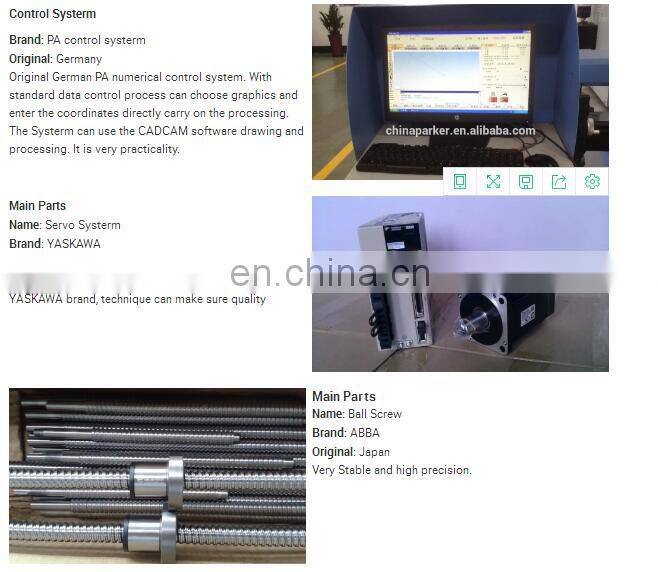

3.It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.

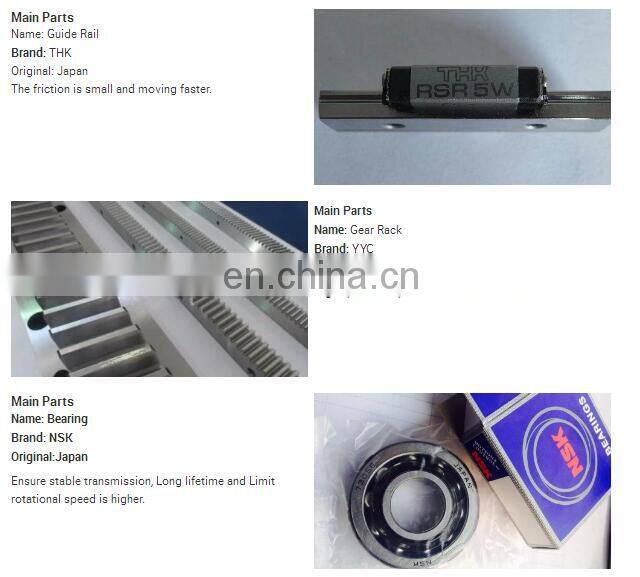

4. It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.

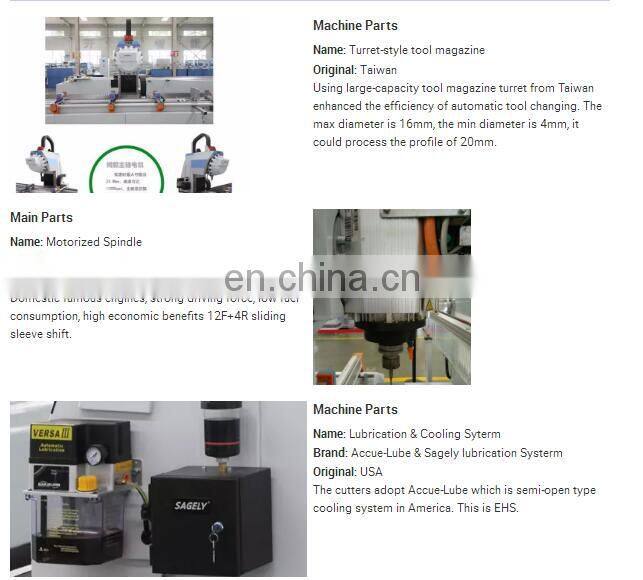

5. Equipped Six cutters positions, the cutter can change quickly and automatically .

6. The semi-closed guard improved security greatly.

7. Clamping device position can be optimized  and  put to right position automatically and freely.

Technique Parameter:

 X- axis:7600mm
  Y- axis:960mm
  Z- axis:610mm
 X- axis speed:0~90m/min
 Y- axis speed:0~80m/min
 Z- axis speed:0~75m/min
Main shaft rotary range:  - 90º ~ 0º ~ + 90º
 Tool magazine:6 different cutters, change cutter automatically

 Max cutter length: 165mm
 Air Pressure:0.5-0.8Mpa
 Voltage:380V/50Hz
 Total power:10kw
 Number of clamping device: 6~8
Lubrication and cooling : Lubricating automatically, spray cooling
 Processing size range(WxHxL):550×300×7300mm
Overall dimension:10100×2300×2600mm

1. One year warranty time, we can repair and replace parts for free in one year.

2. Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.

3. Life time free maintenance service.

4. Free training course at our factory with professional engineers.
5. We provide the consumable parts at agent price when you need replacement.

6. Engineer available overseas.
