Product Details
| Brand Name | FEIDA |
Product Description
different dies manual hole punching machine for punch Aluminum window and door
Product Application manual hole punching machine

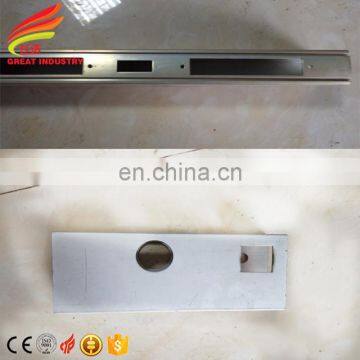

--It is special for punching the aluminum profiles.
--It can complete punching different specification of aluminum profiles through the different punching dies.
--Each die of custom-made can complete several punching process.
--It can complete all punching system of KFC Door, including rotating shaft hole(general), screw adjusting hole of rotating
shaft, ground pin hole, lock hole, cover hole of lock bolt and lock core hole.
Main Specification manual hole punching machine
1) Input Power Source--------------------------------------------------------------380V/50HZ
2) Total Power--------------------------------------------------------------------------3 kW
3) Oil Press------------------------------------------------------------------------------12MPa
4) Oil Capacity--------------------------------------------------------------------------72L
5) Stamping Nominal Pressure-----------------------------------------------------8kN
6) Punching Stroke------------------------------------------------------------------10-60mm
7)Travel Times----------------------------------------------------------------------20 Times/Min
8) Closure Height--------------------------------------------------------------------140~250mm
9) Dimension-------------------------------------------------------------------------1330x500x1580mm
10) Weight------------------------------------------------------------------------------700Kg
Drilling Precision manual hole punching machine
1) Depending upon mould precision.
| Size | 1330(L) × 500 (W) × 1580(H) |
| Weight | 700 KGS |
| Packing details | Aluminum foil vacuumed/ manual hole punching machine |
