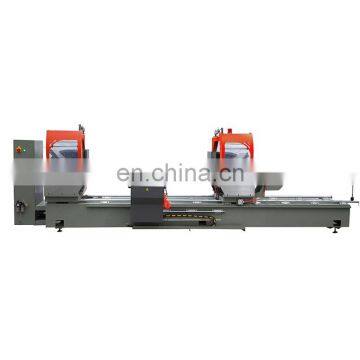

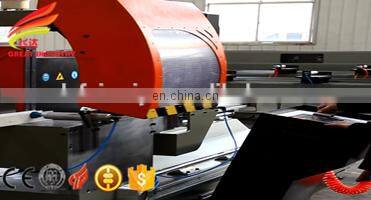

Chinese Manufacturer for Processing Window and Door Aluminum Frame Cutting Machine
- T/T Credit Card
You May Like
-
Compound Mitre Saw Aluminum Window Machine Double Head Miter Saw
-
Aluminum Cutting Saw Blade Upvc Window and Door Machine Price
-
Double Head Mitre Saw Window Aluminium Profile Cutting Machine Italy
-
Automatic Window Corner Connector Saw Aluminium Door Cutting Machine
-
MANUFACTURER Manual Single Head Aluminium Profile Cutting Machine
-
Cnc 22.54590 Degree Saw Small Aluminum Extrusion Machine for Window Door Profiles
Product Details
| Brand Name | FEIDA |
Product Description

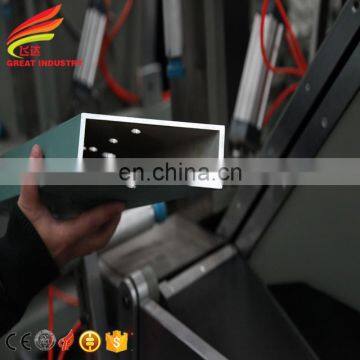

- Applying to sawing sorts of aluminum profiles for doors/windows and curtain walls by cutting at angles 22.5º, 45º and
90º.
- High quality servo motors are adopted. LCD touching display screen for operating control, through which the cutting
lengths and angles are inputted. The automatic positioning for profile’s length is available.
- Saw-straight-outgoing mode, connected parallelly with hydro-pneumatic control system, so as to ensure the feeding
stability of the saw blades at stepless speed.

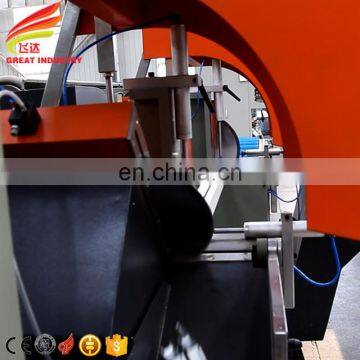

- The two sets of clamping cylinders clamp the profiles from two different directions horizontally and vertically, that makes
the clamps more reliable.
- Hard alloy blade, automatic cooling spray device.
- Attached holding rack makes clamping easier.

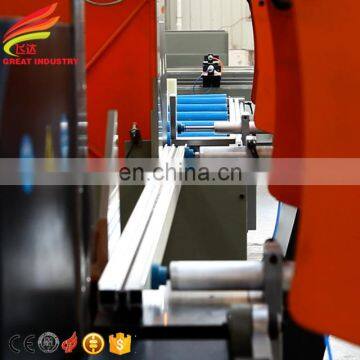

- Automatic feeding and cutting.
Main Specification aluminum frame cutting machine
1) Cutting length: 370mm - 4600mm
2) Profiles adaptable: 140(145)×270 (260)mm (width x height)
3) Blade size: Φ500 x 4 x 30
4) Power of main motors: 2.2kw x 2
5) Rotational speed of spindle: 2800 rpm
6) Pneumatic working pressure: 0.5 – 0.8 MPa
7) Air consumption: 0.2 cubic m/min.
8) Dimensions: 6000 x 1750 x 1700mm
9) Weight: 1500 kg
Cutting Precision aluminum frame cutting machine
1) Repetition on length: ± 0.1mm
2) Repetition on angle: ± 5’
3) Verticality of cutting surface: 0.1mm (100x100mm section)
4) Planeness of cutting surface: 0.1mm (100x100mm section)
5) Roughness of cutting surface: Ra12.5 µm
| Size | 6000(L) × 1700 (W) × 1750(H) |
| Weight | 1500 KGS |
| Packing details | Aluminum foil vacuumed / aluminum frame cutting machine |
