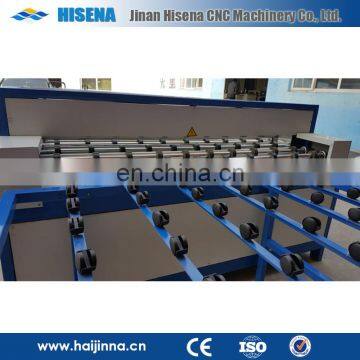

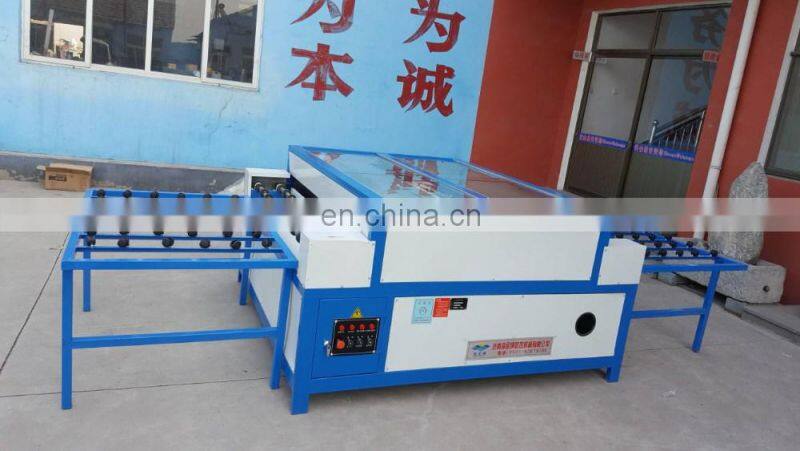

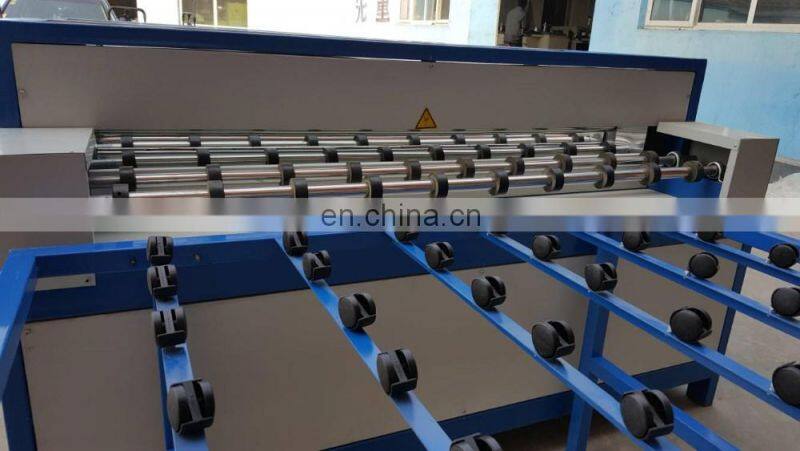

BXW1600C Glass Cleaning and Drying Machine Insulating Glass Manufacturing Machine
- qingdao port
- T/T Credit Card
You May Like
-
Automatic Glass Cutting Machine CNC Glass Cutting Machine
-
CNC glass cutting machine Insulating glass making machinery
-
HLB2000P/1800P Vertical insulating glass production line (Inside assembly type) window machine upvc machinery
-
JT02 aluminum bar coating semi automatic PLC control window glass processing machine
-
ST05 insulated window production line two component glass sealing coating machine
-
YTJ-1600 double glazing glass cleaning and heat pressing glass processing machine
Product Details
| Brand Name | Hisena | Model Number | BXW1600C |
Product Description
Main Technical Parameters
| Brand | Hisena |
| Power Supply | 380v/50hz |
| Total Power | 11.2kw |
| Transmit Speed | 1.2~5m/min |
| Max.insulating glass thickness | 12mm |
| Max. glass size | 2500*3000mm |
| Min. glass size | 350*350mm |
| Overall dimension | 2200*1900*1200mm |
| Weight | 1200kg |
Features of glass washing machine
Rinsing sector and water flow system adopt rustproof and rot-proof material ,which can bear roughly usage.
The center sector divides into rinsing room,water-absorbing room and dry room.It has excellent effect on rinsing and drying.
Drying sector adopt sponge stick to absorb water,and use hot wind to dry it has wonderful effect on dryness.
The transmission system of rinsing adopt unlimited speed adjustment to realize high efficiency application
Each product will be carefully packed with plastic film package,to make sure it will be arrived safety.
If choose wooden package,After inspection the goods are packed in plastic film package and then carefully packed in wooden carton.
Jinan Hisena CNC Machinery Co., Ltd.has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 1 years (12 months), the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
