HLB1600P (OUTer Film)1600mm Automatic Glazing Glass Production Line Aluminum Curtain Wall Machine
US$ 40,000 - 40,000
/ Set
1 Set(Min. Order)
- Qingdao Port
- T/T Credit Card
You May Like
-
DKMT-CNC Two Component Coating Vertical Sealant Production Line Aluminum Curtain Wall Machine
-
HFG-01aluminum Bar Filling Desiccant Molecular Sieve Glazing Glass Window Making Machine
-
YTJ-1600 Double Glazing Glass Cleaning and Heat Pressing Window Making Machine
-
High Quality Butyl Rubber Coating Machine for Double Glass
-
HFG-01aluminum Bar Filling Desiccant Molecular Sieve Glazing Glass Processing Machine
-
RYB-1600 Heat Press Double Glazing Glass Processing Machine
Product Details
| Brand Name | Hisena | Model Number | HLB1600P(outer) |
Product Description

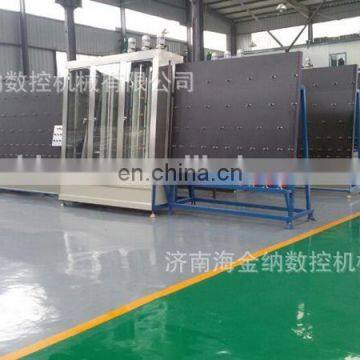

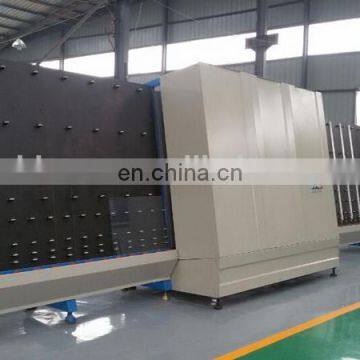

HLB1600P (OUT)1600mm automatic washing drying assembly aluminum bar all in one insulating Hollow glass production line
Product Description
Main Features:
1.Rinsing sector and water flow system adopt rustproof and rot-proof material ,which can bear roughly usage/
1.Rinsing sector and water flow system adopt rustproof and rot-proof material ,which can bear roughly usage/
2.The rinsing and dry sector with floating design is suitable for sinsing 3-12mm glasses.
3.Full distance automatic changable frequency speed adjustment ,which can save woek waiting time and improve production effciency.
4.The glasses can be rinsed continuously,the machine can disdinguish the first and the second glass automatically,waiting time is no.
5Adopt the imported low -voltage electric apparatus component , sensor ,the equipment is automatically controlled by PLC for thewhole operation .
6.This machine is inhigh efficiency,it has storage room for little piece of glass.Washing the glass can be imported in succession.
7.The machine can produce extend ,big small ,unique shape insulating glass.
Main Technique Parameter:
| Model | HLB1800P | HLB1600P |
| Voltage | 380v 50Hz | 380V 50HZ |
| Total power | 22kw | 20kw |
| Work speed | 2-15m/min | 2-15m/min |
| Min.glass size | 500×500mm | 400×350mm |
| Max.glass size | 1800×2500mm | 1600×2200mm |
| Max. insulating glass thickness | 40mm | 40mm |
| Dimension | 19000×2200×3000mm | 17500×2200×2800mm |
Packaging & Shipping
We will follow the requirements of customers to arrange the packing and shipping .
Our Services
We can provide trainings to your workers .
IF the machine failure,we can send you the accessery by mail for free in the term of service or we can send our engineers .
Company Information
HAIJINNA company is very expacted to do business with anyone who needs our products.
If you have any question about our products , contact us .
Contact person : Mr Ray Meng
Cellphone:0086+18853160312
