4t Tire Type Single Steel Drum Static Road Roller
- Shanghai/Qingdaoo
- T/T Credit Card
You May Like
-
Mini New Motor Grader 165HP China Motor Grader GR165
-
China Famous Brand Mini New Motor Grader GR135
-
Best Price New Motor Grader GR135
-
Most Popular 180HP Motor Grader With Good Blades and Ripper
-
Concrete Paver Machine RP601 Asphalt Concrete Paver
-
Famous Brand RP903 Model Asphalt Concrete Paver for Sale
Product Details
| Brand Name | NEWINDU | Model Number | XS143J | |
| Type | Single Drum Roller | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 14000kg | |
| Dimension(L*W*H) | 6010x2340x3200 mm | Condition | New | |
| Power(W) | 922kw | Grade Ability | 30% | |
| Travel Speed | 0~10.5 km/h | Static Linear Pressure | 322N/cm |
Product Description

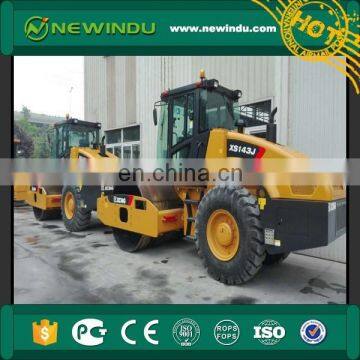

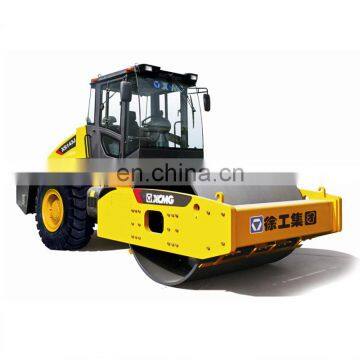

4t Tire Type Single Steel Drum Static Road Roller
Aring Zhou
Email: aring at
Wechat/Whatsapp/Mobile:+86 15855426352
Skype: zyy1520724641 at
XS143J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
1) Spacious and bright cab brings wide view and comfort
2) Simple operation: the humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
3) Reliable and durable hydraulic system
4) Energy-saving and environmental friendly power
5) High efficient and reliable vibratory compacting system
6) Optional configuration: the integral convex block drum, split convex block drum, and the cab with air conditioning.
7) Convenient maintenance
| Model | XS143J | |
| Operating Weight | kg | 14000 |
| Weight on front drum | kg | 7000 |
| Static linear pressure | N.cm | 322 |
| Speed I | km/h | 2.7 |
| Speed II | km/h | 4.8 |
| Speed III | km/h | 10.5 |
| Gradeability | % | 30 |
| Min. external turning radius | mm | 6800 |
| Steering angle | ° | ±30 |
| Oscillating angle | ° | ±11 |
| Vibration frequency | Hz | 28 |
| Nominal amplitude(high/low) | mm | 1.9/0.95 |
| Excitation force(high/low) | kN | 274/137 |
| Engine model | SC5D125G2B1 | |
| Max. power | KW | 92 |
| Engine oil consumption | g/kw.h | 230 |
| Hydraulic oil tank capacity | L | 170 |
| Fuel tank capacity | L | 180 |
