Road Construction Machine New Asphalt Concrete Pavers

FOB Price

US$ 50,000 - 51,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newindu	Place of Origin	Jiangsu, China
Certification	ISO
Warranty	1 Year	Weight	450-700kg
Dimension(LWH)	640025803830mm	Production Capacity	0-3.6 M/min
Condition	New	Power(W)	100kw
Max. Paving Thickness	150mm

Product Description

Road Construction Machine New Asphalt Concrete Pavers

Main Parameters

Item	RP601	Unit
Basic Paving Width	2.5	m
Max. Paving Width	6	m
Max. Paving Thickness	150	mm
Paving Speed	0~10	m/min
Travel Speed	0~3.3	km/h
Theoretically Productivity	300	t/h
Hopper Capacity	13	t
Gradeability	20	%
Flatness	3	mm/3m
Error of Lateral Slope	±0.03	%
Adjusting Range of Camber	0~+13	%
Diesel Engine Model	SC5D136G2B1/YC4A1252
Diesel Engine Power	100/92	kw
Diese Engine Speed	2400/2200	r/min
Total Weight	17.4	t
Overall Dimension	640025803830	mm
Tamper Revolution Speed	0~1500	r/min
Screed Heating	Air heating
Conveyor and Transfer Material-Level Control Way	Ultrasonic sensing automatic control
Automatic Leveling Control Way	Analog control

Product Description

RP601 multifunctional paver adopts multiple advanced technologies like micro-electronic control, ultrasonic sensor, automatic electronic leveling, single vibrator and gas heating, etc. And the key matching components adopt imported products, so it achieves the technical level of similar imported products in product quality and reliability. The paving width ranges from 2.5m to 6m, which can be steplessly adjusted. The ergonomical design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio, and it is applicable to the asphalt concrete paving for municipal construction and highways of various grades.

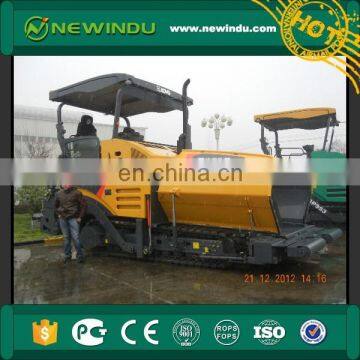

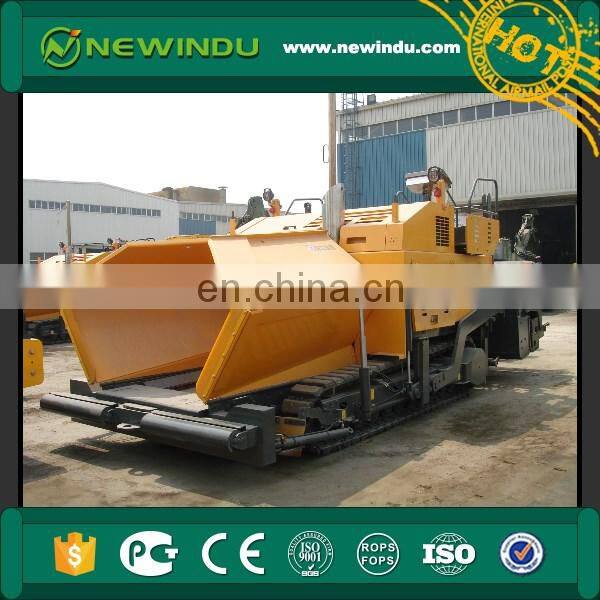

Product Image
