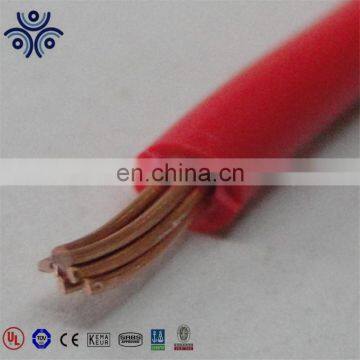

China Hot Sale Single Core H07V-K (NYAF) PVC Flexible Cable 450/750V Electrical Wire
- Tianjin port Shanghai port Qingdao port or others
- T/T Credit Card
You May Like
-
High Quality TPS CABLE TWIN+EARTH FLAT WIRE 2X2.5mm2+E
-
450/750V TPS Cable Cooper Conductor TWIN+EARTH FLAT WIRE 2X2.5mm2+E made in china
-
High Quality Copper Wire Cable 2x10mm2 PVC Insulated Flat Wire Twin Electric Wire 10mm2
-
H03VH-H RVB Parallel Black and Red Twin PVC Flexible Power Cord Cable
-
Best price pvc insulated flexible copper DC cable 35 50 70 mm sq
-
CE approved 450/750v electric cooper one core wire
Product Details
| Brand Name | RNE DA | Place of Origin | Hebei, China | |
| Model Number | RV | Type | Low Voltage | |
| Insulation Material | PVC | |||
| Conductor Material | Copper |
Product Description
Top Ten Cable Manufacturer in China
High Quality and Reasonable Price
Multi Years Export Experience
Products Certificates:UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV
System certificates: ISO9001,ISO14001,OHSAS18001
China Hot Sale Single Core H07V-K (NYAF) PVC Flexible Cable 450/750V Electrical Wire
Single core PVC insulated electric flexible wire :
Conductor:high conductivity of copper class 6
Insulated material:PVC
Rated Voltage:450/750V
Standard:227IEC02, 227IEC06
Admissible long time working temperature of conductors:70 degrees.
Brief introduction
The PVC Insulated Wire belong to series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V(UO/U).
Standard 60227IEC02,GB5023.3-97
Rated voltage 300/500V or 450/750V
300/500V Nominal section 0.3-0.4-0.5-0.75-1.0MM2
450/750V Nominal section 1.5-2.5-4-6-10MM2
H07V-K Flexible copper PVC insulated electrical wires:
Rated voltage:450/750V
Conductor:high conductivity of flexible copper
Insulation:PVC(polyvinyl chloride)
Laying place and requirement: Mainly used at middle and light style moving electronics,home applicances,power and lighting and the places where flexible required.
The general characteristics of PVC insulated wire
1. Range of Application
PVC insulated wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2. Service Conditions
Long term working temperature of conductor:no more than 70degrees
3.Specification size and technical data
H07V-K 450V/750V RV
Nomina section (mm2) | Core structure No./dia(mm) | Max.dia(mm) | Reference weight(kg/km) |
1.5 | 30/0.25 | 3.5 | 21.4 |
2.5 | 49/0.25 | 4.2 | 54.5 |
4 | 56/0.2 | 4.8 | 51.8 |
6 | 84/0.3 | 6.4 | 74.1 |
10 | 84/0.4 | 8.0 | 113.9 |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
Products: XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable,locomotivevehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables.submersible oil pump cables, .)and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa,Congo, Middle East and Southeast Asia countries and so on.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
1. 22 years production experience and 13 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9. Stock available, Free sample
10.We can do that you expect
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5)What cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
(6). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
