Product Details
Brand Name | RNEDA | Place of Origin | Hebei, China | |
Model Number | PVC Coated Wire ,H05V-U,H07V-U,H07V-R | Type | Insulated | |
Insulation Material | PVC | |||
Product Description

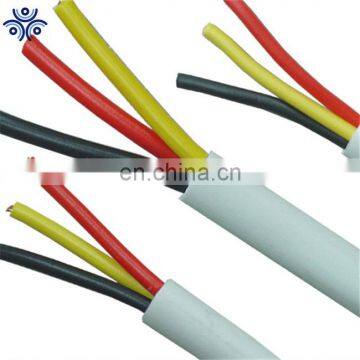

300/500V PVC-sheathed screened cables (N) YM (St) - J-O
Applications
Installation cable suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the cable is protected against direct sunlight).
Standard
HRN HD 21.4 S2
IEC 60227-4
DIN VDE 0250 part 204
Conductor:
bare copper conductor acc. to IEC 60228 / HD 383 / DIN VDE 0295
class 1: solid (RE construction)
class 2: multi wire stranded (RM construction)
Insulation:
PVC compound TI1 acc. to
DIN VDE 0281 part 1 / HD 21.1 S4
Filler: cores enveloped in non-vulcanized rubber or plastic compound
Sheath:PVC compound TM1 acc. to DIN VDE 0281 part 1 / HD 21.1 S4
sheath colour:
Core identification
Twin : Red and Black
3-core: Red, Yellow and Blue
4-core: Red, Yellow, Blue and Black
5-core: Red, Yellow, Blue, Black and Green
Technical data
Temperature range:
during installation:
+5 °C up to+70 °C
fixed installed: -30 °C up to+70 °C
at short circuit of max. 5 s: up to 160 °C
ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U = 300/500V
Test voltage: 2000V
Minimal inner bending radius: 6D
Behavior in fire: IEC 60332-1
Dimensions – number of cores x conductor cross-section | structer* | Construction of individual conductor | External diameter | Conductor resistance at 20 °C | Specific. el. resistance of insulation at 70 °C | Short circuit current 1s | Permited tensile load | Cable weight | Packing** |
nominal | min-max. | max. | min. | nominal | max. | cca | |||
mm² | n x mm | mm | Ω/km | MΩkm | kA | N | kg/km | ||
1 x 1,5 | RE | 1 x 1,38 | 5,2 - 6,2 | 12,10 | 0,0100 | 0,17 | 75 | 45 | CUT |
1 x 2,5 | RE | 1 x 1,78 | 5,8 - 6,8 | 7,41 | 0,0094 | 0,29 | 125 | 70 | CUT |
1 x 4 | RE | 1 x 2,26 | 6,4 - 7,6 | 4,61 | 0,0087 | 0,46 | 200 | 80 | CUT |
1 x 6 | RE | 1 x 2,70 | 6,8 - 8,2 | 3,08 | 0,0074 | 0,69 | 300 | 105 | CUT |
1 x 10 | RE | 1 x 3,5 | 8,0 - 9,4 | 1,83 | 0,0072 | 1,15 | 500 | 155 | CUT |
1 x 16 | RM | 7 x 1,70 | 9,4 - 11,0 | 1,15 | 0,0053 | 1,84 | 800 | 230 | CUT |
1 x 25 | RM | 7 x 2,13 | 12,2 - 13,3 | 0,73 | 0,0051 | 2,88 | 1250 | 325 | CUT |
2 x 1,5 | RE | 1 x 1,38 | 8,4 - 9,8 | 12,10 | 0,0100 | 0,17 | 150 | 115 | c.100 |
2 x 2,5 | RE | 1 x 1,78 | 9,6 - 11,0 | 7,41 | 0,0094 | 0,29 | 250 | 190 | c.100 |
2 x 4 | RE | 1 x 2,26 | 11,0 - 12,5 | 4,61 | 0,0087 | 0,46 | 400 | - | CUT |
3 x 1,5 | RE | 1 x 1,38 | 8,8 - 10,5 | 12,10 | 0,0100 | 0,17 | 225 | 135 | c.50, c.100 |
3 x 2,5 | RE | 1 x 1,78 | 10,0 - 11,5 | 7,41 | 0,0094 | 0,29 | 375 | 190 | c.100, B500 |
3 x 4 | RE | 1 x 2,26 | 11,5 - 13,0 | 4,61 | 0,0087 | 0,46 | 600 | 265 | CUT |
3 x 6 | RE | 1 x 2,70 | 12,0 - 15,0 | 3,08 | 0,0074 | 0,69 | 900 | 315 | CUT |
3 x 10 | RE | 1 x 3,5 | 16,0 - 18,0 | 1,83 | 0,0072 | 1,15 | 1500 | 465 | CUT |
4 x 1,5 | RE | 1 x 1,38 | 9,5 - 11,0 | 12,10 | 0,0100 | 0,17 | 300 | 160 | c.100 |
4 x 2,5 | RE | 1 x 1,78 | 11,0 - 12,5 | 7,41 | 0,0094 | 0,29 | 500 | 230 | c.100 |
4 x 4 | RE | 1 x 2,26 | 12,5 - 14,5 | 4,61 | 0,0087 | 0,46 | 800 | 330 | c.100, CUT |
4 x 6 | RE | 1 x 2,70 | 14,5 - 16,5 | 3,08 | 0,0074 | 0,69 | 1200 | 460 | c.50, CUT |
4 x 10 | RE | 1 x 3,5 | 16,5 - 19,0 | 1,83 | 0,0072 | 1,15 | 2000 | 690 | CUT |
4 x 16 | RM | 7 x 1,70 | 20,5 - 23,5 | 1,15 | 0,0053 | 1,84 | 3200 | 1090 | CUT |
4 x 25 | RM | 7 x 2,13 | 25,0 - 28,5 | 0,73 | 0,0051 | 2,88 | 5000 | 1640 | CUT |
4 x 35 | RM | 7 x 2,52 | 27,5 - 32,0 | 0,52 | 0,0045 | 4,02 | 7000 | 2090 | CUT |
5 x 1,5 | RE | 1 x 1,38 | 9,9 - 12,0 | 12,10 | 0,0100 | 0,17 | 375 | 190 | c.100, dr500 |
5 x 2,5 | RE | 1 x 1,78 | 11,5 - 13,5 | 7,41 | 0,0094 | 0,29 | 625 | 270 | c.100, dr500 |
5 x 4 | RE | 1 x 2,26 | 14,0 - 16,5 | 4,61 | 0,0087 | 0,46 | 1000 | 410 | c.100, CUT |
5 x 6 | RE | 1 x 2,70 | 15,5 - 18,0 | 3,08 | 0,0074 | 0,69 | 1500 | 540 | c.50, CUT |
5 x 10 | RE | 1 x 3,5 | 18,0 - 21,0 | 1,83 | 0,0072 | 1,15 | 2500 | 850 | CUT |
5 x 10 | RM | 7 x 1,35 | 18,5 - 21,5 | 1,83 | 0,0065 | 1,15 | 2500 | 870 | CUT |
5 x 16 | RM | 7 x 1,70 | 22,5 - 26,0 | 1,15 | 0,0053 | 1,84 | 4000 | 1350 | CUT |
5 x 25 | RM | 7 x 2,13 | 27,5 - 31,5 | 0,73 | 0,0051 | 2,88 | 6250 | 1990 | CUT |
7 x 1,5 | RE | 1 x 1,38 | 11,0 - 13,0 | 12,10 | 0,0100 | 0,17 | 525 | 235 | c.100, CUT |
10 x 1,5 | RE | 1 x 1,38 | 13,9 - 15,6 | 12,10 | 0,0100 | 0,17 | 750 | 330 | CUT |
12 x 1,5 | RE | 1 x 1,38 | 14,2 - 16,1 | 12,10 | 0,0100 | 0,17 | 900 | 400 | CUT |
7 x 2,5 | RE | 1 x 1,78 | 12,7 -14,3 | 7,41 | 0,0094 | 0,29 | 875 | 350 | CUT |
*) Construction: RE = single wire round conductor RM = multi wire round conductor
**) Packing: c.50 = coil 50 m, c.100 = coil 100 m, d.500 = drum 500 m
We have got the certificate of UL,CE,KEMA,TUV,Lloyd and“National Industrial Production License”, “Certificate of Recommended Enterprises and Products for National Grid”, “Adopting International Standard Certificate”, and “High-Tech Enterprise Certificate”, “Certificate of High Quality Products”, “Certificate of Scientific and Technological Achievements”, “Qualified Supplier Certificate”, “China Classification Society Certificate of Works Approval”, “Det Norske Veritas Type Approval Certificate”, “Railway Product Certificate”, “Safety Certificate of Approval for Mining Products”, “National Mandatory Product Certification”, “Certificate for China Compulsary Products Certification” and “Practical New-Type Patent Certificate”.
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993.
Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Workshop
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
